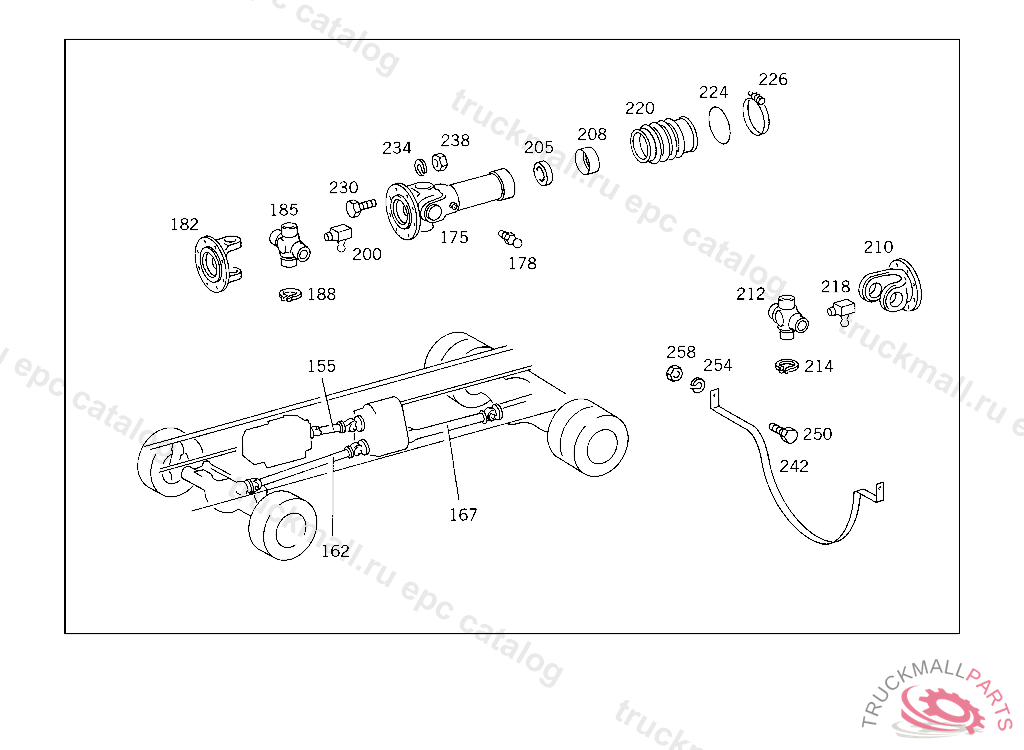

Поз.
Артикул
Описание
175
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
178
GREASE NIPPLE INTERMEDIATE LEVER
182
DRIVE FLANGE
185
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
185
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
185
UNIVERSAL JOINT CROSS , Replaced By: A3454107031
188
SNAP RING2.500 MM
188
SNAP RING2.750 MM
188
SNAP RING2.550 MM
188
SNAP RING2.725 MM
188
SNAP RING2.650 MM
188
SNAP RING2.750 MM
188
SNAP RING2.650 MM
188
SNAP RING2.700 MM
188
SNAP RING , Replaced By: A3449948135
188
SNAP RING , Replaced By: A3449948035
188
SNAP RING , Replaced By: A3449947935
188
SNAP RING , Replaced By: A3449947835
188
SNAP RING , Replaced By: A3449947735
188
SNAP RING , Replaced By: A3449947635
188
SNAP RING , Replaced By: A3449947535
188
SNAP RING , Replaced By: A3449947435
188
SNAP RING , Replaced By: A3449947335
188
SNAP RING , Replaced By: A3449947235
188
SNAP RING , Replaced By: A3449947135
188
SNAP RING2.675 MM
188
SNAP RING2.700 MM
188
SNAP RING2.600 MM
188
SNAP RING2.525 MM
188
SNAP RING2.500 MM
188
SNAP RING2.550 MM
188
SNAP RING2.625 MM
188
SNAP RING2.575 MM
188
SNAP RING2.600 MM
200
GREASE NIPPLE
200
GREASE NIPPLE
205
SEAL RING , PROPELLER SHAFT WITH BOOT
208
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
210
DRIVE FLANGE
212
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
212
UNIVERSAL JOINT CROSS , Replaced By: A3454107031
212
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
214
SNAP RING2.550 MM
214
SNAP RING2.750 MM
214
SNAP RING2.725 MM
214
SNAP RING2.650 MM
214
SNAP RING2.750 MM
214
SNAP RING2.500 MM
214
SNAP RING2.700 MM
214
SNAP RING2.650 MM
214
SNAP RING , Replaced By: A3449948135
214
SNAP RING , Replaced By: A3449948035
214
SNAP RING , Replaced By: A3449947935
214
SNAP RING , Replaced By: A3449947835
214
SNAP RING , Replaced By: A3449947735
214
SNAP RING , Replaced By: A3449947635
214
SNAP RING , Replaced By: A3449947535
214
SNAP RING , Replaced By: A3449947435
214
SNAP RING , Replaced By: A3449947335
214
SNAP RING , Replaced By: A3449947235
214
SNAP RING , Replaced By: A3449947135
214
SNAP RING2.675 MM
214
SNAP RING2.700 MM
214
SNAP RING2.600 MM
214
SNAP RING2.625 MM
214
SNAP RING2.575 MM
214
SNAP RING2.600 MM
214
SNAP RING2.550 MM
214
SNAP RING2.500 MM
214
SNAP RING2.525 MM
218
GREASE NIPPLE
218
GREASE NIPPLE
220
BOOT
220
BOOT , Replaced By: A3454107280
220
BOOT REAR PROPELLER SHAFT
224
WIRE RING , WITH BOOT
226
LOOM TIE. CLAMP
230
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
234
LOCK WASHER , Replaced By: N912004010102
238
NUT , Replaced By: N910113010003
242
REBOUND STRAP
242
250
SCREW , Replaced By: N304017010040
254
LOCK WASHER , Replaced By: N912004010102
258
NUT , Replaced By: N910113010003
999
INTERMEDIATE BEARING REPAIR KIT
