Поз.
Артикул
Описание

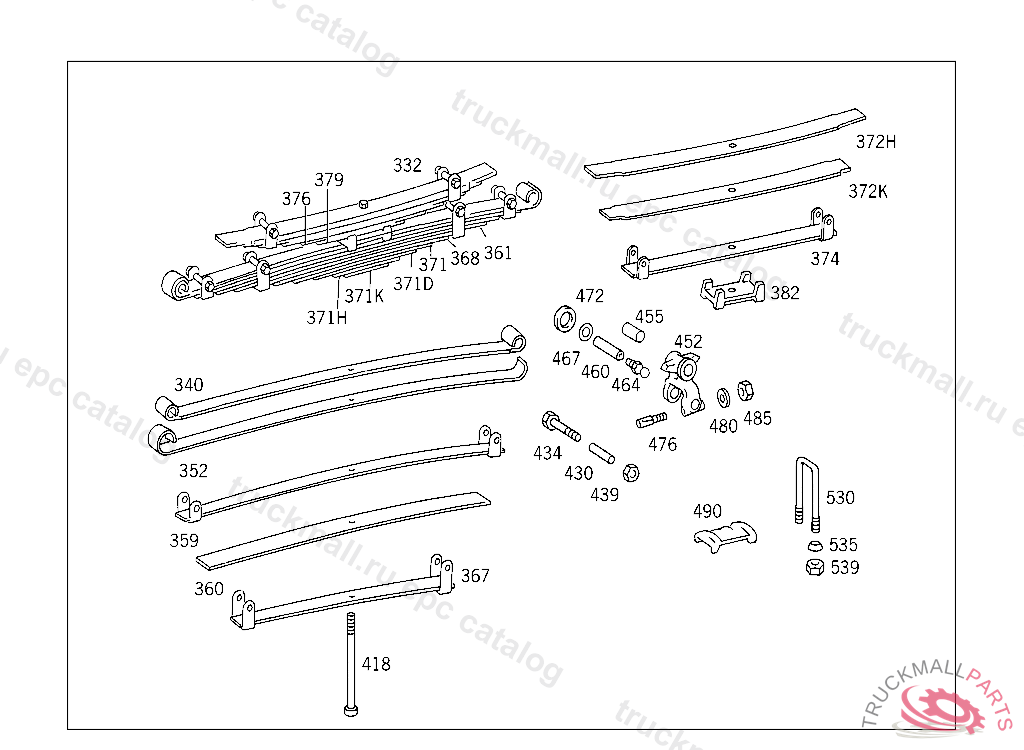

332
REAR SPRING WITH HELPER SPRING,249605
340
SPRING LEAFNO.1,249605
340
SPRING LEAFNO.1,249604
352
SPRING LEAFNO.2,249605
352
SPRING LEAFNO.2,249604
359
SPRING LEAFNO.3,253532
359
SPRING LEAFNO.3,249604
360
SPRING LEAFNO.4,249605
360
SPRING LEAFNO.4,249604
361
SPRING LEAFNO.5,253532
361
SPRING LEAFNO.5,249604
367
SPRING LEAFNO.6,249605
367
SPRING LEAFNO.6,249604
368
SPRING LEAFNO.7,249605
368
SPRING LEAFNO.7,249604
371
SPRING LEAFNO.8,249605
371
SPRING LEAFNO.8,249604
376
SPRING LEAFNO.4,249605
376
SPRING LEAFNO.4,249604
379
SPRING LEAFNO.5,253532
379
SPRING LEAFNO.5,249604
382
SPACER
418
SPRING BOLT LEAF SPRING M 12X245MM
430
SPACER TUBE EXHAUST PIPE TO BRACKET
430
SPACER TUBE , Replaced By: A3140720253
434
SCREW
439
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
452
SHACKLE REAR SPRING SUSPENSION
455
BUSHING
455
BUSHING
460
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
460
SHACKLE PIN , Replaced By: A3855860232
464
GREASE NIPPLE PROTECTIVE TUBE
467
WASHER AS REQUIRED 4.2 MM
467
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
467
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
467
WASHER AS REQUIRED 4.0 MM
472
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
476
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
480
WASHER GROUND CABLE
485
NUT BRACKET TO SIDE MEMBER,XB209706
490
PLATE , Replaced By: A6953257031
490
SPRING CLAMPING PLATE , Replaced By: A3833250031
490
SPRING CLAMPING PLATE , Replaced By: A3833250031
490
SPRING CLAMPING PLATE , Replaced By: A3833250031
530
U-BOLT REAR SPRING TO REAR AXLE
535
WASHER FRONT SPRINGS TO FRONT AXLE
539
NUT SUPPORT TO SPARE WHEEL CARRIER
999
SPRING LEAFNO.9,249604
999
SPRING LEAFNO.10,249604
999
SPRING LEAFNO.11,249604
999
LOCK
999
SPRING LEAFNO.1,249604
999
SPRING LEAFNO.2,249604
999
SPRING LEAFNO.3,A 006846
999
HELPER SPRING , Replaced By: A3443200010
999
SPRING LEAFNO.9,249605
999
SPRING LEAFNO.10,249605
999
SPRING LEAFNO.11,249605
999
SPRING LEAFNO.1,249605
999
SPRING LEAFNO.2,249605
999
COTTER PIN STRAP TO SUPPORT
999
COTTER PIN COUPLING FLANGE TO P.T.O.
999
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET
999
NUT , 030,032,033,040,041 FROM CHASSIS 488608, 132,133,140,141 FROM CHASSIS 522569
999
NUT , Replaced By: N913004020003
