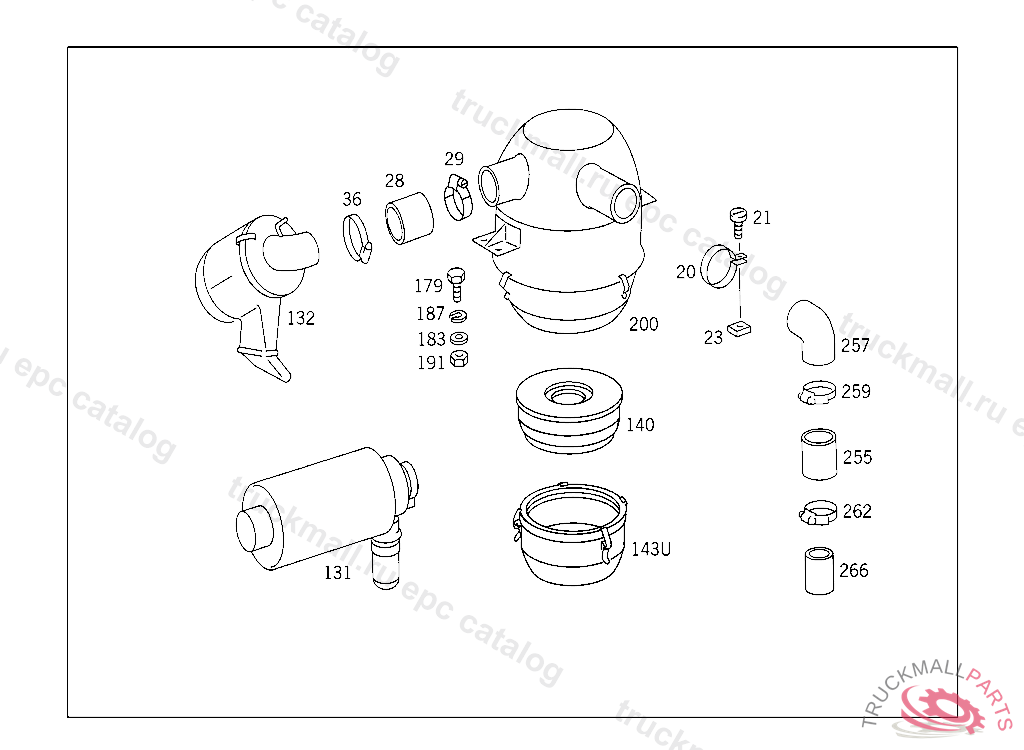

Поз.
Артикул
Описание
20
CLAMP ELBOW TO COVER, 032,033,040,041,132,133,140,141 FROM CAB 1500001
21
SCREW CABLE CONNECTOR TO BRACKET
23
NUT ELBOW TO COVER, 032,033,040,041,132,133,140,141 FROM CAB 1500001
28
HOSE
36
LOOM TIE. CLAMP
131
AIR CLEANER OIL BATH, 032,033,040,041 UP TO CAB 1405102
132
AIR CLEANER , 032,033,040,041 FROM CAB 1405103 032,033,040,041 UP TO CAB 1500000
140
FILTER ELEMENT OIL BATH, 032,033,040,041 UP TO CAB 1500000
183
WASHER GROUND CABLE
187
LOCK WASHER , Replaced By: N912004010102
191
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
200
AIR CLEANER , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
200
AIR CLEANER , Replaced By: A3440947202
255
AIR INTAKE PIPE
255
PIPE ELBOW , INAPPLICABLE TO SUPERCHARGING SYSTEM, Replaced By: A3445288708, +001A3529971382, +002A3449979890
257
HOSE
259
CLAMP
259
CLAMP. LOOM TIE90-110
262
LOOM TIE. CLAMP AS REQUIRED
262
LOOM TIE. CLAMP
266
HOSE
266
HOSE
999
NUT
999
LOCK WASHER RAIL TO BATTERY SUPPORT
999
SCREW BRACKET TO DISC WHEEL M 8X16,D 315831
999
HOSE , Replaced By: A3450947182
999
BOTTOM PARTITION
999
VALVETO 376 090 96 01
999
HOSE FROM PICO AIR CLEANER TO TURBOCHARGER
999
VACUUM BOXTO 345 094 85 02
999
VACUUM BOXTO 345 094 80 02,78 02,81 02
999
BRACKET
999
HOSE TURBOCHARGER
999
AIR INTAKE PIPE TURBOCHARGER
999
FILTER ELEMENTTO 376 090 82 04
999
STRAINER , Replaced By: A3440947003
999
COVERTO 345 094 71 02,345 094 80 02
999
FILTER BOWLTO 376 090 96 01CICLONIZADOR
999
NUT
999
PIPE ELBOW , Replaced By: A3445280807
999
BRACKET , 032,033,040,041 UP TO CAB 1500000
999
FILTER BOWL ,1400510214005103-1500000
999
GASKETTO 345 094 78 02
999
GASKET , Replaced By: A0000941027
999
FILTER ELEMENT
999
GASKETTO 000 094 11 68,345 094 71 68
999
FASTENERTO 376 090 96 01
999
THREADED UNIONTO 345 094 81 02,80 02,85 02
999
THREADED UNION , Replaced By: A0009972075
999
NUTTO 345 094 81 02,80 02,85 02
999
NUT , Replaced By: A0009908654
999
FILTER BOWLTO 345 094 80 02,81 02,85 02
999
FILTER BOWLTO 345 094 78 02,345 094 79 02
999
SCOOPTO 345 094 77 02
999
BRACKET AIR CLEANER
999
VACUUM BOXTO 345 094 78 02,345 094 79 02
999
SCREW
999
CYCLONE PRE-FILTER BOWLTO 345 094 77 02,345 094 78 02
999
SEPARATORTO 374 094 00 02
999
SEAL RINGTO 345 094 78 02,345 094 79 02
999
VACUUM BOX , Replaced By: A3450947168
999
BRACKETTO 345 094 78 02,345 094 79 02,77 02
999
NUT
999
NUTTO 345 094 79 02,345 094 77 02
999
NUTTO 345 094 78 02,345 094 79 02
999
WASHER FELT
999
LOCKTO 345 094 78 02,308 094 76 02
999
THREADED NIPPLETO 345 094 78 02,345 094 79 02
999
ADAPTER FITTINGTO 345 094 78 02,345 094 79 02
999
FASTENER , Replaced By: A0010940055
