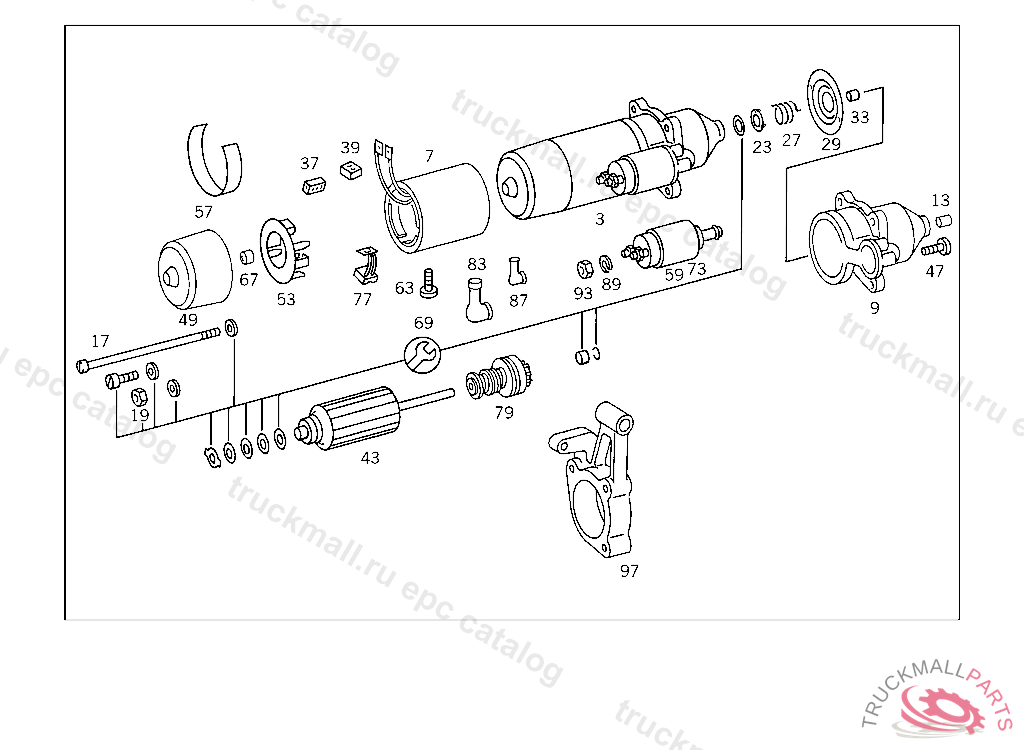

Поз.
Артикул
Описание
3
STARTING MOTOR , Replaced By: A3431517001
3
STARTING MOTOR , Replaced By: A3441510101
3
STARTING MOTOR , 343.919/001/004/008/010/012 UP TO ENGINE 002104,343.919/003 UP TO ENGINE 002029,343.919/005 UP TO ENGINE 001940 AND FOOTN.002
7
EXCITER COILTO 343 151 71 01
7
EXCITER COIL , Replaced By: A0001517455, +001A0001540845
9
BEARING
13
BUSHING DRIVE END BEARING
17
STUDTO 343 151 71 01
17
SCREWTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
19
NUT BALL PIVOT TO LEVER
23
WASHERTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
27
SPRINGTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
29
BEARINGTO 343 151 71 01
29
COVERTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
33
BUSHING STARTER PINION TO 343 151 71 01
37
INSULATIONTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
39
INSULATIONTO 343 151 71 01
43
ARMATURETO 343 151 71 01
47
SCREWTO 343 151 71 01
49
SCREENING PLATETO 343 151 71 01
53
BRACKETTO 343 151 71 01
53
BRACKETTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
53
BRACKET , Replaced By: A0001500373
57
SHIMTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
59
SOLENOID SWITCHTO 343 151 71 01
63
SCREWTO 343 151 71 01
67
BUSHINGTO 343 151 71 01
69
REPAIR KIT ARMATURE TO 343 151 71 01
69
REPAIR KIT RELEASE YOKE TO 343 151 71 01
73
SOLENOID SWITCH , Replaced By: A3441527310
73
SOLENOID SWITCHTO 344 151 01 01,343 151 70 01, 343.919/001/004/008/010/012 UP TO ENGINE 002104,343.919/003 UP TO ENGINE 002029,343.919/005 UP TO ENGINE 001940 AND FOOTN.002
77
CARBON BRUSH SETTO 343 151 71 01, USED WITH 343 151 70 01 STARTING MOTOR WITH BOSCH NO.9 000 083 027 USED WITH 343 151 71 01 STARTING MOTOR WITH BOSCH NO.9 000 083 028
77
CARBON BRUSH SETTO 344 151 01 01
77
CARBON BRUSH SET , Replaced By: A0011512014
77
CARBON BRUSH SETTO 343 151 71 01
79
PINION
79
PINION , Replaced By: A3431517113
83
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
87
BOOT , Replaced By: A0005463335
87
BOOT HEATER PLUGS
89
LOCK WASHER , Replaced By: N912004010102
93
NUT , Replaced By: N304032010002
97
FLANGE STARTING MOTOR
