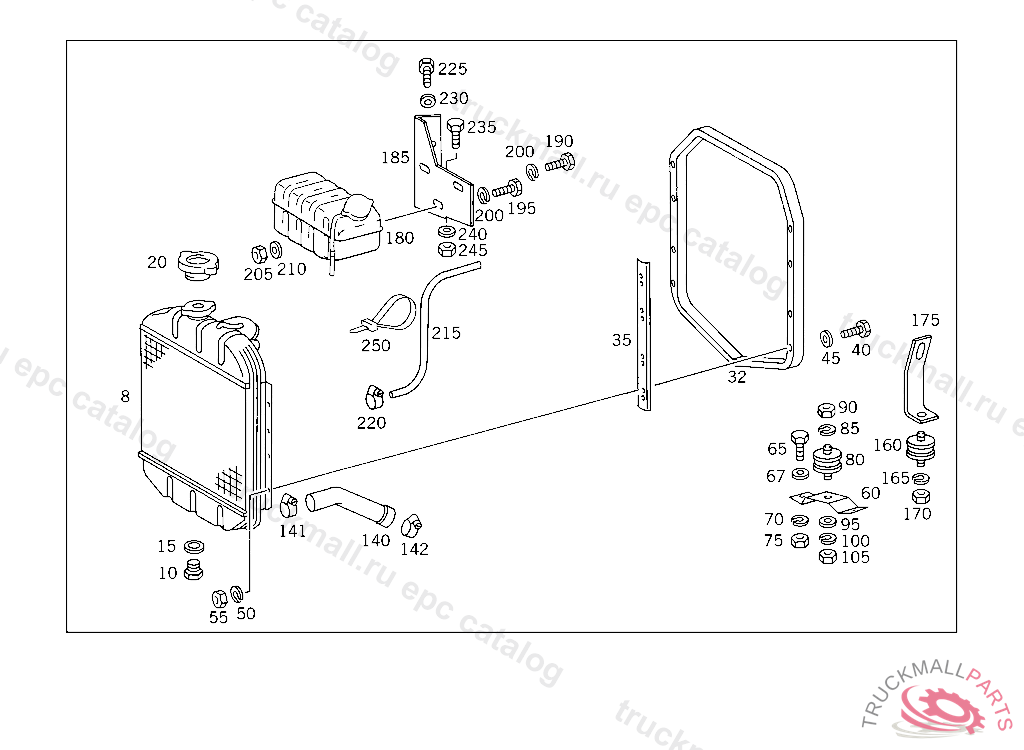

Поз.
Артикул
Описание
10
SCREW PLUG
15
SEAL RING
20
RADIATOR CAP
20
RADIATOR CAP , Replaced By: A3445010315
35
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
40
SCREW PLUG SOCKET TO FRAME
45
WASHER TRAILER PLUG SOCKET TO BRACKET
50
LOCK WASHER RAIL TO BATTERY SUPPORT
55
NUT LEVER TO SHIFTING SHAFT
60
ANGLE RIGHT
60
ANGLE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 596522, Replaced By: A3765047239
60
ANGLE , Replaced By: A3515040239
60
ANGLE LEFT
60
ANGLE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 596522, Replaced By: A3765047139
60
ANGLE , Replaced By: A3515040139
65
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
67
WASHER BRACKET TO ENGINE CROSS MEMBER
70
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
75
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
80
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
85
LOCK WASHER , Replaced By: N912004010102
90
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
95
WASHER GROUND CABLE
100
LOCK WASHER , Replaced By: N912004010102
105
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
140
HOSE FROM RADIATOR OUTLET TO OIL COOLER
141
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
141
CLAMP. LOOM TIE (DRY FILTER)
141
LOOM TIE (DRY FILTER)
141
LOOM TIE FROM THERMOSTAT TO RADIATOR FILLER NECK
142
CLAMP COMPRESSED AIR LINE
142
BRACKET
142
LOOM TIE HOSE TO FILLER NECK
142
CLAMP , Replaced By: A0019972590
