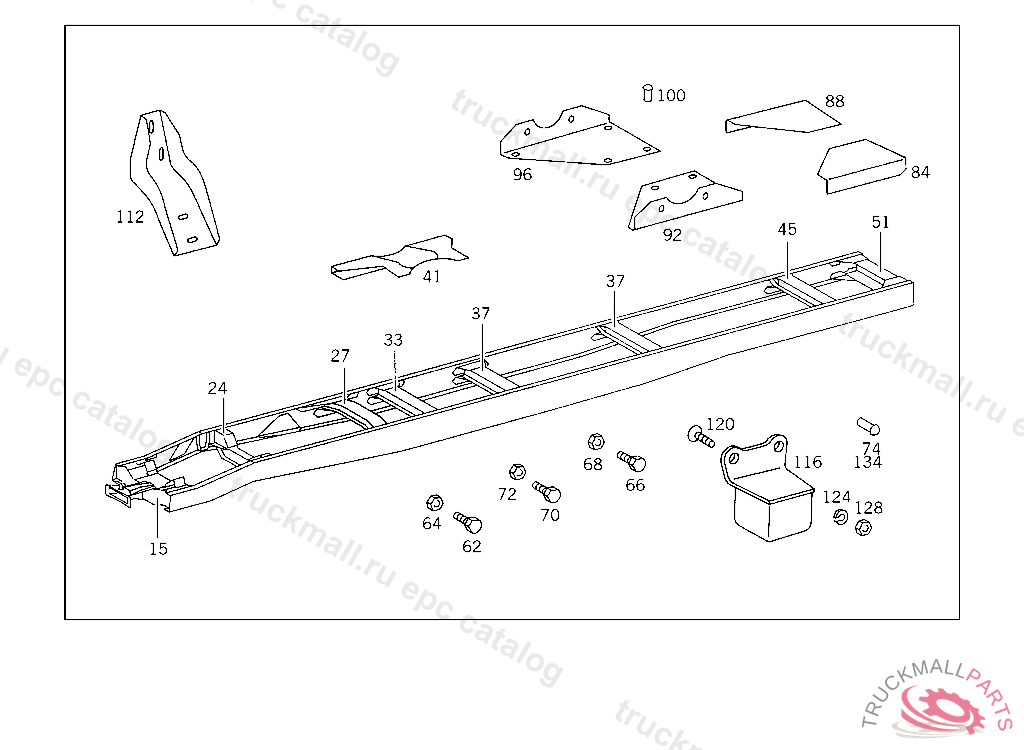

Поз.
Артикул
Описание
15
ENGINE CROSS MEMBER FRONT
24
CROSS MEMBERNO.2
27
CROSS MEMBERNO.3
33
CROSS MEMBER *** NO.5
33
CROSS MEMBER *** NO.5
41
REINFORCEMENT
45
CROSS MEMBER REAR-SPRING REAR BRACKET NO.7
51
CROSS MEMBER
51
CROSS MEMBER *** NO.8
62
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
62
SCREW BRACKET TO FRAME M 12X35
64
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
66
SCREW BRACKET TO FRAME
66
SCREW BATTERY CASE
68
NUT BRACKET TO SIDE MEMBER
70
SCREW CROSS MEMBER TO SIDE MEMBERS
70
SCREW , Replaced By: N304017010040
72
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
74
RIVET12X48 MM
74
RIVET14X32 MM
74
RIVET PLATE TO FRAME,KB860814
84
GUSSET PLATE
88
GUSSET PLATE
88
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
92
GUSSET PLATE
92
GUSSET PLATE
92
GUSSET PLATE
92
GUSSET PLATE
96
GUSSET PLATE
96
GUSSET PLATE
96
GUSSET PLATE
96
GUSSET PLATE
96
GUSSET PLATE
96
GUSSET PLATE
100
RIVET10X28 MM
112
CONSOLE
116
RUBBER MOUNTING
120
SCREW RUBBER BUFFER TO FRAME
120
SCREW RUBBER BUFFER TO FRAME
124
LOCK WASHER , Replaced By: N912004010102
128
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
134
RIVET14X32 MM
134
RIVET12X48 MM
134
RIVET CONSOLE TO SIDE MEMBER
134
RIVET PLATE TO FRAME,KB860814
134
RIVET12X28 MM
134
RIVET BEARING BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
134
RIVET10X38 MM, TO BE ADAPTED DURING ASSEMBLY
134
RIVET10X28 MM
134
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
134
RIVET12X28 MM
999
BRACKET , Replaced By: A3443107109
999
REAR SPRING BRACKET , Replaced By: A3443257001
999
FRAME
999
CROSS MEMBER REAR CROSS MEMBER
999
GUSSET PLATE
999
GUSSET PLATE
999
CROSS MEMBER , Replaced By: A3453127317
999
FRAME , ON CAB 344
999
CROSS MEMBER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3453127115
999
CROSS MEMBERNO.7
999
GUSSET PLATE BOTTOM LEFT
999
GUSSET PLATE BOTTOM RIGHT
999
STIFFENING ,KB860814
999
CROSS MEMBER , Replaced By: A3453107336
999
CROSS MEMBER , Replaced By: A3443127210
999
GUSSET PLATE , Replaced By: A3453127687
999
GUSSET PLATE , Replaced By: A3453127787
999
GUSSET PLATE , Replaced By: A3453127887
999
GUSSET PLATE , Replaced By: A3453127987
