Поз.
Артикул
Описание

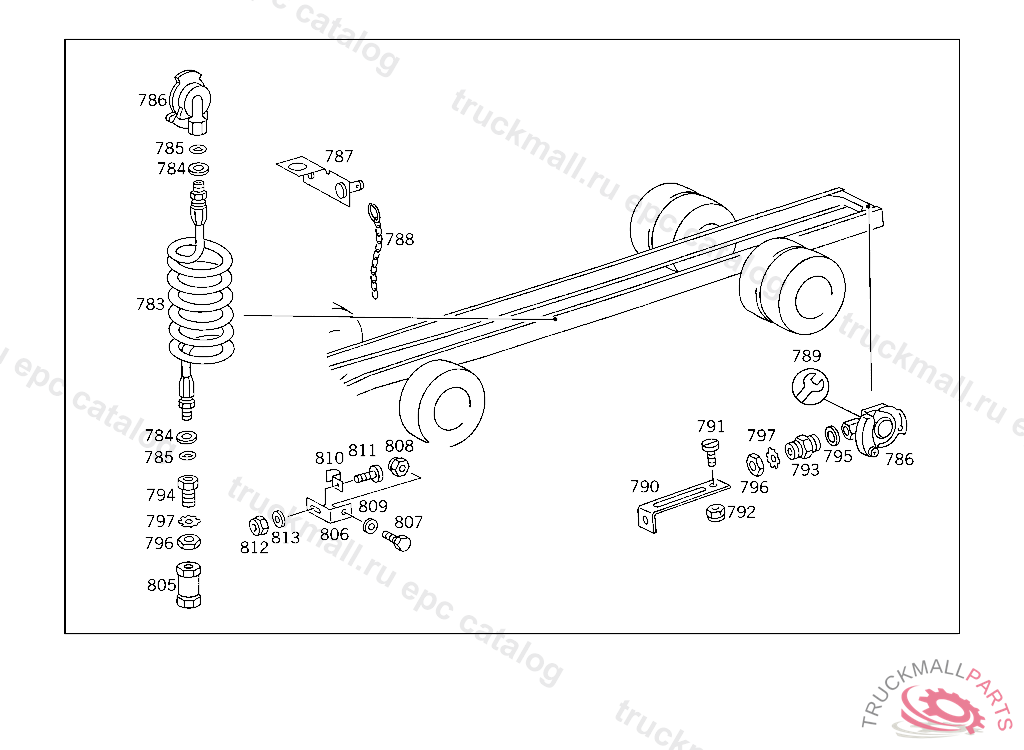

783
HOSE BRAKE LINE COUPLING,"BRAKE"
783
HOSE BRAKE LINE COUPLING,"BRAKE"
783
HOSE BRAKE LINE COUPLING,"SUPPLY"
783
HOSE BRAKE LINE COUPLING,"SUPPLY"
784
THRUST RING LOCKING VALVE
784
THRUST RING LOCKING VALVE
784
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
784
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
784
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
784
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
785
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
786
BRAKE LINE COUPLING LEFT
786
BRAKE LINE COUPLING LEFT
786
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
786
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
787
BRACKET BRAKE LINE COUPLING,RIGHT AND LEFT,796308
788
SAFETY CHAIN BRAKE LINE COUPLING,RIGHT AND LEFT,796308
789
REPAIR KIT SUPPLY, RED TO 000 429 86 30
789
REPAIR KITTO 000 429 80 30,000 429 81 30, NOT USED
790
BRACKET LEFT, USED WITH AIR BRAKE,FROM CHASSIS 588186
790
BRACKET RIGHT, USED WITH AIR BRAKE,FROM CHASSIS 588186
791
SCREW , Replaced By: N304017010040
792
NUT BRACKET TO SIDE MEMBER,XB209706
793
FITTING BRAKE LINE COUPLING TO BRACKET
794
ADAPTER FITTING , Replaced By: A0004296634
795
SEAL RINGTO 006 997 00 72
796
NUT BRACKET TO SIDE MEMBER
796
NUT BRACKET TO SIDE MEMBER
797
TOOTHED WASHER SHUT-OFF COCK,796307
797
TOOTHED WASHER SHUT-OFF COCK,796307
999
CLAMP , Replaced By: N916017011001
999
THRUST RING BUTT SCREW CONNECTION
999
SLEEVE LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/14 MM
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW
999
UNION NUT BUTT SCREW CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION
999
UNION NUT
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT PUMP TO BRACKET
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCK WASHER RAIL TO BATTERY SUPPORT
999
HOSE CLAMP. CLAMP COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
999
NUT ELECTRONIC ACCELERATOR PEDAL
999
GREASE NIPPLE PROTECTIVE TUBE
999
GREASE NIPPLE INTERMEDIATE LEVER
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
INSULATING HOSE FROM FIRE WALL TO HAND BRAKE VALVE
999
INSULATING HOSE
999
INSULATING HOSE COMPRESSED AIR HOSE 8X0.7 MM
999
SCREW CABLE TO ALTERNATOR
999
SEAL RINGTO 002 430 41 01,27 01,045 430 00 01
999
SEAL RING LINE CONNECTION
999
SEALING RING. SEAL RING ENGINE BREATHING
999
SEAL RING
999
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
999
FITTING
999
CONNECTION FITTING ,880809
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
GLAND LINE CONNECTION
999
TURNBUCKLE , Replaced By: A3859960034
999
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
999
SCREW ENGINE TO ENGINE FRONT SUPPORT
999
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
NUT , Replaced By: N000936012005
999
NUT , Replaced By: N308675012000
999
NUT PULL ROD
999
NUT SPRING BOLT
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT
999
SCREW CROSS MEMBER TO SIDE MEMBERS
999
SCREW , Replaced By: N304017010002
999
SCREW LINES TO BRACKET
999
SCREW CLAMP TO BRACKET
999
SCREW STRAP TO BRACKET
999
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
999
FITTED SCREW
999
LOCK RING
999
LOCK RING
999
LOCK RING SHACKLE TO BEARING BRACKET,965965
999
EXPANSION PLUG
999
NUT ,100570
999
SPRING WASHER CAB FLOOR
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
LOCK WASHER , Replaced By: N912004010102
999
WASHER
999
WASHER SUPPORT TO FRAME,D 127794
999
WASHER GROUND CABLE
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER PLUG SOCKET TO BRACKET
999
WASHER LINE MOUNTING,HB746632684146
999
COTTER PIN STRAP TO SUPPORT
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
REPAIR KIT , Replaced By: A0004205555
999
CUPTO 000 431 34 14
999
SPRINGTO 000 431 34 14
999
SPRINGTO 345 431 72 14
999
SPRING , Replaced By: A0014316493
999
RODTO 000 431 34 14
999
CUPTO 000 431 34 14
999
ROD , Replaced By: A0004312892
999
SPRING RETAINER , Replaced By: A3454317189
999
PROTECTIVE CAP , Replaced By: A0004301808
999
CUP , Replaced By: A0004318083
999
PISTONTO 345 431 72 14
999
SEAL RING , Replaced By: A0049978045
999
SPACER WASHER , Replaced By: A0049978045
999
FILTER BOTTOMTO 345 431 72 14
999
COVER , Replaced By: A0004312892
999
AIR CLEANER , Replaced By: A0004313934
999
RODTO 000 430 34 81
999
PISTONTO 000 430 34 81
999
EYE
999
EXPANSION PLUG BRAKE SHAFT TO BEARING BRACKET
999
BRAKE LINING REPAIR SIZE II 17.7 MM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT FOR THE NEW PART NO.,SEE STANDARD VERSION
999
BRAKE LINING REPAIR SIZE I 16.7 MM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT FOR THE NEW PART NO.,SEE STANDARD VERSION
999
STOP WASHER BRAKE SHAFT TO BEARING BRACKET
999
BRAKE LINING STANDARD 15.7 MM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT FOR THE NEW PART NO.,SEE STANDARD VERSION
999
BRAKE LINING , Replaced By: A3454217210
999
BRAKE LINING , Replaced By: A3454217110
999
BRAKE LINING , Replaced By: A3454217010
999
BRAKE SHOE , FOR THE NEW PART NO.,SEE STANDARD VERSION
999
BRAKE SHOE , Replaced By: A3024202019, +002A3604212410, +016A3079900197
999
BRAKE SHOE , Replaced By: A3024202119, +002A3604231310, +016A3079900197
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
BEARING BRACKET , Replaced By: A3454207178
999
SCREW
999
FITTING LINE CONNECTION TO FIRE WALL,684146
999
BRACKET HAND BRAKE VALVE
999
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
999
FITTING
999
LOOM TIE , Replaced By: A3459978890
999
SEAL RING
999
WASHERTO 344 430 73 01,002 430 27 01
999
CUPTO 344 430 73 01,002 430 27 01
999
SPRING RETAINERTO 345 431 72 14
999
WASHERTO 002 430 71 01
999
T-FITTING ,627034
999
DISTRIBUTOR MASTER CYLINDER TO BRAKE VALVE,548520, 031,032,033,034
999
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
999
DISTRIBUTOR BRAKE MASTER CYLINDER TO 344 430 78 01, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE LINING REPAIR SIZE II 17.70 MM,FRAS-LE, UP TO REAR AXLE 111016 FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRAKE LINING REPAIR SIZE I 16.70 MM,FRAS-LE, UP TO REAR AXLE 111016 FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRAKE LINING STANDARD 15.70 MM,FRAS-LE, UP TO REAR AXLE 111016 FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRAKE LINING REPAIR SIZE II 17.50 MM,LONAFLEX, UP TO REAR AXLE 111016 FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRAKE LINING REPAIR SIZE I 16.50 MM,LONAFLEX, UP TO REAR AXLE 111016 FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRAKE LINING STANDARD 15.50 MM,LONAFLEX, UP TO REAR AXLE 11016,FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRAKE LINING REPAIR SIZE II 17.70 MM,FRAS-LE, UP TO FRONT AXLE 2219487,FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 732.7
999
BRAKE LINING REPAIR SIZE I 16.70 MM,FRAS-LE, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING STANDARD 15.70 MM,FRAS-LE, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE II 17.5 MM
999
BRAKE LINING REPAIR SIZE I 16.5 MM
999
BRAKE LINING STANDARD 15.50 MM LONALFEX, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE SHOELONAFLEX
999
BEARING BRACKET
999
BRAKE SHOE , Replaced By: A3024202119, +001A3644230310
999
LINE FROM T-FITTING TO RELAY VALVE 15X1,5 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
SEAL RING ,100570
999
CLAMP
999
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
999
ELBOW FITTING , Replaced By: A3454307779
999
CUP
999
CLAMP COMPRESSED AIR LINE TO BRACKET
999
SEAL RING
999
SEAL HOLDER
999
LINE8X0.7 MM, LENGTH AVAILABLE: 6000 MM
999
LINE6X0.7 MM, LENGHT AVAILABLE 6000 MM
999
EXPANSION PLUG
999
SPHERICAL PIECE , Replaced By: A3025860242
999
SPACER TUBE AS REQUIRED 13.5MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SPACER TUBE AS REQUIRED 13.0MM, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
SPACER TUBE AS REQUIRED 12.5MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SPACER TUBE AS REQUIRED 12.0MM, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
SPACER TUBE AS REQUIRED 11.5MM, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
STUD
999
SPACER TUBE AS REQUIRED 11.0MM, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927 UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
ADJUSTING LEVER RIGHT
999
ADJUSTING LEVER LEFT
999
SEAL RING
999
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
999
SEAL RING17.12X2.62 MM, 402,407 FROM CHASSIS 657000
999
SEAL RING12.42X1.78 MM,WABCO,002 0,012 0
999
SEAL RING32.99X2.62 MM,WABCO,002 0,012 0
999
SEAL RING6.07X1.78 MM,WABCO,002 0,012 0
999
SPRINGTO 000 431 21 14
999
PISTON
999
SPRINGTO 000 431 21 14
999
CUP , Replaced By: A3454317286
999
CUPTO 344 430 73 01
999
WASHER , Replaced By: A3454317376
999
WASHER , Replaced By: A3454317076
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
SEAL RINGTO 000 429 28 95,GRAU
