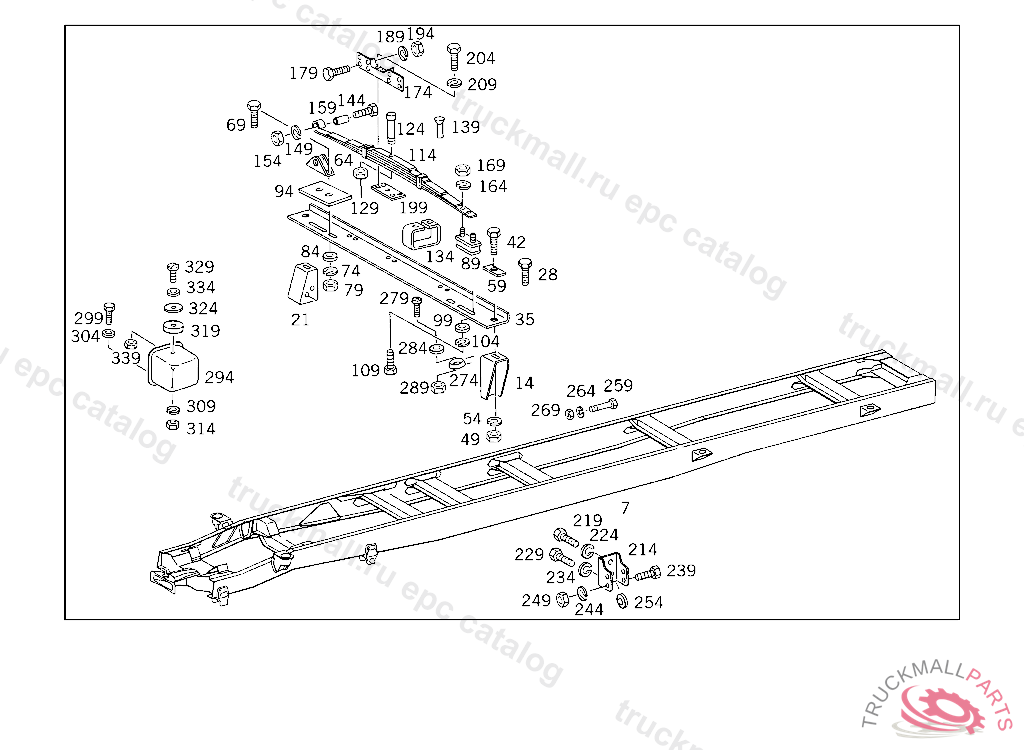

Поз.
Артикул
Описание
7
FRAME
7
FRAME
7
FRAME
7
FRAME
14
CONSOLE LEFT
14
CONSOLE RIGHT
14
CONSOLE LEFT
21
CONSOLE RIGHT
28
SCREW BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
28
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
35
CONSOLE
42
SCREW BATTERY CASE TO SIDE MEMBER
49
LOCK WASHER SUPPORT TO SIDE MEMBER
54
NUT BRACKET TO SIDE MEMBER
59
WASHER CONSOLE TO CONSOLE
64
MOUNTING (SPRING BRACKET),CAB SUSPENSION
69
SCREW , Replaced By: N304017010040
74
LOCK WASHER , Replaced By: N912004010102
79
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
84
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
89
MOUNTING
94
SHIM BRACKET TO FRAME
99
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
104
LOCK WASHER , Replaced By: N912004010102
109
SCREW , Replaced By: N304017010002
114
SPRING
124
SPRING BOLT
129
NUT LEVER TO SHIFTING SHAFT
134
SPRING CLAMP
139
RIVET
144
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
149
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
154
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
159
SPRING BUSHING
164
LOCK WASHER , Replaced By: N912004010102
169
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
174
CONSOLE CAB
179
SCREW CONSOLE TO CAB M 10X60
179
SCREW , Replaced By: N304017010040
189
LOCK WASHER , Replaced By: N912004010102
194
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
199
PLATE
204
SCREW RUBBER MOUNTING TO CONSOLE
209
LOCK WASHER , Replaced By: N912004010102
214
MOUNTING
219
SCREW , Replaced By: N304017010002
224
LOCK WASHER , Replaced By: N912004010102
229
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
234
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
239
SCREW , Replaced By: N308676012018
244
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
249
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
254
WASHER SUPPORT TO FRAME,D 127794
259
SCREW , Replaced By: N308676012016
264
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
269
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
274
MOUNTING (RUBBER BUFFER)
279
SCREW RUBBER BUFFER TO PLATE
284
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
289
NUT LEVER TO SHIFTING SHAFT
294
CONSOLE
299
SCREW LINES TO BRACKET
304
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
309
LOCK WASHER RAIL TO BATTERY SUPPORT
314
NUT LEVER TO SHIFTING SHAFT
319
WASHER BUFFER TO CONSOLE ON AUXILIARY FRAME
324
WASHER RUBBER BUFFER TO BRACKET
329
SCREW BUFFER TO CONSOLE ON AUXILIARY FRAME
334
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
339
NUT LEVER TO SHIFTING SHAFT
999
SPRING
999
SPACER TUBE LEAF SPRING TO CONSOLE
999
PLATE LEAF SPRING TO CAB
999
SPRINGNO.1
999
SPRINGNO.2
999
SPRING510 MM
999
SPRINGNO.4
999
SPRING240 MM
999
BODY SUPPORT CAB
999
BASE
999
BRACKET CAB SUSPENSION
999
RIVET12X38 MM
