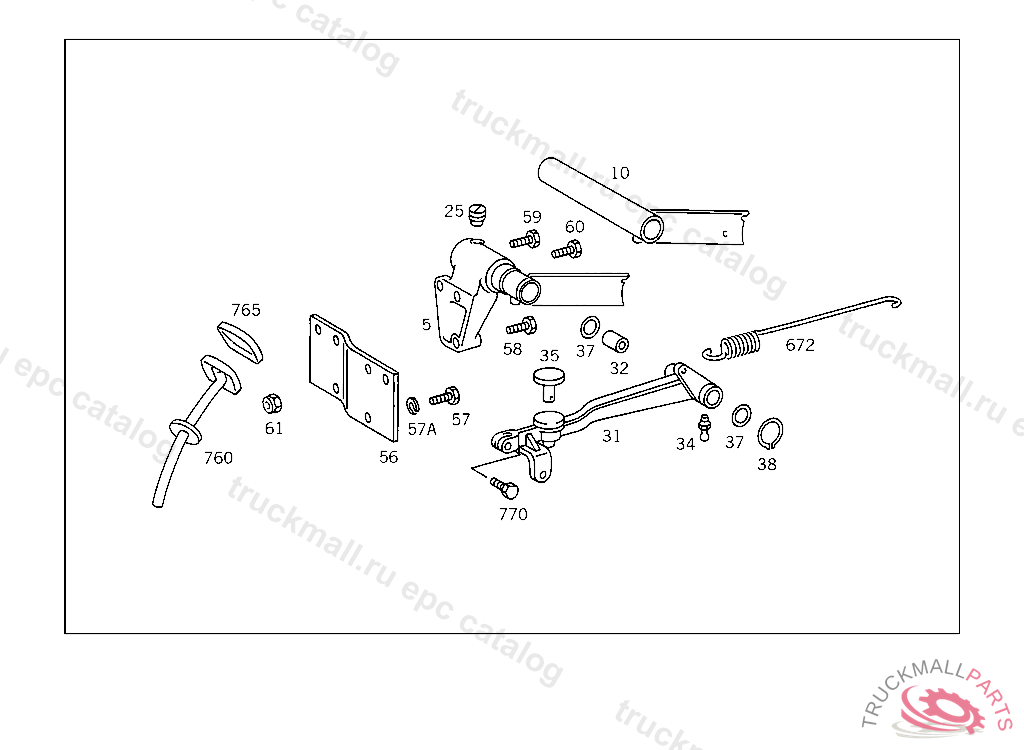

Поз.
Артикул
Описание
5
BEARING BRACKET PEDAL ASSEMBLY
10
BEARING
25
SCREW
31
PEDAL CLUTCH
32
BUSHING
34
GREASE NIPPLE PROTECTIVE TUBE
35
STOP
37
SPACER RING PEDAL TO BEARING BRACKET
38
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
56
BRACKET
57
SCREW BEARING BRACKET TO FRONT AXLE
58
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS M 12X1,5X35
59
SCREW TORSION BAR TO SHACKLE,5 903514
60
SCREW BRACKET TO BUMPER STRUT
60
SCREW , Replaced By: N000960012335
61
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
672
SPRING CLUTCH PEDAL
760
PEDAL PLATE CLUTCH
765
PAD BRAKE AND CLUTCH LEVERS
770
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
