Поз.
Артикул
Описание

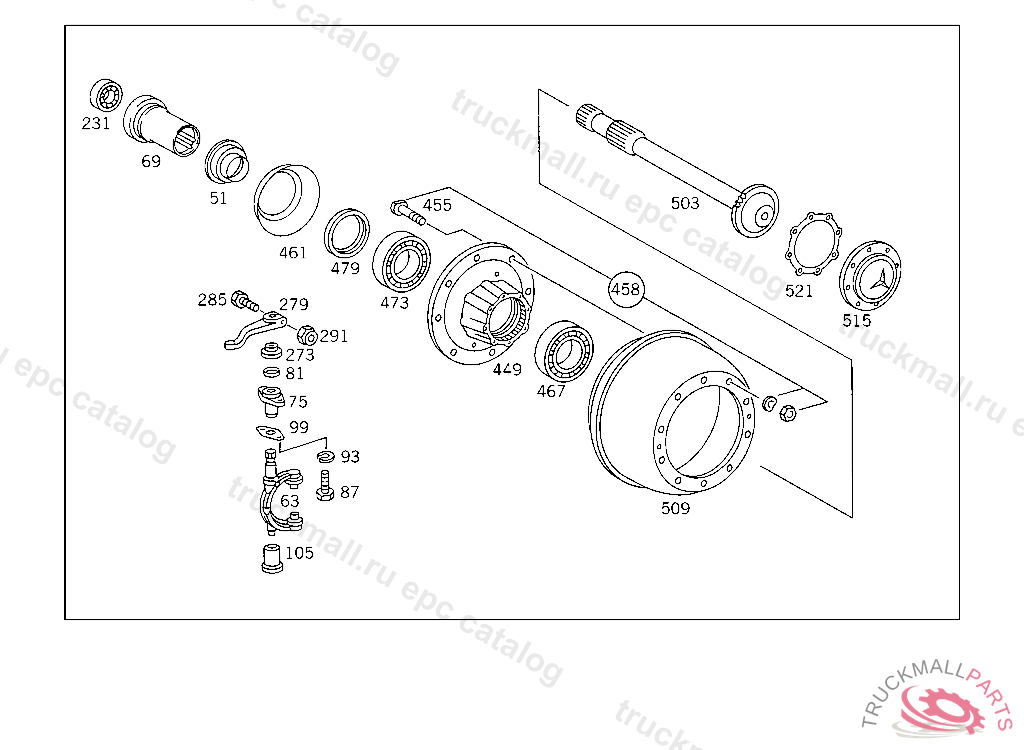

51
OIL COLLECTOR
63
SHIFTING FORK DIFFERENTIAL LOCK
69
FOLLOWER BELL HUB
75
BEARING BUSHING SHIFTING FORK TO REAR AXLE HOUSING
81
SEAL RING SHIFTING FORK TO REAR AXLE HOUSING
87
SCREW , Replaced By: N304017010040
93
LOCK WASHER , Replaced By: N912004010102
99
PAD , Replaced By: A3273510119, +002A3273510019
99
PAD SHIFTING FORK TO REAR AXLE HOUSING 0.50 MM
99
PAD AS REQUIRED 0.20 MM
99
PAD SHIFTING FORK TO REAR AXLE HOUSING 0.10 MM
105
BEARING BUSHING SHIFTING FORK TO REAR AXLE HOUSING
231
TAPERED ROLLER BEARING INSIDE
231
TAPERED ROLLER BEARING INSIDE
273
PROTECTIVE CAP SHIFTING FORK TO REAR AXLE HOUSING
279
LEVER
285
SCREW , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
291
NUT LEVER TO SHIFTING FORK
449
WHEEL HUB , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
449
WHEEL HUB , Replaced By: A3853560101
455
WHEEL MOUNTING BOLT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
455
WHEEL MOUNTING BOLT , Replaced By: A3814010571
458
PIN (PARTS KIT),WHEEL MOUNTING, WHEEL OPENING: 27 MM
458
PIN (PARTS KIT),WHEEL MOUNTING, WHEEL OPENING: 30 MM
458
PIN , Replaced By: A3644000074
461
OIL COLLECTOR WHEEL HUB
461
OIL COLLECTOR
467
TAPERED ROLLER BEARING
467
TAPERED ROLLER BEARING OUTSIDE
467
TAPERED ROLLER BEARING OUTSIDE
467
TAPERED ROLLER BEARING , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
467
TAPERED ROLLER BEARING OUTSIDE
473
TAPERED ROLLER BEARING
473
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
473
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
473
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
479
SEAL RING
479
SEAL RING , Replaced By: A0109978147
503
REAR AXLE SHAFT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
503
REAR AXLE SHAFT BRAKE DRUM TO REAR WHEEL HUB
509
BRAKE DRUM REPAIR SIZE I, TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
509
BRAKE DRUM STANDARD, TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
515
HUB CAP FRONT WHEEL HUB
521
GASKET , Replaced By: A9433340080
999
TAPERED ROLLER BEARING
999
COVER , 344.055 TO 344 350 90 00, Replaced By: A6163500021, +012N914112010016
999
BRACKET
999
SNAP RING DRIVE PINION
999
DIFFERENTIAL GEAR ,2 125294, Replaced By: A3833502123, +016A3839900301
999
SPACER WASHER AS REQUIRED, STEEL 10.28 MM
999
THRUST WASHER , Replaced By: A6743530362
999
SPACER WASHER AS REQUIRED 0.10 MM
999
BRAKE ANCHOR PLATE , Replaced By: A3024203117
999
REPAIR KIT , Replaced By: A3644230410
999
REPAIR KIT , Replaced By: A3644230510
999
REPAIR KIT , Replaced By: A3644230310
999
REPAIR KIT , Replaced By: A3644230310
999
REPAIR KIT , Replaced By: A3644230310
999
REPAIR KIT , Replaced By: A3644230410
999
REPAIR KIT , Replaced By: A3644230510
999
REPAIR KIT , Replaced By: A3644230410
999
REPAIR KIT , Replaced By: A3644230510
999
SPHERICAL WASHER
999
REAR AXLE SHAFT
999
COVER , Replaced By: A6163500021, +012N914112010016
999
SPACER TUBE
999
LEVER RIGHT,2 068749
