Поз.
Артикул
Описание

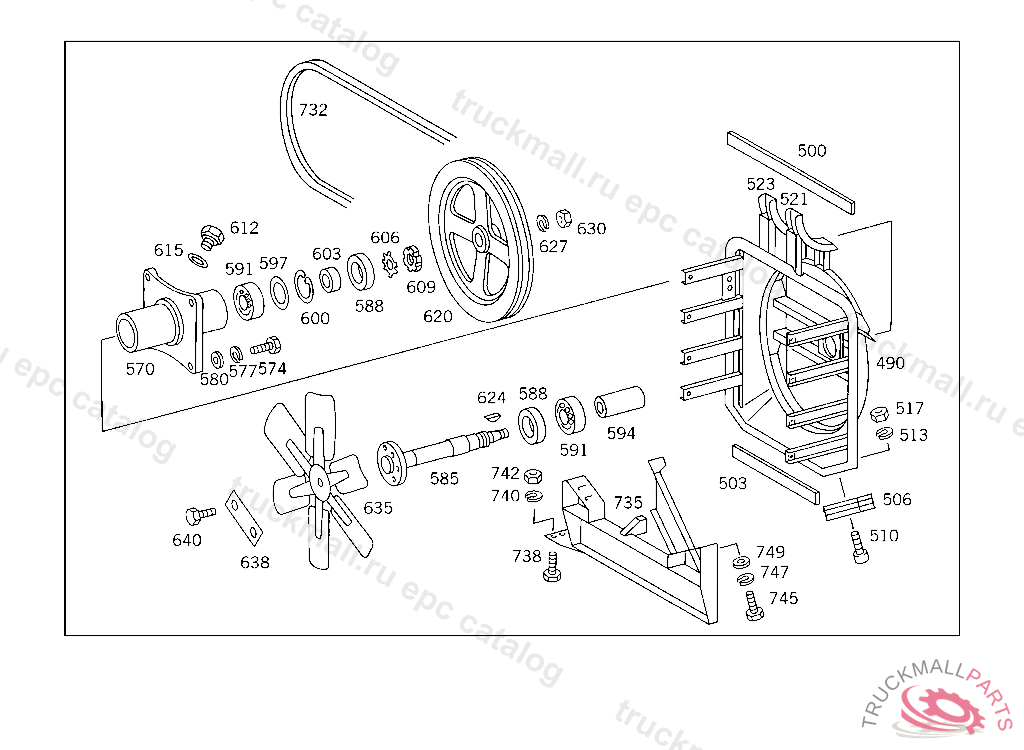

490
SUPPORT RADIATOR
500
RUBBER STRIP TOP
503
RUBBER STRIP RADIATOR TO SUPPORT
506
BUFFER REAR
510
SCREW REAR EXHAUST PIPE TO CONSOLE M 12X25,600893617872
513
LOCK WASHER FITTING TO BRACKET
517
NUT SPRING BOLT
521
SUPPORT LEFT
521
PART NAME MISSING. VALVE , Replaced By: A3645007827
523
SUPPORT RIGHT
523
PART NAME MISSING , Replaced By: A3645007927
570
BEARING BODY FAN DRIVE
574
SCREW AIR DUCT TO CAB
577
LOCK WASHER RAIL TO BATTERY SUPPORT
580
WASHER TRAILER PLUG SOCKET TO BRACKET
585
FAN SHAFT
588
RADIAL SEAL RING
591
ANG. CONTACT BALL BEARING FAN DRIVE
594
SPACER TUBE
597
SPACER WASHER
600
LOCK RING52X2 MM
603
SPACER TUBE
606
LOCK PLATE SHACKLE TO CONSOLE A 24,393379
609
NUT SHACKLE TO CONSOLE,393379
612
SCREW PLUG
615
SEAL RING PNEUMATIC VALVE
620
PULLEY
620
PULLEY , Replaced By: A3552050210
624
WOODRUFF KEY POWER STEERING PUMP
627
LOCK WASHER SUPPORT TO SIDE MEMBER
630
NUT , Replaced By: N308675014000
635
FAN
638
LOCK
640
SCREW PLUG SOCKET TO FRAME
732
V-BELT
735
SUPPORT RADIATOR MOUNTING
738
SCREW , Replaced By: N304017010040
740
LOCK WASHER , Replaced By: N912004010102
742
NUT OIL COOLER TO BRACKET,TOP
745
SCREW BRACKET TO SIDE MEMBER
747
LOCK WASHER , Replaced By: N912004010102
749
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
999
VALVE
999
COVER
999
LOOM TIE. CLAMP HOSE TO HEATING PIPE
999
CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
CLAMP HOSE TO FITTING AND TO OIL TANK
