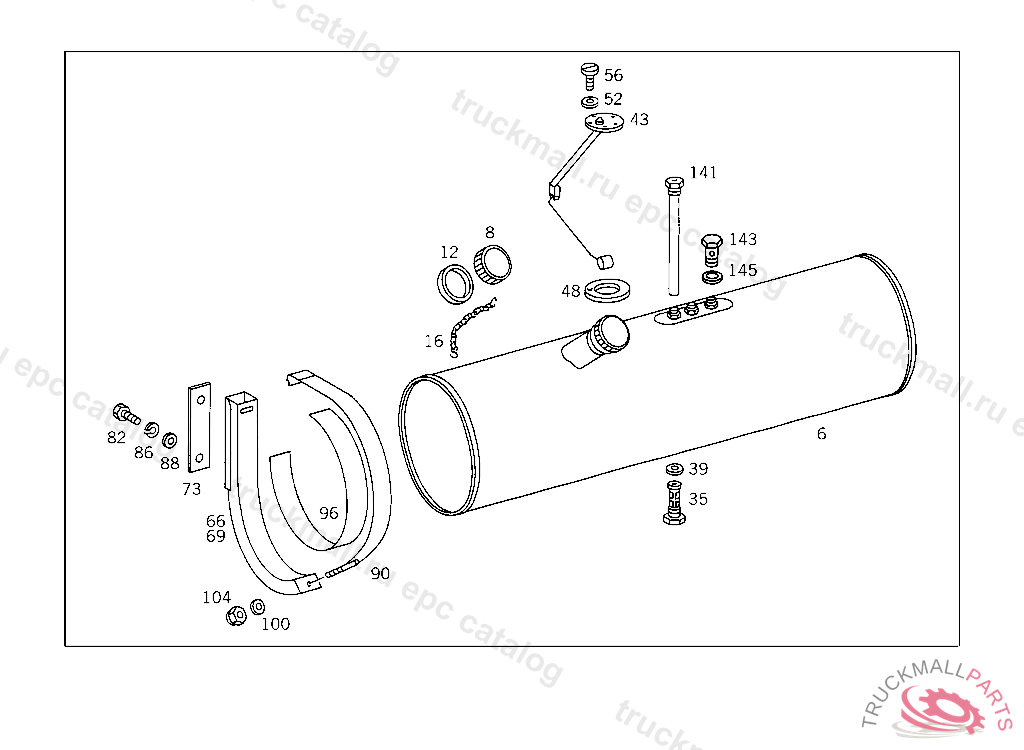

Поз.
Артикул
Описание
6
FUEL TANK ,723270
6
FUEL TANK LESS SENDER UNIT
6
FUEL TANK LESS SENDER UNIT,659794
8
FILLER CAP
12
SEAL RING
16
CHAIN FILLER CAP
35
FUEL STRAINER
39
SEAL RING FUEL STRAINER SCREEN
43
SENDER UNIT , Replaced By: A3455427617
43
SENDER UNIT , Replaced By: A3455427917
43
SENDER UNIT TANK
43
SENDER UNIT TANK
48
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
52
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
56
SCREW
69
SUPPORT ,723270
69
SUPPORT ,723271
82
SCREW , Replaced By: N308676014008
86
LOCK WASHER SUPPORT TO SIDE MEMBER
88
WASHER BATTERY CASE
90
STRAP FUEL TANK
96
SHIM FUEL TANK TO CONSOLE 60 MM
100
WASHER SUPPORT TO FRAME,D 127794
104
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
141
RISING PIPE ,659794
143
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
145
SEAL RING AT TANK
145
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
CARDBOARD FUEL TANK TO SUPPORT, 344.058 UP TO SHASSIS 659793
999
CONNECTOR
999
DISTRIBUTOR LEAK LINE,659794
999
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
