Поз.
Артикул
Описание

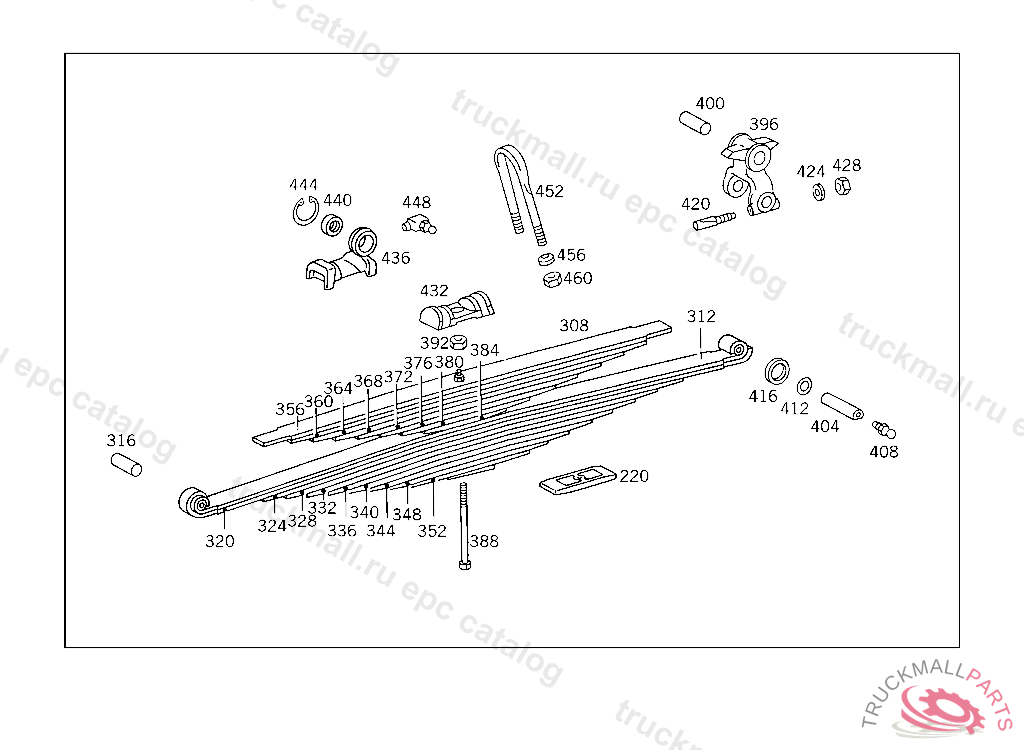

308
REAR SPRING
312
SPRING LEAFNO.1
316
BUSHING
316
BUSHING
320
SPRING LEAFNO.2
324
SPRING LEAFNO.3
328
SPRING LEAFNO.4
332
SPRING LEAFNO.5
336
SPRING LEAFNO.6
340
SPRING LEAFNO.07
344
SPRING LEAFNO.08
348
SPRING LEAFNO.09
352
SPRING LEAFNO.10
352
SPRING LEAFNO.10
356
SPRING LEAF HELPER SPRING NO.1
360
SPRING LEAF HELPER SPRING NO.2
364
SPRING LEAF HELPER SPRING NO.3
368
SPRING LEAF HELPER SPRING NO.4
372
SPRING LEAF HELPER SPRING NO.5
376
SPRING LEAF HELPER SPRING NO.6
380
SPRING LEAF HELPER SPRING NO.7
384
SPRING LEAF HELPER SPRING NO.8
388
SCREW
392
NUT SPRING BOLT
396
SHACKLE REAR SPRING SUSPENSION
400
BUSHING
400
BUSHING
404
SHACKLE PIN , Replaced By: A3855860232
404
SHACKLE PIN , Replaced By: A3855860232
404
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
408
GREASE NIPPLE PROTECTIVE TUBE
412
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
412
WASHER AS REQUIRED 4.0 MM
412
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
412
WASHER AS REQUIRED 4.2 MM
416
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
420
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
424
WASHER GROUND CABLE
428
NUT BRACKET TO SIDE MEMBER,XB209706
436
PLATE REAR AXLE TO TO REAR SPRINGS,4 610894
440
JOINT BEARING TORSION BAR TO LINK,5 903513
440
JOINT BEARING TORSION BAR TO LINK,5 903513
444
LOCK RING TORSION BAR TO LINK,5 903513
448
GREASE NIPPLE
448
GREASE NIPPLE
452
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510825, +001A6793250031
452
U-BOLT REAR SPRING TO REAR AXLE
452
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793511025, +001A6793250031
456
WASHER FRONT SPRINGS TO FRONT AXLE
460
NUT SUPPORT TO SPARE WHEEL CARRIER
999
SPRING CLAMP AT SPRING LEAF NO.6
999
SPRING CLAMP AT LEAF N0.3
999
WASHER SHOCK ABSORBER TO CROSS MEMBER
