Поз.
Артикул
Описание

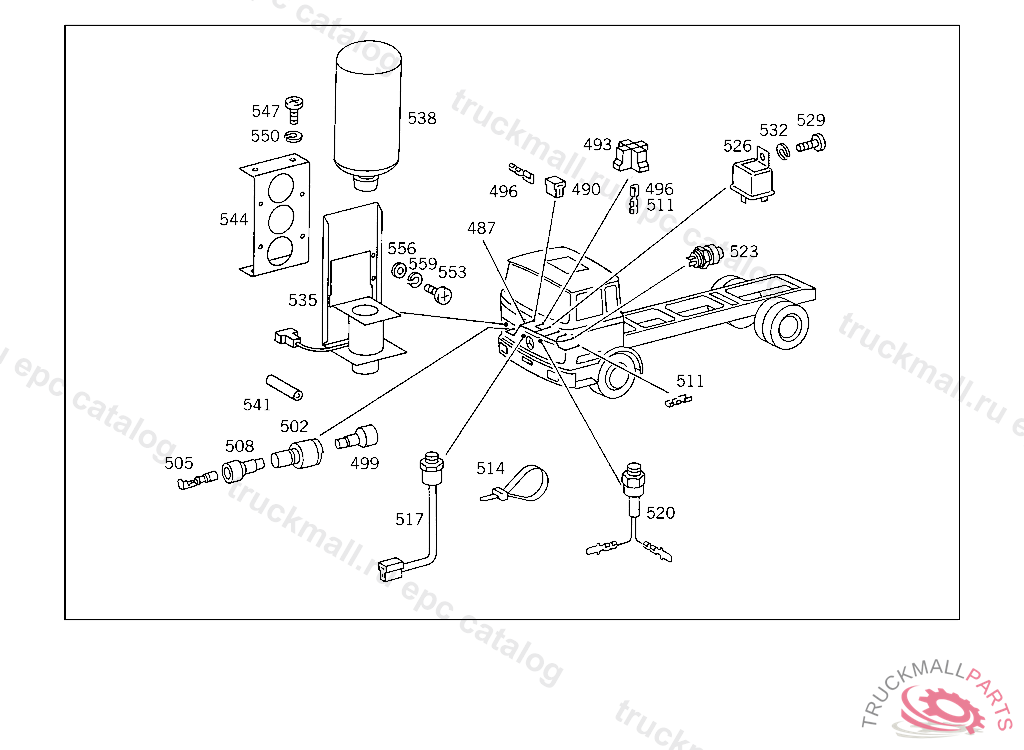

487
CABLE HARNESS COLD START SYSTEM
490
PIN BUSHING HOUSING BIPOLAR
493
PLUG HOUSING 5-POLE
496
PIN BUSHING , Replaced By: A0075458226
496
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
499
ROUND PLUG
502
PLUG SOCKET
505
BUSHING
508
GROMMET3.0 MM
511
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
511
PIN BUSHING , Replaced By: A0075458226
514
LOOM TIE
514
LOOM TIE , Replaced By: A0019978390
514
LOOM TIE , Replaced By: A0019978490
517
SWITCH,AUTOMATIC TEMPERATURE SWITCH
520
SENDER UNIT COLD START SYSTEM
523
SWITCH STARTER PILOT,591820
523
SWITCH STARTER PILOT,591820
526
RELAY ENGINE SHUT-OFF
526
RELAY , Replaced By: A6885427619
529
SCREW CONTROL UNIT
532
LOCK WASHER PLUG SOCKET
535
VALVE COLD START SYSTEM
538
PRIMER CAPSULE COLD START SYSTEM
541
PIPE COLD START SYSTEM, TO BE ADAPTED DURING ASSEMBLY
544
BRACKET COLD START SYSTEM TO ENTRANCE,INSIDE RIGHT
547
SCREW BRACKET TO ENTRANCE
550
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
553
SCREW CAP TO BRACKET
556
WASHER , Replaced By: N009021006208
559
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
CABLE SHOE
999
RESISTOR ALTERNATOR TERMINAL D+,C 068565
999
ELECTRIC CABLE ALTERNATOR,TERMINAL B-
999
ELECTRIC CABLE ALTERNATOR,TERMINAL B+
999
BULB , Replaced By: A3885447293
999
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
999
SWITCH STARTING CHANGE-OVER SWITCH
999
TAIL LAMP RIGHT "IAM",HB778140
999
SENDER UNIT BLINKER SYSTEM,KB850493
999
TAIL LAMP TAIL AND LICENSE PLATE LAMPS "IAM",HB778140
999
TACHOMETERVDO
999
CABLE HARNESS , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. HB778140, Replaced By: A3505409437
999
NEG. CABLE FROM BATTERY I TO BATTERY MASTER SWITCH
999
POSITIVE CABLE
999
INSTRUMENT CLUSTERVDO,652015
999
TACHOGRAPH , 308.300,302,304 FROM CHASSIS 642394 345.049 FROM CHASSIS 642394
999
DIAGRAM PAPER SET10 PACKS OF 7 PIECES
999
HORN
999
ELECTRIC CABLE FROM STARTING CHANGE-OVER SWITCH TO GROUND
999
PLUG TO PLUG THE FREE HOLES IN INSTRUMENT PANEL, 344.030-033,036-038.040,041,058 FROM CHASSIS 652015
999
COVERING CIGAR LIGHTER
999
GROMMET
999
POSITIVE CABLE , Replaced By: A3455407730
999
FUSE15A
999
FUSE8 A
999
GROMMET 34 MM
999
PLUG HOUSING BIPOLAR,4 231689
999
PIN BUSHING HOUSING , Replaced By: A0015458728
999
PIN BUSHING , Replaced By: A0005453726
