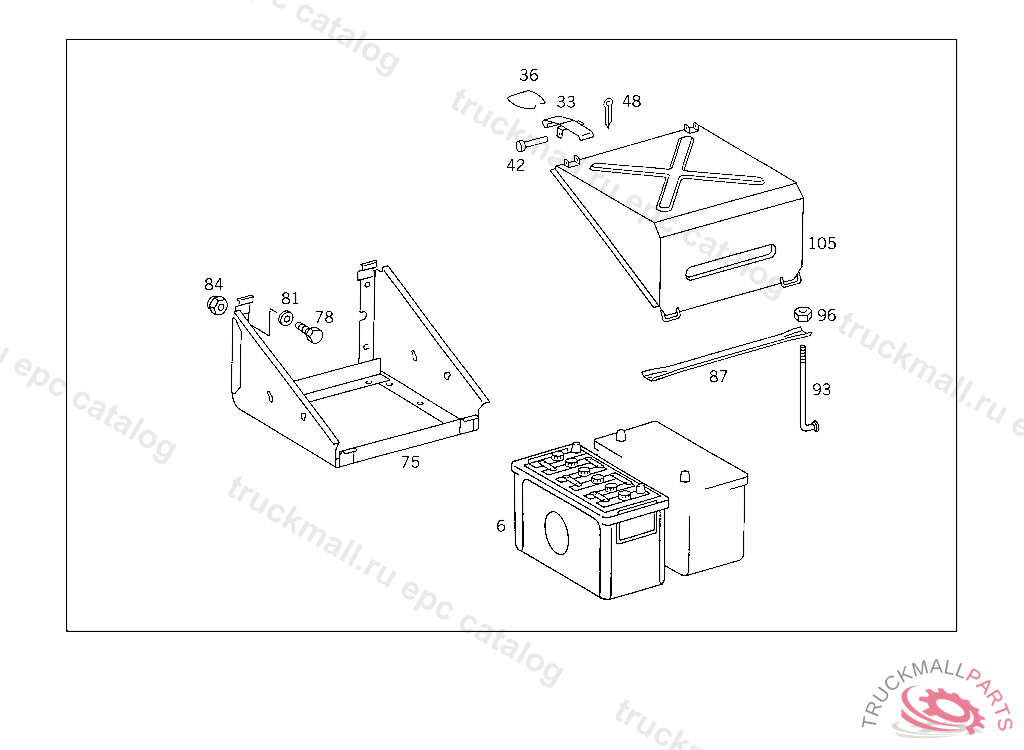

Поз.
Артикул
Описание
6
BATTERY , Replaced By: A3875400701
6
BATTERY CABLE HARNESS MOUNTING 12V/88 AH
33
MOUNTING BOW BATTERY,PB004444
36
BRACKET CLAMP TO BATTERY CASE,PB004444
42
PIN CLAMP TO BATTERY CASE,PB004444
48
COTTER PIN CLAMP TO BATTERY CASE,PB004444
75
BATTERY CASE
78
SCREW , Replaced By: N308676014012
78
SCREW BATTERY CASE TO SIDE MEMBER
81
WASHER BRACKET TO SIDE MEMBER,5 703114
81
WASHER BATTERY CASE TO SIDE MEMBER
84
NUT , Replaced By: N910113014000
87
MOUNTING RAIL ,776250
93
HOOK BATTERY,PB004444
96
NUT LEVER TO SHIFTING SHAFT
105
COVER BATTERY CASE
999
SEAL RING
999
SHEET METAL SCREW REFLECTOR TO BUMPER
