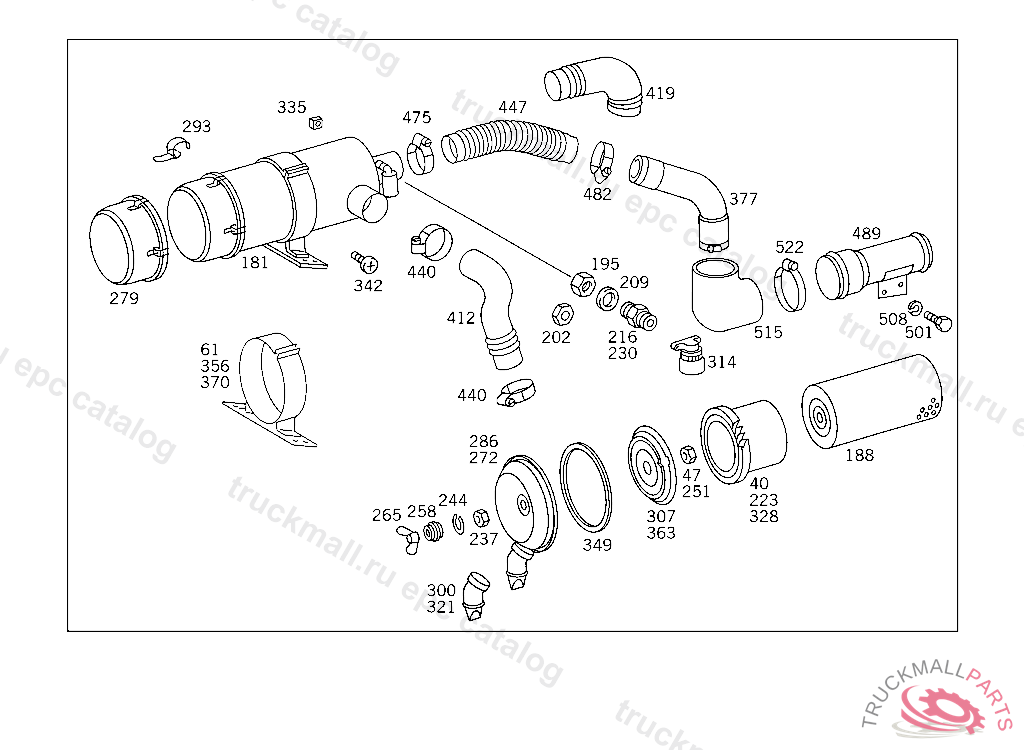

Поз.
Артикул
Описание
181
AIR CLEANERFRAM DO BRASIL
181
AIR CLEANER"MANN DO BRASIL", 030-041 FROM IDENT NO.: 679208
188
FILTER ELEMENTTO 376 090 82 04
188
FILTER ELEMENT
195
ADAPTER FITTINGTO 345 094 78 02,345 094 79 02
202
NUTTO 345 094 81 02,80 02,85 02
209
GASKETTO 000 094 11 68,345 094 71 68
216
THREADED UNIONTO 345 094 81 02,80 02,85 02
223
FILTER BOWLTO 376 090 96 01CICLONIZADOR
230
THREADED NIPPLETO 345 094 78 02,345 094 79 02
237
NUTTO 345 094 79 02,345 094 77 02
244
LOCKTO 345 094 78 02,308 094 76 02
251
NUT
258
SEAL RINGTO 345 094 78 02,345 094 79 02
265
NUTTO 345 094 78 02,345 094 79 02
272
FILTER BOWLTO 345 094 78 02,345 094 79 02
279
COVERTO 345 094 71 02,345 094 80 02
286
FILTER BOWLTO 345 094 80 02,81 02,85 02
293
FASTENERTO 376 090 96 01
300
VALVETO 376 090 96 01
307
BOTTOM PARTITION
314
VACUUM BOXTO 345 094 78 02,345 094 79 02
314
VACUUM BOXTO 345 094 80 02,78 02,81 02
321
SEPARATORTO 374 094 00 02
328
CYCLONE PRE-FILTER BOWLTO 345 094 77 02,345 094 78 02
335
NUT
335
NUT
342
SCREW
342
SCREW CABLE CONNECTOR TO BRACKET
349
GASKETTO 345 094 78 02
356
BRACKETTO 345 094 78 02,345 094 79 02,77 02
363
SCOOPTO 345 094 77 02
370
BRACKET
370
BRACKET
377
PIPE ELBOW , 401,402,403,406,407,408,420,424 FROM CHASSIS 12245602 INAPPLICABLE TO SUPERCHARGING SYSTEM
412
INTAKE PIPE
440
CLAMP. LOOM TIE90-110
440
CLAMP
447
HOSE
447
HOSE FROM PICO AIR CLEANER TO TURBOCHARGER
475
CLAMP100-120
475
CLAMP
482
CLAMP. LOOM TIE90-110
482
CLAMP
489
AIR INTAKE PIPE TURBOCHARGER
501
SCREW BRACKET TO DISC WHEEL M 8X16,D 315831
508
LOCK WASHER RAIL TO BATTERY SUPPORT
515
HOSE TURBOCHARGER
522
LOOM TIE. CLAMP
522
LOOM TIE. CLAMP AS REQUIRED
999
PIPE ELBOW , Replaced By: A3455207206
999
HOSE , Replaced By: A3450947182
999
FILTER ELEMENT ,12245601, Replaced By: A0010945204
999
FILTER BOWLTO 005 094 17 02, 032,033,040,041,132,133,140,141 FROM CAB 1500001 030-041 UP TO IDENT NO.: 679207
999
VACUUM BOX , Replaced By: A3450947068
999
AIR CLEANER , Replaced By: A3450947802
999
AIR CLEANER , Replaced By: A3450948002
999
STRAINER , Replaced By: A3440947003
999
PIPE ELBOW , Replaced By: A3445280807
999
AIR CLEANER (PAPER AIR CLEANER)
999
AIR CLEANER , Replaced By: A3440947202
999
AIR CLEANER , Replaced By: A3440947302
999
GASKET , Replaced By: A0000941027
999
HOSE AIR CLEANER, 352.00/1,353,358 FROM CHASSIS 676465-4 153178 ALSO INSTALLED ON 500001-515186,TYP 360 FROM CHASSIS 676465-4 153178
999
BRACKET AIR CLEANER
999
FASTENER , Replaced By: A0010940055
