Поз.
Артикул
Описание

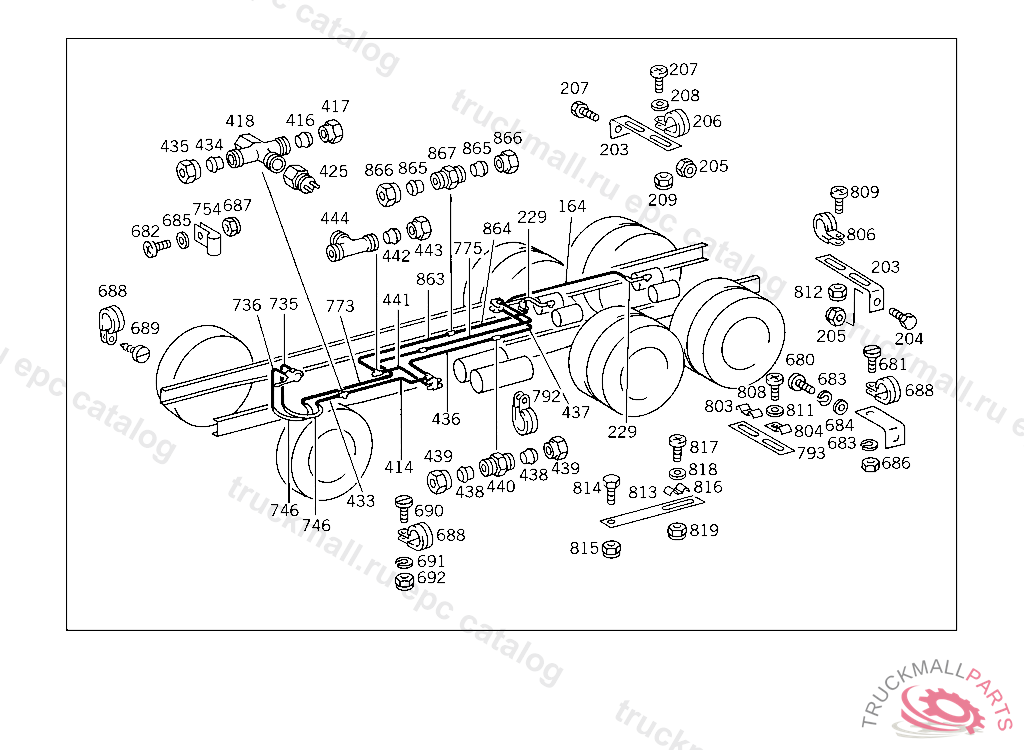

164
LINE FROM INTERMEDIATE PIECE TO REAR AXLE II BRAKE HOSE 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
203
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
203
BRACKET BRACKET TO FENDER BRACKET
203
BRACKET LINE MOUNTING
204
SCREW , Replaced By: N304017010040
204
SCREW LINES TO BRACKET
204
SCREW COLD START SYSTEM TO BRACKET
205
NUT BRACKET TO SIDE MEMBER,XB209706
205
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
205
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
206
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
206
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
207
SCREW CAP TO BRACKET
208
WASHER PLUG SOCKET TO BRACKET
209
NUT PUMP TO BRACKET
229
HOSE FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION: "12"
414
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING,684146
414
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING,684145
416
GLAND LINE CONNECTION
416
GLAND LINE CONNECTION
417
UNION NUT LINE CONNECTION
417
UNION NUT LINE CONNECTION
418
T-FITTING FITTING,5 461950
418
T-FITTING ,627034
433
LINE FROM HOSE TO FITTING 8X0.7 MM
434
GLAND LINE CONNECTION
435
UNION NUT LINE CONNECTION
436
LINE FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
437
LINE FROM FITTING TO RELAY VALVE 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
438
GLAND , Replaced By: A0019901967
439
UNION NUT LINE CONNECTION, Replaced By: N000000006239
440
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
440
CONNECTION FITTING , Replaced By: A0049971772
441
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING
442
GLAND , Replaced By: A0019901667
443
UNION NUT
444
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
444
FITTING
682
SCREW CAP TO BRACKET
685
WASHER LINE MOUNTING,HB746632684146
685
WASHER PLUG SOCKET TO BRACKET
687
NUT PUMP TO BRACKET
688
CLAMP LINE MOUNTING
688
CLAMP LINE MOUNTING
689
SHEET METAL SCREW LINE TO SIDE PANEL, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
690
SCREW CABLE TO FUSE BOX M 6X12
691
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
692
NUT PUMP TO BRACKET
735
LINE FROM T-FITTING TO HAND BRAKE VALVE, CONNECTION:,684145
736
LINE FROM HAND BRAKE VALVE TO COMPRESSED AIR HOSE,684145
746
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
746
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
754
CLAMP
754
CLAMP
754
CLAMP ,K 147121, Replaced By: N000000000319
754
CLAMP , Replaced By: N916016008200
754
CLAMP , Replaced By: A3604300143
773
LINE FROM COMPRESSED AIR HOSE TO FITTING,HB746632684146
773
LINE FROM COMPRESSED AIR HOSE TO FITTING,684145
775
LINE FROM FITTING TO RELAY VALVE 8X0.7 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
792
CLAMP COMPRESSED AIR LINE TO BRACKET
793
BRACKET PEDAL BEARING BRACKET
803
CLAMP COMPRESSED AIR LINE TO CROSS MEMBER
806
CLAMP ,K 147121, Replaced By: N000000000319
808
SCREW SHIFT CASE TO SLOTTED GATE
809
SCREW CABLE TO ALTERNATOR
811
WASHER PLUG SOCKET TO BRACKET
812
NUT PUMP TO BRACKET
813
BRACKET AT CROSS MEMBER
814
SCREW BRACKET TO SIDE MEMBER
815
NUT BRACKET TO SIDE MEMBER,XB209706
816
CLAMP BRACKET TO RIGHT SIDE MEMBER
817
SCREW CABLE TO ALTERNATOR
818
WASHER PLUG SOCKET TO BRACKET
819
NUT PUMP TO BRACKET
863
LINE FROM T-FITTING TO THREE-WAY VALVE 6X0,7 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
864
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
865
GLAND , Replaced By: A0019901667
866
UNION NUT
867
CONNECTION FITTING , Replaced By: A0039979172
999
PROTECTIVE CAP , Replaced By: A0004217187
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
999
DISTRIBUTOR , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
DIAPHRAGMTO 001 429 48 44
999
T-FITTING AIR RESERVOIR I
999
KAPPENVENTIL. VALVETO 002 430 31 01,344 430 80 01
999
BOTTOM VALVE. VALVE , Replaced By: A0015861543
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
STRAINERTO 002 430 31 01
999
LOCK
999
WASHER , Replaced By: A0004311176
999
FILTER BOTTOMTO 000 431 24 14
999
DICHTSCHEIBE. SEAL RING
999
CUPTO 045 430 00 01
999
FILLER CAP , Replaced By: A0004315133
999
THREADED UNIONTO 002 430 41 01
999
PROTECTIVE CAP BRAKE BOOSTER
999
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
FILLER RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
GASKET34X2X6 MM,GRAU
999
RESERVOIR , Replaced By: A0014317702, +001A0004315433
999
VALVE SEATWABCO,002 0,012 0
999
VALVE SEATGRAU
999
RODTO 001 430 99 01, UP TO CHASSIS 47018
999
VALVEWABCO,002 0,012 0
999
STRAINERTO 001 430 99 01, UP TO CHASSIS 47018
999
CUP , NO LONGER AVAILABLE INDIVIDUALLY
999
VALVE , Replaced By: A0014295244
999
PISTON HYDRAULIC BRAKE
999
PISTONTO 001 430 99 01, UP TO CHASSIS 47018
999
CUP , WITH BOSCH CHARACTERISTIC NUMBER 723, Replaced By: A0004312786, +001A0004318583
999
CAPTO 001 431 71 14
999
SPRING
999
SPRINGWABCO,002 0,012 0
999
SPRINGWABCO,002 0,012 0
999
SNAP RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
SPRING
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
SPRING , Replaced By: A0014316493
999
SPRING IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 001 431 40 93, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPRINGTO 001 431 83 05
999
REPAIR KITTO 000 430 47 81
999
SEAL RING BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
999
SEAL RING
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
STRAINER , Replaced By: A0004310034
999
LOCK , Replaced By: A3454317194
999
WASHER , Replaced By: A3454317076
999
WASHER , Replaced By: A3454317376
999
CUP , Replaced By: A3454317286
999
SPRINGTO 000 431 21 14
999
PISTON
999
SEAL RING6.07X1.78 MM,WABCO,002 0,012 0
999
SEAL RING12.42X1.78 MM,WABCO,002 0,012 0
999
SEAL RING17.12X2.62 MM, 402,407 FROM CHASSIS 657000
999
HOLLOW SCREWTO 000 430 27 01, NOT USED USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRAKE LINING STANDARD 15.50 MM LONALFEX, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE I 16.5 MM
999
BRAKE LINING REPAIR SIZE II 17.5 MM
999
BRAKE LINING STANDARD 15.70 MM,FRAS-LE, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE I 16.70 MM,FRAS-LE, FROM UP TO FRONT AXLE 2219487, FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 815
999
BRAKE LINING REPAIR SIZE II 17.70 MM,FRAS-LE, UP TO FRONT AXLE 2219487,FROM FRONT AXLE 2219488 SEE SPARE PARTS LIST 732.7
999
HOLLOW SCREW DISTRIBUTOR TO MASTER CYLINDER
999
DISTRIBUTOR
999
DISTRIBUTORTO 002 430 27 01, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185 NOT USED
999
WASHERTO 002 430 71 01
999
SPRING RETAINERTO 345 431 72 14
999
LOCKTO 345 430 77 01
999
CUPTO 344 430 73 01,002 430 27 01
999
WASHERTO 344 430 73 01,002 430 27 01
999
BRACKET HAND BRAKE VALVE
999
BRAKE SHOE WITH LINING, UP TO FRONT AXLE 1502306 AND REAR AXLE 00400
999
BRAKE LINING , Replaced By: A3454217010
999
BRAKE LINING , Replaced By: A3454217110
999
BRAKE LINING , Replaced By: A3454217210
999
AIR CLEANER , Replaced By: A0004313934
999
COVER , Replaced By: A0004312892
999
SPACER WASHER , Replaced By: A0049978045
999
SEAL RING , Replaced By: A0049978045
999
CUP , Replaced By: A0004318083
999
ROD , Replaced By: A0004312892
999
CUPTO 000 431 34 14
999
RODTO 000 431 34 14
999
SPRING , Replaced By: A0014316493
999
SPRING , Replaced By: H983454310793
999
SPRINGTO 345 431 72 14
999
SPRING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SPRINGTO 000 431 34 14
999
CUPTO 000 431 34 14
999
REPAIR KIT , Replaced By: A0455860542
999
SCREW ,511032
999
SEAL RINGTO 002 430 41 01
999
SEAL RINGTO 002 430 41 01,27 01,045 430 00 01
