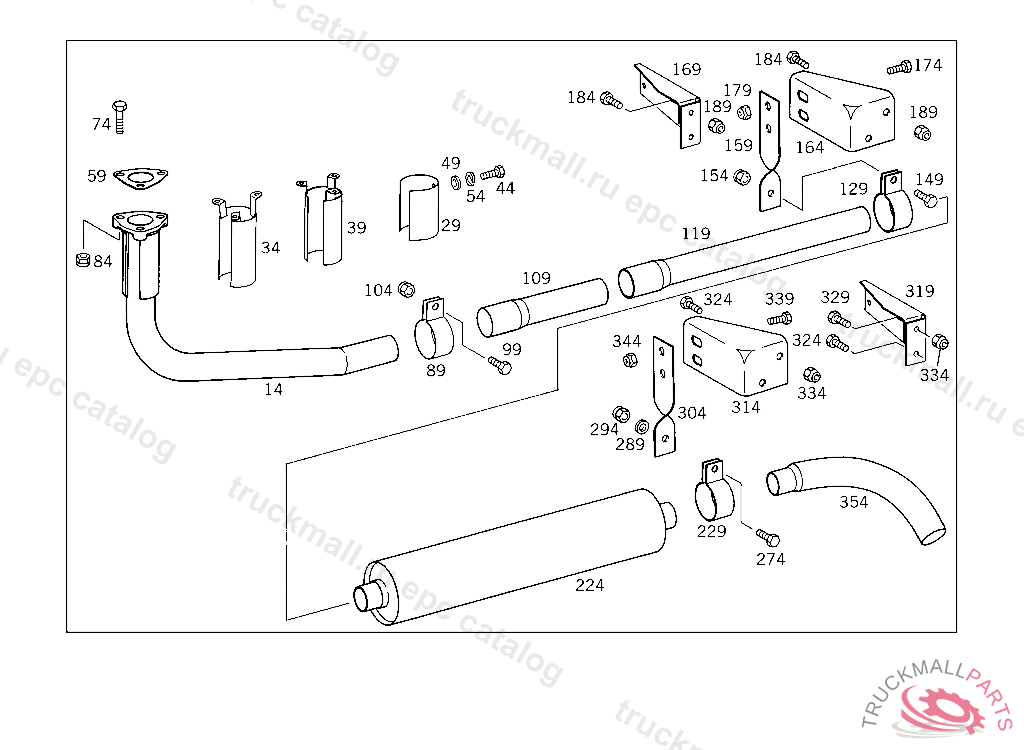

Поз.
Артикул
Описание
84
NUT CONNECTOR TO EXHAUST MANIFOLD
84
NUT , Replaced By: A3459900251
129
CLAMP FRONT EXHAUST PIPE TO BRACKET
159
BRACKET EXHAUST PIPE,588185
159
BRACKET EXHAUST PIPE,588186
164
SUPPORT EXHAUST PIPE,588185
169
SUPPORT ,588186
174
SCREW PLUG SOCKET TO FRAME
179
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
179
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
184
SCREW LINES TO BRACKET
184
SCREW POWER CYLINDER TO BEARING BRACKET
189
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
189
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
EXHAUST MUFFLER
229
CLAMP SUPPORT TO SIDE MEMBER 75.5 MM
304
BRACKET EXHAUST PIPE,588185
304
BRACKET EXHAUST PIPE,588186
314
SUPPORT EXHAUST PIPE,588185
319
SUPPORT ,588186
324
SCREW LINES TO BRACKET
329
SCREW POWER CYLINDER TO BEARING BRACKET
334
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
334
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
339
SCREW PLUG SOCKET TO FRAME
344
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
344
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
BRACKET , Replaced By: A3454907140
999
EXHAUST PIPE , Replaced By: A3454908919
999
SUPPORT EXHAUST PIPE,4 613839
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
