Поз.
Артикул
Описание
5

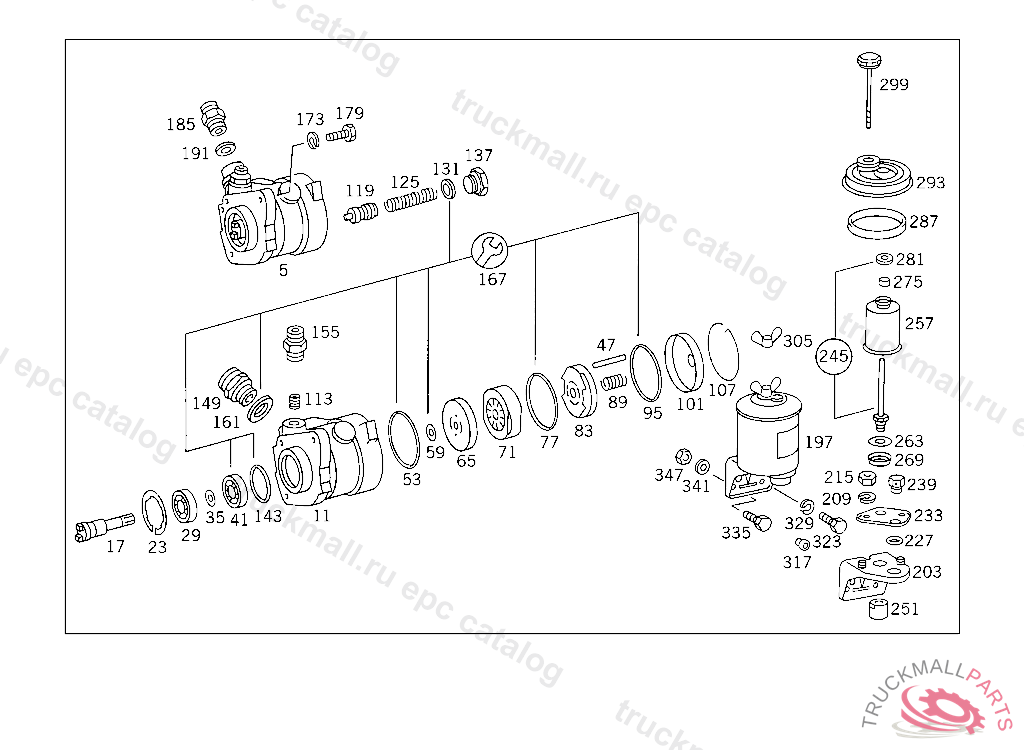

HYDRAULIC PUMP , 971 884624 YEAR OF MANUFACTURE 1988 974 884624 YEAR OF MANUFACTURE 1988 971 900987-962193-999999 YEAR OF MANUFACTURE 1988-1990 974 900987-906764-999999 YEAR OF MANUFACTURE 1988-1990, Replaced By: A0004606680
5
HYDRAULIC PUMP , Replaced By: A0004602480
5
HYDRAULIC PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 166242YEAR OF MANUFACTURE 1991 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0004602480
11
HOUSINGTO 000 466 67 01
17
DRIVE SHAFT001 466 72 01/73 01,000 460 24 80,
29
BALL BEARING
35
SNAP RINGTO 376 466 77 01
41
SEAL RING
47
DOWEL PINTO 001 466 77 01
53
SEAL RINGTO 000 460 26 80
59
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
65
COVER DRIVE TO 000 466 70 01,001 466 27 01
65
COVER000 460 24 80/25 80,001 466 06 01
71
SET OF ROTORS
77
SEAL RINGTO 000 460 23 80
83
COVER
83
COVER , Replaced By: A0004668005
83
COVER , Replaced By: A0004667205
83
COVER , Replaced By: A0004663505
89
SPRINGTO 000 460 23 80
95
SEAL RING
101
COVERTO 000 460 23 80
101
COVER , Replaced By: A0004666505
107
SNAP RINGTO 000 460 23 80
113
CARTRIDGETO 345 466 00 01
119
PISTON
119
PISTON , Replaced By: A0004664583
125
SPRING
131
SEAL RING LINE CONNECTION
137
SCREW PLUGTO 000 460 23 80
143
SEAL RINGTO 000 460 23 80
149
FITTINGTO 345 466 00 01
155
FITTINGTO 345 466 00 01
161
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
167
REPAIR KIT (GASKET KIT),POWER STEERING PUMP
173
LOCK WASHER , Replaced By: N912004010102
179
SCREW , Replaced By: N304017010040
185
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
191
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
197
OIL TANK , 341.250 FROM CHASSIS A 002104
203
BRACKETTO 345 466 70 02
209
LOCK WASHER RAIL TO BATTERY SUPPORT
215
NUT LEVER TO SHIFTING SHAFT
227
SEAL RINGTO 000 466 38 02
233
REINFORCEMENT , Replaced By: A0004660095
239
FITTING , Replaced By: A0004660571
239
FITTING ,12068000, 344.030,031,032,03312009117, 345.001,002,003,300
245
FILTER SUPPORT
251
CONNECTOR ,12068000, 344.030,031,032,03312009117, 345.001,002,003,300
257
FILTER ELEMENT ,D 441028D 523393
263
CENTERING RINGTO 000 466 38 02
269
RUBBER SLEEVETO 000 466 38 02
275
SPACER TUBETO 000 466 38 02
281
WASHER , Replaced By: A9402680552
287
SEAL RINGTO 000 466 38 02
293
COVER , Replaced By: A0004664405
299
OIL DIPSTICK
305
NUT , Replaced By: A3259900562
317
GLAND , Replaced By: A0019901267
323
SCREW BRACKET TO SIDE MEMBER
329
LOCK WASHER , Replaced By: N912004010102
335
SCREW BRACKET TO SIDE MEMBER
341
WASHER GROUND CABLE
347
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
ELBOW FITTING OIL TANK
999
OIL TANK , Replaced By: A3214600883
999
SEAL RING , Replaced By: A0059970848
999
SPRING , Replaced By: A0059934201
999
FILTER CARRIERTO 000 466 38 02
999
ELBOW FITTING TWO-WAY VALVE
999
DRIVE SHAFT , Replaced By: A0004661720
999
BRACKET , Replaced By: A0004660640
