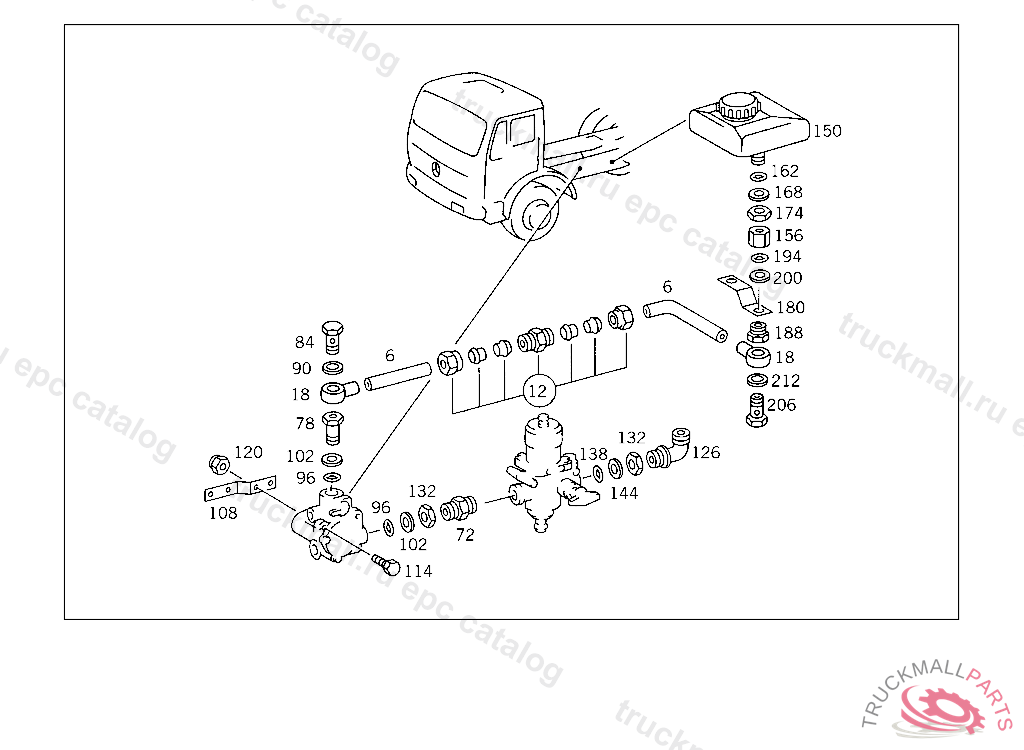

Поз.
Артикул
Описание
6
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
12
FITTING , Replaced By: A0029905971
12
FITTING (PARTS KIT),LINE RUPTURE
18
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
72
FITTING SHUTTLE VALVE,CONNECTION: "20"
78
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
84
HOLLOW SCREW HEATING CONNECTION
90
SEAL RING LINE CONNECTION
96
O-RING CHECK VALVE TO AIR RESERVOIR
102
THRUST RING CHECK VALVE TO AIR RESERVOIR
102
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
108
BRACKET COMPRESSED AIR LINES,K 168169
114
SCREW VALVE TO CAB M 8X85
120
NUT , Replaced By: N913004008001
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
126
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
132
NUT CHECK VALVE TO AIR RESERVOIR
138
O-RING CHECK VALVE TO AIR RESERVOIR
144
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
144
THRUST RING CHECK VALVE TO AIR RESERVOIR
150
RESERVOIR ANTI-FREEZE DEVICE
150
RESERVOIR , Replaced By: A0024311602, +001A0004317833
156
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
162
O-RING CHECK VALVE TO AIR RESERVOIR
168
THRUST RING CHECK VALVE TO AIR RESERVOIR
168
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
174
NUT CHECK VALVE TO AIR RESERVOIR
180
BRACKET HYDRAULIC RESERVOIR
188
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
194
O-RING CHECK VALVE TO AIR RESERVOIR
200
THRUST RING CHECK VALVE TO AIR RESERVOIR
200
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
206
HOLLOW SCREW HEATING CONNECTION
212
SEAL RING LINE CONNECTION
999
ELBOW FITTING ,5 433281
999
WASHER CONSOLE TO CONSOLE
