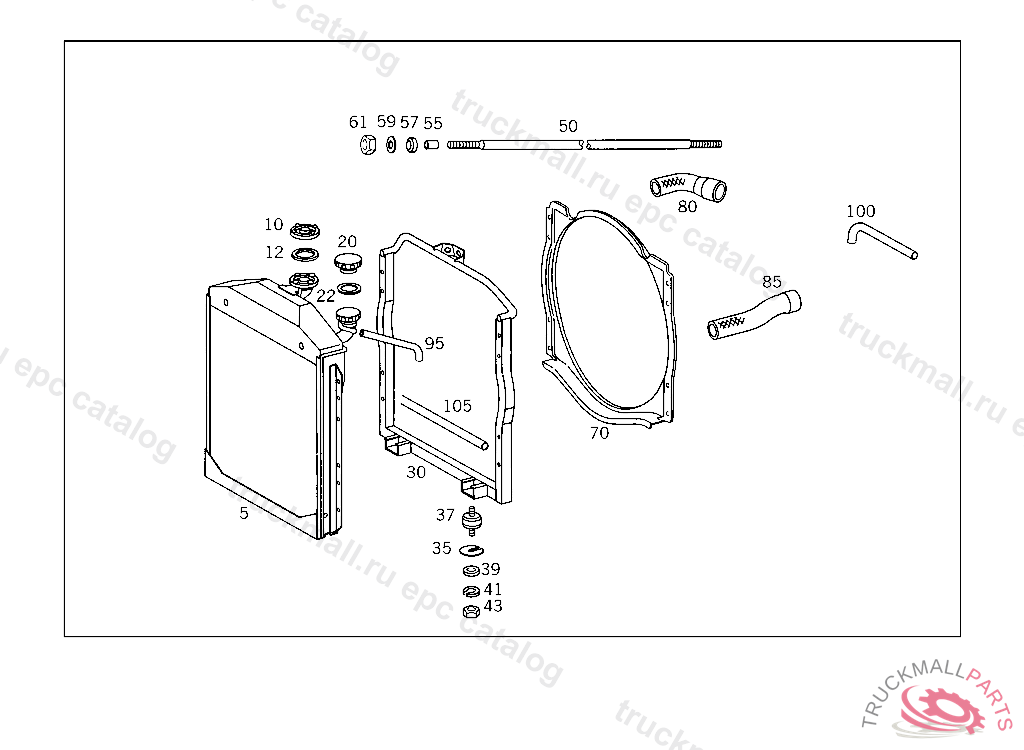

Поз.
Артикул
Описание
5
RADIATORHAUGG,4 787609
5
RADIATOR ,4 787608, Replaced By: A3465005903, +001A3465015982
5
RADIATORBEHR
5
RADIATOR , Replaced By: A3465005803, +001A3465015982
10
RADIATOR CAPTO 346 500 50 03,4 2993464 787608
12
GASKET
20
RADIATOR CAPTO 346 500 54 03,4 299346
22
GASKETTO 346 500 54 03
30
SUPPORT , Replaced By: A3355001127
30
SUPPORT , 007551
35
SHIM , L FROM CHASSIS 000151 ALSO INSTALLED ON 000087-000092,000098-000107,000143,LP FROM CHASSIS 000067
37
RUBBER MOUNTING
39
WASHER BRACKET TO COVERING
39
WASHER , Replaced By: N009021010209
41
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
43
NUT BRACKET TO SUPPORT AND TO END PIECE
50
RADIATOR STRUT
55
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
57
RUBBER RING SHOCK ABSORBER MOUNTING
59
WASHER BRACKET TO COVERING
59
WASHER , Replaced By: N009021010209
61
NUT BRACKET TO SUPPORT AND TO END PIECE
70
AIR BAFFLE
80
HOSE FROM INLET,OR COOLING WATER LINE,TO THERMOSTAT
85
HOSE LOWER COOLING WATER LINE TO RADIATOR & OIL COOLER
95
HOSE DE-AERATION
100
HOSE HEATING PIPE
105
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
VALVE WATER DRAIN
999
GASKETTO 000 501 49 15
999
RADIATOR CAPTO 346 500 54 03,4 299345
999
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
999
HOSE OVERFLOW
999
RADIATOR STRUT , Replaced By: A3385000045
999
HOSE DE-AERATION AT UPPER COOLING WATER PIPE, FROM IDENT NO. 4 742813 EXCEPT FOR 4 743433-4 745018,4 745860-4 746037
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP HOSE FASTENING 50-70X13 MM
999
SCREW , Replaced By: N304017008043
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SCREW VALVE TO BRACKET M 8X55
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
999
CLAMP , Replaced By: N000000000672
