Поз.
Артикул
Описание
5

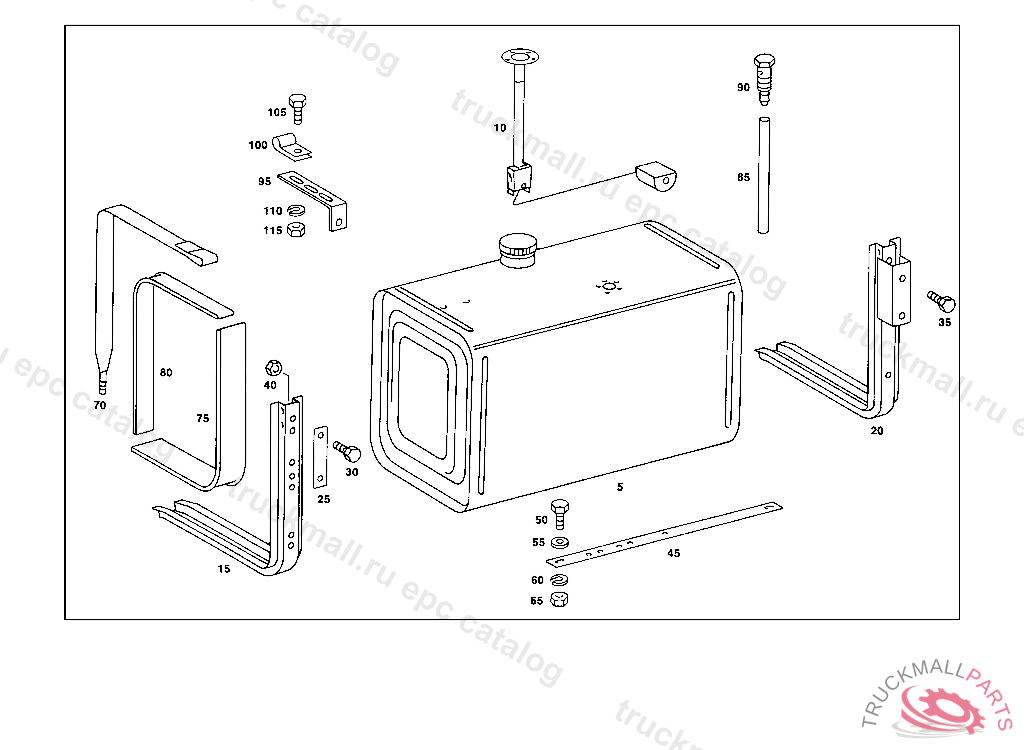

FUEL TANK400 L.,4 399369
5
FUEL TANK , Replaced By: A3874700701, +001A0085428117
10
SENDER UNIT
15
CONSOLE REAR EXHAUST PIPE TO CONSOLE
20
SUPPORT REAR, TO BE ADAPTED DURING ASSEMBLY
25
BASE APPARATUS SUPPORT TO FRAME SIDE MEMBER
30
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
30
SCREW , Replaced By: N308676014020
35
SCREW BRACKET TO CAB CONSOLE,K 035197
40
NUT BRACKET TO SIDE MEMBER,K 035196
40
NUT , Replaced By: N308673014001
45
REINFORCEMENT FUEL TANK CONSOLE
50
SCREW CONSOLE TO SIDE MEMBER
55
WASHER
60
LOCK WASHER FITTING TO BRACKET
65
NUT STRAP TO SUPPORT
70
STRAP FUEL TANK TO SUPPORT
75
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
80
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
85
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
90
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
95
BRACKET OIL LINE MOUNTING
100
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
100
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
105
SCREW LICENSE PLATE TO BRACKET
105
SCREW , Replaced By: N304017006020
110
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
115
NUT BALL PIVOT TO LEVER
999
SENDER UNIT FUEL GAUGE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
999
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
999
SUPPORT , Replaced By: A3354704542
999
PAD , Replaced By: A3634750120
999
RUBBER SECTION , Replaced By: A3634750320
999
RUBBER SECTION RESERVOIR, ORDER BY THE METER
999
BRACKET FUEL LINE
999
SUPPORT , Replaced By: A3874703142
999
STRAP FUEL TANK,4 492432
999
FUEL TANK200 L, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310
999
RISING PIPE , Replaced By: A0089975482, +001A3609900263
999
FUEL TANK , Replaced By: A3634700801
999
ELECTRIC CABLE
999
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET
999
SCREW CABLE GUIDE TO SIDE MEMBER
