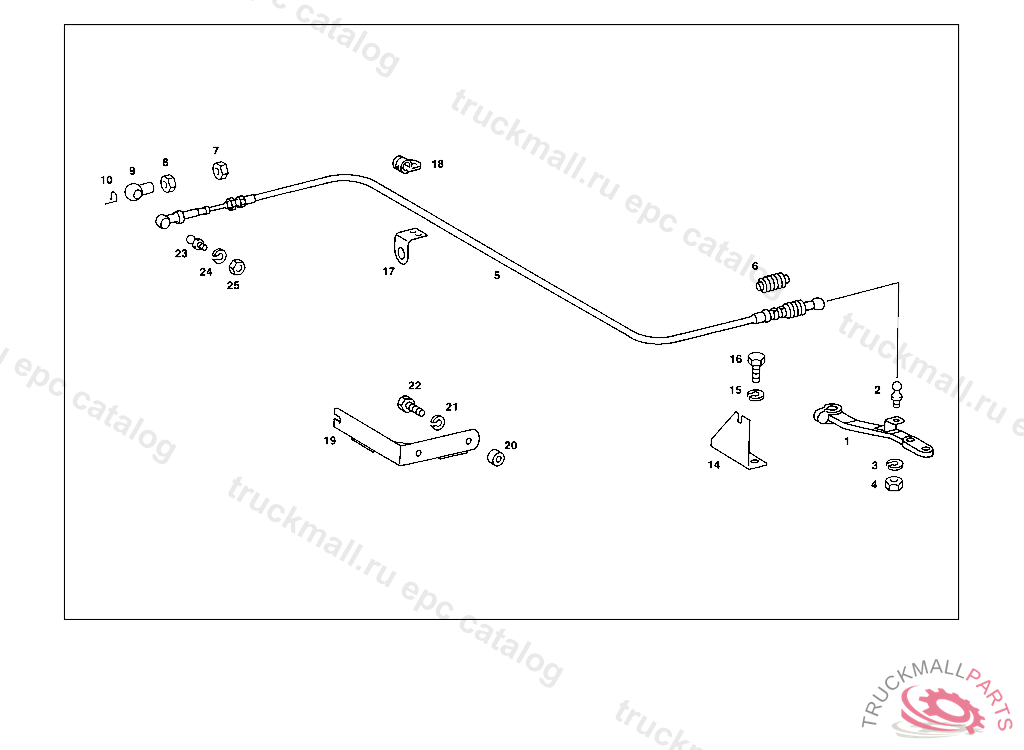

Поз.
Артикул
Описание
1
SHIFT LEVER P.T.O.
2
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
2
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
2
BALL PIVOT , Replaced By: N071803010102
3
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
4
NUT BALL PIVOT TO LEVER
5
WIRE CABLE LIMITATION OF ENGINE SPEED
5
WIRE CABLE LIMITATION OF ENGINE SPEED
6
BOOT
7
NUT
7
NUT , Replaced By: N304035008001
8
NUT BALL PIVOT TO LEVER
9
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
10
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
14
BRACKET TRANSMISSION CASE
15
LOCK WASHER FITTING TO BRACKET
16
SCREW BRACKET TO TRANSMISSION
16
SCREW , Replaced By: N308676012038
17
ANGLE BELL HOUSING
18
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
18
CLAMP ,K 147121, Replaced By: N000000000319
19
BRACKET WIRE CABLE TO ENGINE
20
WASHER BRACKET TO ENGINE
21
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
22
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
22
SCREW , Replaced By: N304017008027
23
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
23
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
23
BALL PIVOT , Replaced By: N071803010102
24
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
25
NUT BALL PIVOT TO LEVER
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SHIFT LEVER P.T.O. SHIFT LEVER
999
CLAMP , Replaced By: N916016008200
