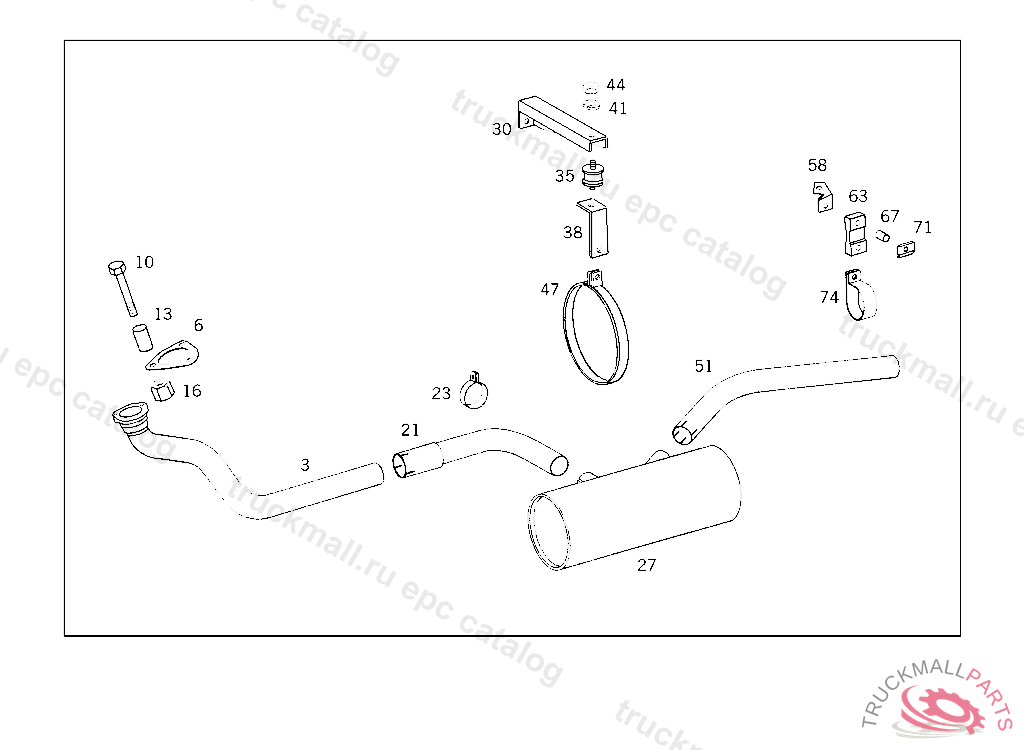

Поз.
Артикул
Описание
3
EXHAUST PIPE FRONT,FRONT PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
6
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
6
FLANGE GASKET , Replaced By: A4424920080
6
FLANGE GASKET , Replaced By: A3024900080
10
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M 12 X 90
13
SPACER TUBE FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
16
NUT CONNECTOR TO EXHAUST MANIFOLD
21
FRONT EXHAUST PIPE FRONT,REAR PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
23
CLAMP ATTACHMENT FOR CHARGE AIR PIPE,HOT
27
EXHAUST MUFFLER
30
SUPPORT EXHAUST MUFFLER SUSPENSION, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
35
RUBBER MOUNTING
38
BRACKET EXHAUST MUFFLER
41
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
44
NUT BRACKET TO SUPPORT AND TO END PIECE
47
CLAMP EXHAUST MUFFLER TO BRACKET
47
CLAMP , Replaced By: A3874900041
51
REAR EXHAUST PIPE
51
REAR EXHAUST PIPE
58
BRACKET EXHAUST PIPE TO CROSS MEMBER
63
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
67
SPACER TUBE FRONT EXHAUST PIPE,B 884219
71
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
74
CLAMP REAR EXHAUST PIPE TO BRACKET
999
CLAMP INTERMEDIATE PIECE
999
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
999
REPAIR KIT , Replaced By: A3094900037
999
FRONT EXHAUST PIPE , Replaced By: A3664920201
999
FRONT EXHAUST PIPE , Replaced By: A3664920201
999
EXHAUST MUFFLER , Replaced By: A3464900101
999
EXHAUST MUFFLER , Replaced By: A3464900101
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREWM 8X40
999
SCREW CONNECTOR TO EXHAUST MANIFOLD
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017010002
999
NUT STRAP TO SUPPORT
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW BRACKET TO SIDE MEMBER
999
NUT STRAP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
