Поз.
Артикул
Описание

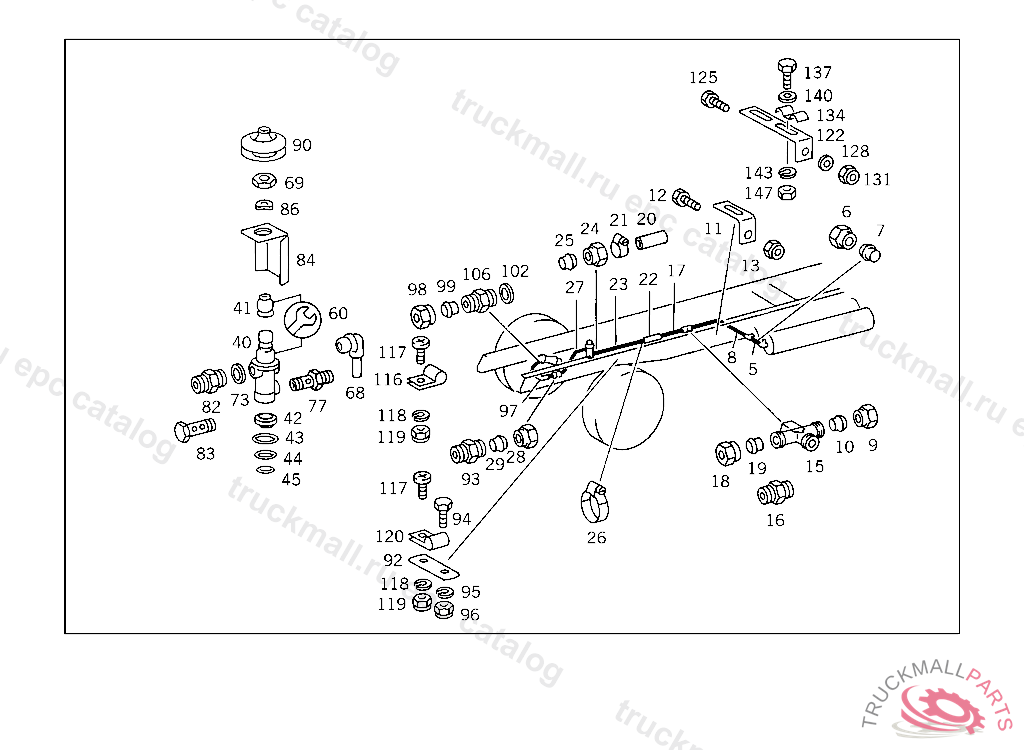

5
LINE FROM OVERFLOW VALVE TO CONNECTING HOSE 8X0.7 MM,600892
5
LINE FROM OVERFLOW VALVE TO CONNECTING HOSE 8X0.7 MM,600893
5
LINE8X0.7 MM, LENGTH AVAILABLE: 6000 MM
6
UNION NUT LINE CONNECTION
7
GLAND LINE CONNECTION
8
LINE FROM CONNECTOR I TO CONNECTOR II 8X0.7 MM,600892
9
UNION NUT LINE CONNECTION
10
GLAND LINE CONNECTION
11
BRACKET , Replaced By: A3812950440
12
SCREW POWER CYLINDER TO BEARING BRACKET
13
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
13
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
15
T-FITTING ,627034
15
T-FITTING ,627034
16
FITTING , Replaced By: A0039978972
16
FITTING , Replaced By: A0039978972
16
CONNECTION FITTING ,880809
16
CONNECTION FITTING ,880809
17
LINE FROM HOSE TO FITTING 8X0.7 MM
17
LINE FROM HOSE TO FITTING 8X0.7 MM
18
UNION NUT LINE CONNECTION
19
GLAND LINE CONNECTION
20
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
21
CLAMP , Replaced By: N916017011001
21
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
22
BRAKE HOSE COMPRESSED AIR LINE, ORDER BY THE METER5 062721
23
LINE FROM HOSE TO FITTING 8X0.7 MM
24
UNION NUT LINE CONNECTION
25
GLAND LINE CONNECTION
26
CLAMP , Replaced By: N916017011001
26
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
26
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
27
LINE OPERATING VALVE TO BRACKET 6X0.7 MM, UP TO IDENT NO. 680088
28
UNION NUT
29
GLAND , Replaced By: A0019901667
40
VALVE , Replaced By: A0004342401
40
VALVE"KNORR"
40
VALVE"WABCO DO BRASIL"
41
PROTECTIVE CAPTO 000 434 08 01,345 434 71 01
42
SEAL RINGTO 000 434 30 01
43
SEAL RINGTO 000 434 30 01
44
SEAL RINGTO 000 434 30 01
45
SEAL RINGTO 000 434 30 01
60
REPAIR KIT , Replaced By: A0004304106
60
REPAIR KIT LARGE SCOPE TO 000 434 30 01
60
REPAIR KIT SMALL SCOPE TO 000 434 30 01
60
REPAIR KIT , Replaced By: A0034301281
60
REPAIR KIT SMALL SCOPE TO 345 434 71 01
60
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
68
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
69
NUT SUCTION LINE TO OIL PUMP
73
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
73
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
77
FITTING , Replaced By: N915039008101
77
HOLLOW SCREW FITTING DISTRIBUTOR,CONNECTION: "5"
82
DOUBLE FITTING , Replaced By: A0019972872
82
DOUBLE FITTING , Replaced By: A0019972872
82
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
82
SCREW-IN FITTING LINE CONNECTION
82
FITTING LINE CONNECTION, Replaced By: N000000006446
83
HOLLOW SCREW LINE CONNECTIONS,4 188090
84
PROTECTIVE PLATE OPERATING VALVE TO SIDE MEMBER SHELL
86
SPRING WASHER AT CAB FLOOR
90
GROMMET OPERATING VALVE TO SIDE MEMBER SHELL
92
BRACKET
93
CONNECTION FITTING , Replaced By: A0039979172
94
SCREW PLUG SOCKET TO FRAME
95
LOCK WASHER RAIL TO BATTERY SUPPORT
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
97
HOSE
98
UNION NUT
99
GLAND , Replaced By: A0019901667
102
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
106
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
106
DOUBLE FITTING , Replaced By: A0019972872
116
CLAMP LINE MOUNTING
117
SCREW CAP TO BRACKET
117
SCREW CAP TO BRACKET
118
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
119
NUT PUMP TO BRACKET
120
CLAMP , Replaced By: A3604300143
120
CLAMP , Replaced By: N916016008200
120
CLAMP ,K 147121, Replaced By: N000000000319
122
BRACKET , Replaced By: A3464296040
125
SCREW POWER CYLINDER TO BEARING BRACKET
125
SCREW CLAMP TO BRACKET
128
WASHER PLUG SOCKET TO BRACKET
131
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
131
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
131
NUT PUMP TO BRACKET
134
CLAMP
137
SCREW CLAMP TO BRACKET
140
WASHER PLUG SOCKET TO BRACKET
143
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
147
NUT
999
LINE , Replaced By: A3504202426
999
LINE FROM CONNECTING HOSE TO VENT VALVE 8X0.7 MM,526017600892
