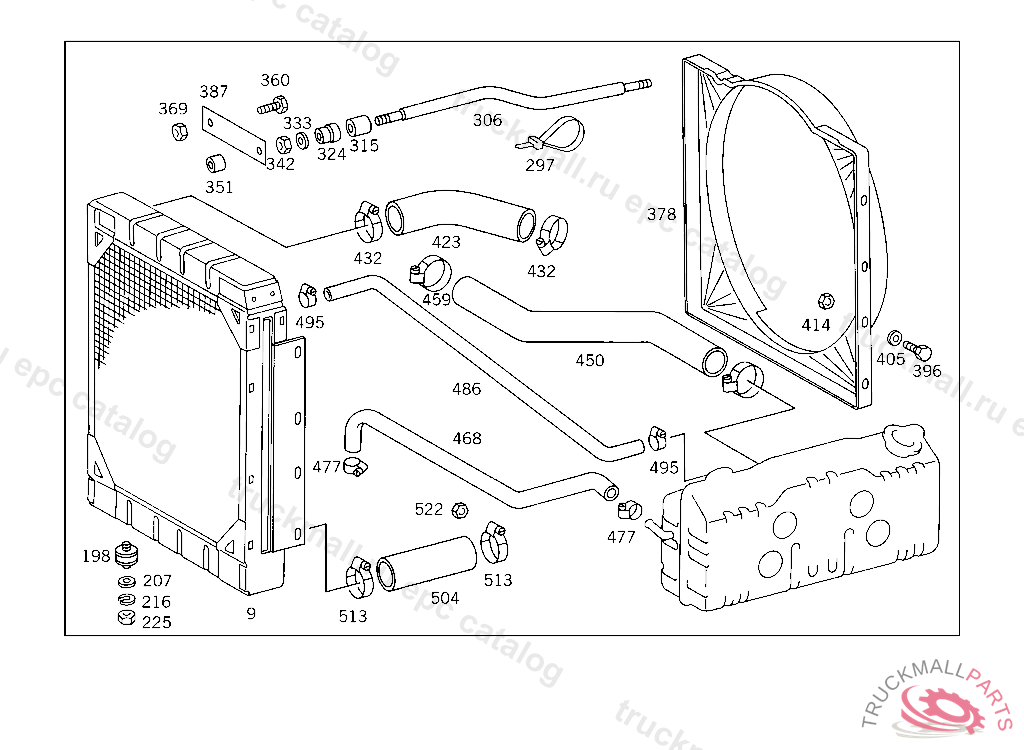

Поз.
Артикул
Описание
9
RADIATOR
198
RUBBER MOUNTING
207
WASHER GROUND CABLE
216
LOCK WASHER , Replaced By: N912004010102
225
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
297
LOOM TIE ELECTRIC CABLE MOUNTING
297
LOOM TIE , Replaced By: A3459977390
306
RADIATOR STRUT RIGHT
306
RADIATOR STRUT LEFT
315
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
324
RUBBER RING SHOCK ABSORBER MOUNTING
333
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
342
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
351
PIPE
360
SCREW BRACKET TO DISC WHEEL M 8X16,D 315831
369
NUT
378
FAN SHROUD
387
BRACKET
396
SCREW RADIATOR M 10X45
405
WASHER GROUND CABLE
414
NUT BRACKET TO SIDE MEMBER,XB209706
423
HOSE COOLING WATER INLET TO THERMOSTAT
432
LOOM TIE (DRY FILTER)
432
CLAMP. LOOM TIE (DRY FILTER)
432
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
432
CLAMP HOSE FASTENING 50-70X13 MM
432
CLAMP , Replaced By: N000000000672
450
HOSE FROM WATER PUMP TO EXPANSION TANK 28X42X650MM,630855
459
CLAMP EXPANSION TANK
459
LOOM TIE HOSE TO FILLER NECK
459
CLAMP HOSE TO FILLER NECK
459
LOOM TIE , Replaced By: A3509978190
468
HOSE COOLING WATER LINE TO EXPANSION TANK 12X24X640 MM,630855
468
HOSE FROM EXPANSION TANK TO RADIATOR
477
CLAMP AIR COMPRESSOR
477
CLAMP EXPANSION TANK
477
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
477
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
477
LOOM TIE HOSE TO HEATING PIPE
486
HOSE18X20X440 MM,630855
495
CLAMP FROM EXPANSION TANK TO ENGINE
495
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
495
CLAMP HOSE TO FITTING AND TO OIL TANK
495
LOOM TIE. CLAMP HOSE TO HEATING PIPE
504
HOSE FROM RADIATOR TO OIL COOLER
513
CLAMP HOSE FASTENING 50-70X13 MM
513
CLAMP , Replaced By: N000000000672
513
LOOM TIE (DRY FILTER)
513
CLAMP. LOOM TIE (DRY FILTER)
513
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
522
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
522
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
COOLING WATER PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE 28X36X110 MM, NOT USED
999
HOSE FROM EXPANSION TANK TO HEATING PIPE 28X36X90 MM, NOT USED
999
CLAMP AIR INTAKE PIPE
999
NUT TACHOGRAPH TO BRACKET
