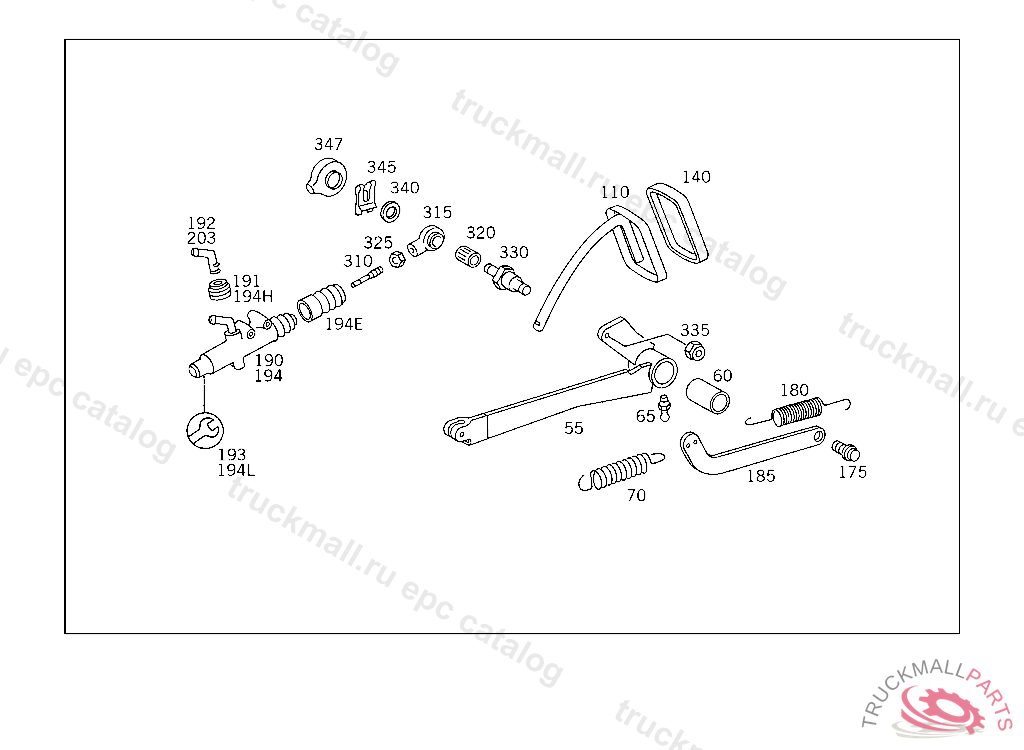

Поз.
Артикул
Описание
55
60
BUSHING
65
GREASE NIPPLE PROTECTIVE TUBE
70
SPRING , Replaced By: A3649937010
110
140
PAD BRAKE PEDAL
194
MASTER CYLINDER CLUTCH
310
ROD MASTER CYLINDER
315
ARTICULATION PIECE CLUTCH MASTER CYLINDER
315
ARTICULATION PIECE CLUTCH MASTER CYLINDER
320
NEEDLE BEARING JOINT TO PIN
320
NEEDLE BEARING JOINT TO PIN
320
NEEDLE BEARING JOINT TO PIN
325
NUT
330
PIN , CLUTCH PEDAL WITH BRONZE BUSHINGS
335
NUT BRACKET TO SIDE MEMBER,XB209706
340
WASHER PULL ROD TO SHIFT LEVER
345
LOCK PISTON ROD TO GUIDE BOLT
345
LOCK , Replaced By: N912002008003
347
BOOT ON PISTON ROD AND PIN
999
REPAIR KIT CLUTCH MASTER CYLINDER
999
BOOTTO 345 295 70 06
999
PLUG
999
999
PEDAL PLATE , Replaced By: A3452907224
999
BRACKET
999
SCREW BRACKET TO SIDE MEMBER
