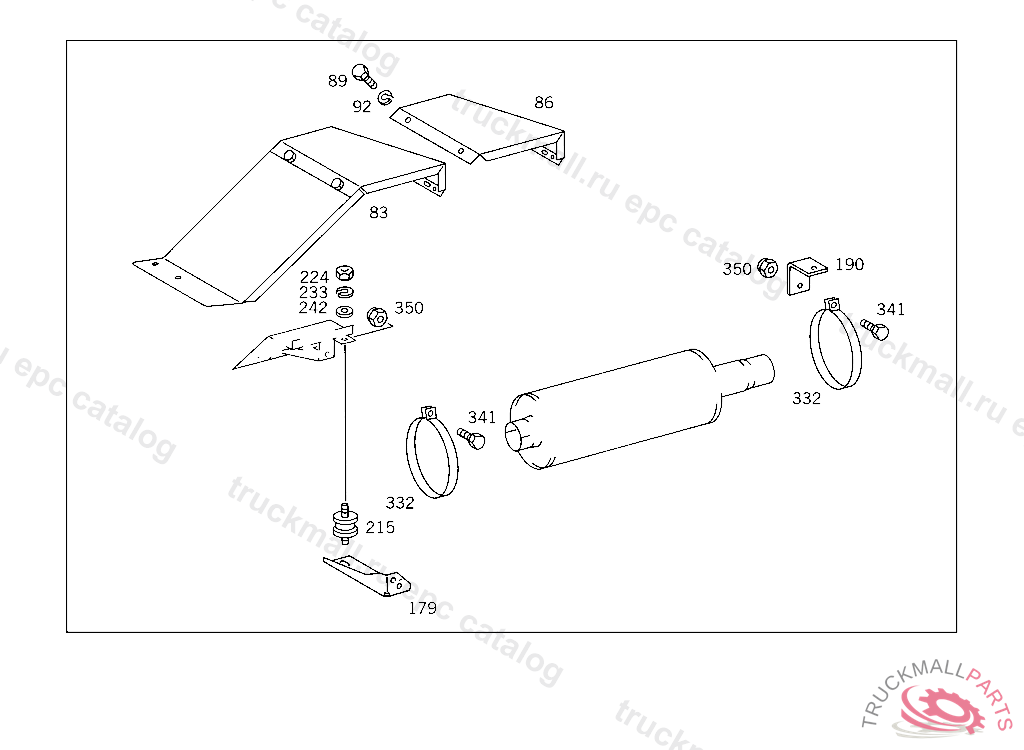

LS 1934 - 350.048 - 49 EXHAUST SYSTEM

Поз.
Артикул
Описание
83
A3504927830
PROTECTIVE PLATE
86
A3504907930
PROTECTIVE PLATE
89
N000933008268
SCREW SWITCH TO BRACKET 8X16
92
N000127008104
LOCK WASHER CLUTCH TO FLYWHEEL
179
A3504917115
CONSOLE EXHAUST MUFFLER
190
A3504917116
SUPPORT EXHAUST PIPE
215
A3475040012
RUBBER MOUNTING
224
N000934010000
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
233
N000127010202
LOCK WASHER , Replaced By: N912004010102
242
N000125010517
WASHER GROUND CABLE
332
A3504917040
CLAMP EXHAUST MUFFLER
341
N000933010129
SCREW , Replaced By: N304017010002
350
N913004010004
NUT BRACKET TO SIDE MEMBER,XB209706
