Поз.
Артикул
Описание

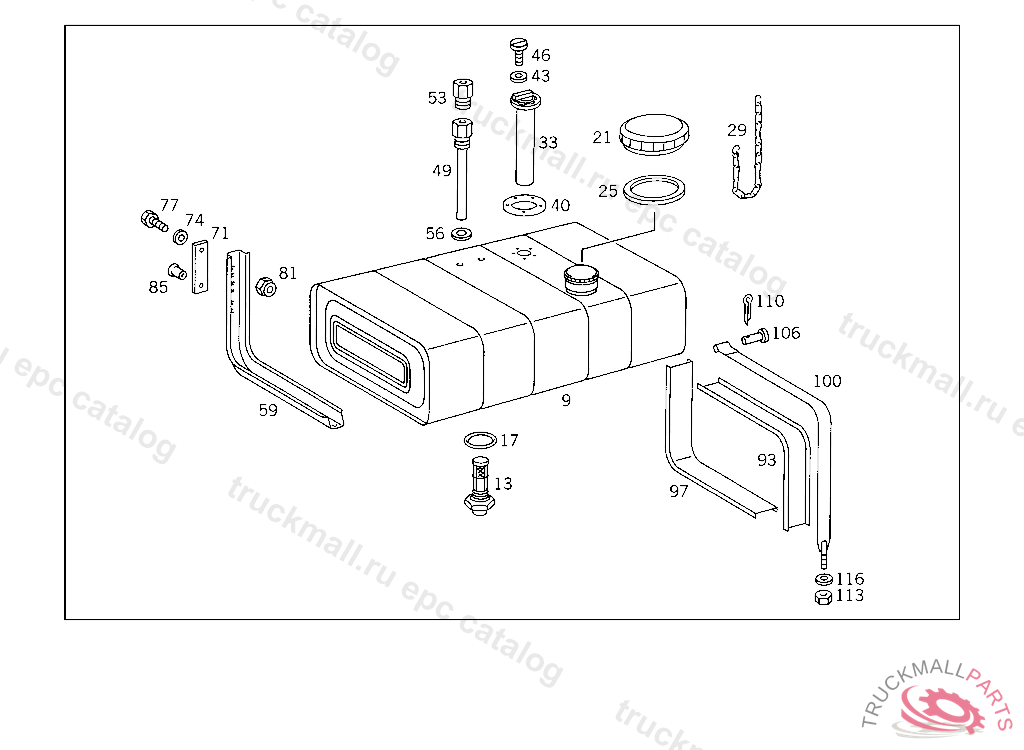

9
FUEL TANK LESS SENDER UNIT 300 L
13
FUEL STRAINER
17
SEAL RING FUEL DISCHARGE
17
SEAL RING FUEL STRAINER SCREEN
21
FILLER CAP
25
SEAL RING
29
CHAIN FILLER CAP
33
SENDER UNIT , Replaced By: A3455427617
33
SENDER UNIT
33
SENDER UNIT
33
SENDER UNIT , Replaced By: A3505427017
40
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
40
GASKET SENDER UNIT AND COVER TO FUEL TANK
43
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
46
SCREW
49
RISING PIPE ,A 069205
53
FITTING
56
SEAL RING CONNECTION: 1,4 719029
59
CONSOLE TANK SUSPENSION
71
BASE CONSOLES TO SIDE MEMBER
74
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
74
WASHER , Replaced By: A3379900440
77
SCREW BATTERY CASE TO SIDE MEMBER
81
NUT , Replaced By: N910113014000
85
RIVET14X32 MM
93
CARDBOARD FUEL TANK TO CONSOLE
97
CARDBOARD FUEL TANK TO CONSOLE
100
STRAP FUEL TANK TO SUPPORT
106
PIN STRAP TO SUPPORT
110
COTTER PIN STRAP TO SUPPORT
113
NUT BRACKET TO LEFT SIDE MEMBER
116
WASHER
999
SHIM RESERVOIR
999
RUBBER STRIP , Replaced By: A3459837391
999
SUPPORT FUEL TANK
999
FUEL TANK
999
STRAP FUEL TANK TO SUPPORT
999
SENDER UNIT , Replaced By: A3455427917
999
SENDER UNIT TANK
999
LINE FROM AIR RESERVOIR TO BRAKE VALVE
999
LINE FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "21",TO OUTSIDE AIR RESERVOIR
999
LINE FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
999
FILLER CAP
999
BASE SUPPORT TO SIDE MEMBER
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
999
CONSOLE , 674067
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
GROMMET42/36 MM, NOT USED
