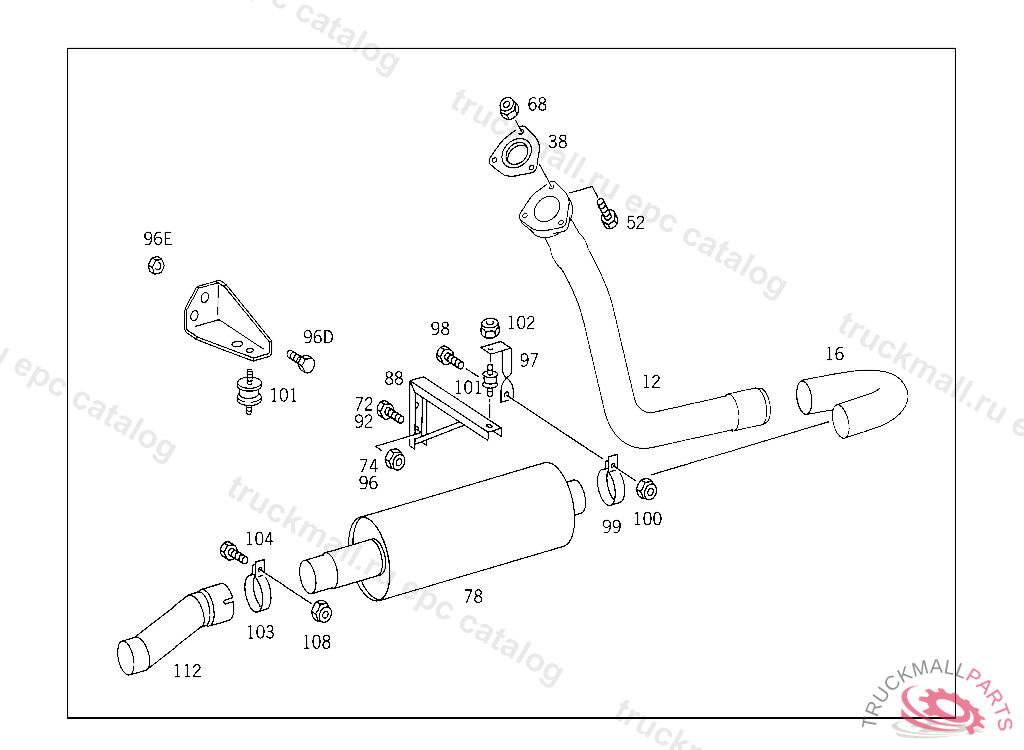

Поз.
Артикул
Описание
12
EXHAUST MUFFLER FRONT
16
INTERMEDIATE PIECE
38
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
38
FLANGE GASKET , Replaced By: A6004920080
52
SCREW BRACKET AND SUPPORT TO SIDE MEMBER M 12X55,1D 006005
52
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
68
NUT CONNECTOR TO EXHAUST MANIFOLD
72
SCREW , Replaced By: N304017010002
74
NUT , Replaced By: N910113010000
78
EXHAUST MUFFLER WITH PIPE
88
BRACKET EXHAUST MUFFLER
92
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
SCREW , Replaced By: N304017010002
96
NUT , Replaced By: N910113010000
96
SUPPORT EXHAUST MUFFLER
97
BRACKET FRONT EXHAUST PIPE
98
SCREW , Replaced By: N304017010002
99
CLAMP , Replaced By: N071555100501
100
NUT , Replaced By: N910113010000
101
RUBBER MOUNTING
102
NUT , Replaced By: N910113010000
103
CLAMP , Replaced By: N071555100501
103
CLAMP EXHAUST PIPE TO BRACKET
104
SCREW , Replaced By: N304017010002
108
NUT , Replaced By: N910113010000
112
EXHAUST PIPE REAR
999
RESONATOR , Replaced By: A3514907201, +001A3514907031
999
BOLT. SCREW QUICK-RELEASE VALVE TO BRACKET
999
NUT , Replaced By: N913004008001
