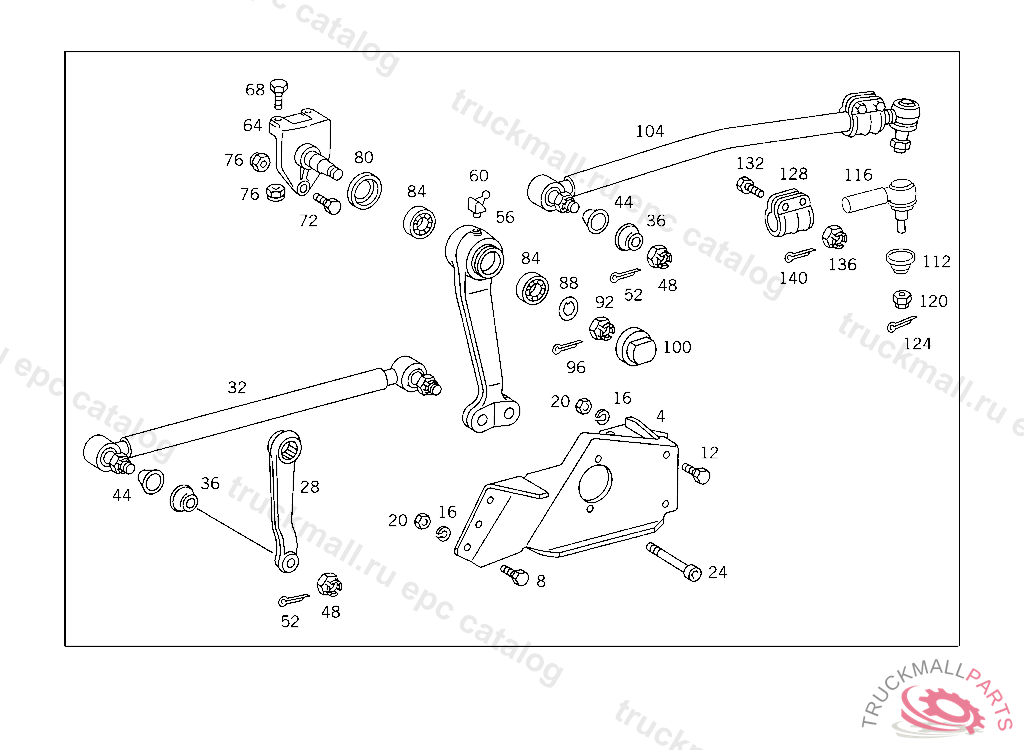

Поз.
Артикул
Описание
4
STEERING BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS:593909, Replaced By: A3454607029
8
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
12
SCREW
16
LOCK WASHER FITTING TO BRACKET
20
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
24
SCREW STEERING TO STEERING BRACKET
28
PITMAN ARM BALL-NUT-TYPE HYDRAULIC POWER STEERING, 345.200 FROM IDENT NO. 488616
32
DRAG LINK
32
DRAG LINKGEMMER THOMPSON
32
DRAG LINKLEMFOERDER
36
BOOT FIXED PART OF JOINT TO 345 460 88 05
36
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
44
RUBBER RING , Replaced By: A0003381463
44
CLAMPING RING STRAIGHT END TO 345 460 91 05,680437, 344.012-344.015
48
NUT
52
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM 4X40 MM
52
COTTER PIN
56
STEERING INTERMEDIATE ARM , USED WITH AIR BRAKE
60
GREASE NIPPLE
64
TRUNNION BEARING STEERING INTERMEDIATE ARM
68
SCREW
72
SCREW BRACKET TO APPARATUS SUPPORT
76
NUT , Replaced By: N910113012003
80
RADIAL SEAL RING , Replaced By: A0079976446
84
TAPERED ROLLER BEARING
84
TAPERED ROLLER BEARING
84
TAPERED ROLLER BEARING INTERMEDIATE LEVER TO BEARING BRACKET
84
TAPERED ROLLER BEARING
84
TAPERED ROLLER BEARING
84
TAPERED ROLLER BEARING FRONT
88
THRUST WASHER STEERING INTERMEDIATE ARM BEARING
92
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
96
COTTER PIN
100
CAP AT STEERING INTERMEDIATE ARM
104
DRAG LINK REAR, USED WITH AIR BRAKE607675
104
DRAG LINKNAKATA, USED WITH AIR BRAKE607675
112
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
116
JOINT R.H. THREAD LEMFOERDER,5 180856
116
JOINT , Replaced By: A0004632229
120
NUT
124
COTTER PIN
128
CLAMP JOINT TO TIE ROD,1 2165311 248012
132
SCREW
136
NUT DRAG LINK END TO DRAG LINK,5 055225
140
COTTER PIN RIM BOW TO FRONT WHEEL SPIDER
