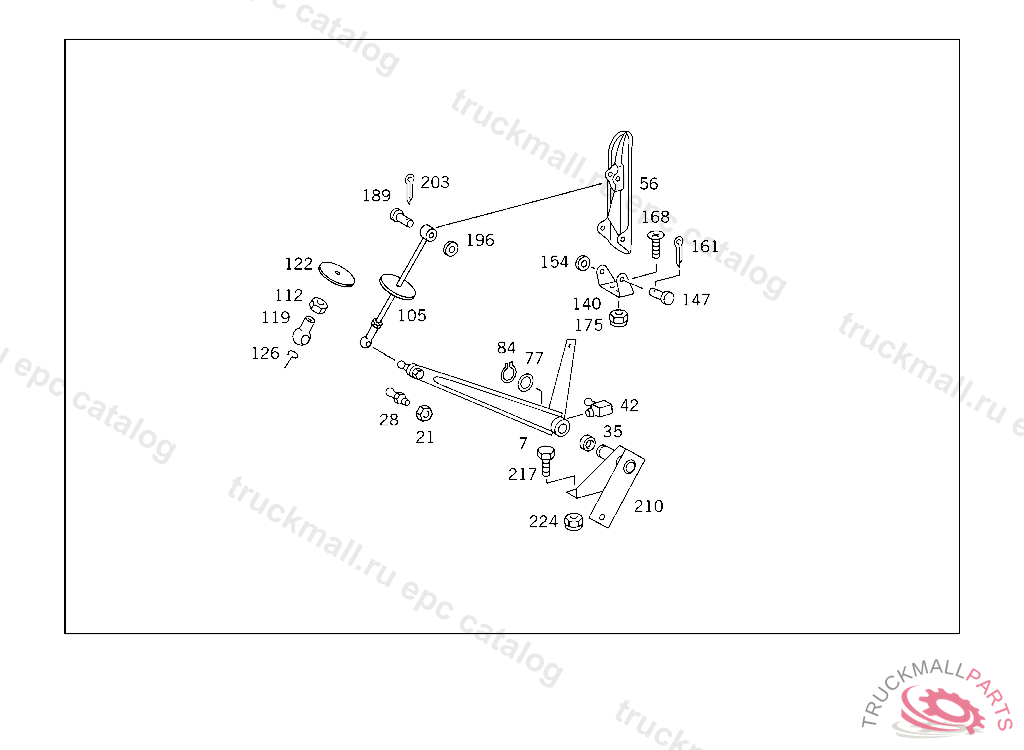

Поз.
Артикул
Описание
7
LEVER , NOT USED
7
LEVER ACCELERATOR PEDAL
21
NUT , Replaced By: N304032008006
28
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
35
BUSHING MANUAL CONTROL,D 249954
42
GREASE NIPPLE PROTECTIVE TUBE
56
PEDAL PLATE ACCELERATOR PEDAL
77
WASHER PEDAL BEARING
84
LOCK RING BELT TIGHTENER
105
ROD , Replaced By: A3903007515
112
NUT , Replaced By: N304032008006
119
BALL SOCKET ROD TO BALL PIVOT
122
SEAL
126
SECURING CLIP. CIRCLIP
140
ARTICULATION PIECE , Replaced By: A3903017005
147
PIN ACCELERATOR PEDAL TO JOINT
154
WASHER , Replaced By: N000125010532
161
COTTER PIN STRAP TO BRACKET
168
SCREW ARTICULATION ELEMENT TO FLOOR M 8X35
175
NUT , Replaced By: N913004008001
189
PIN ROD TO PEDAL PLATE
196
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
203
COTTER PIN BATTERY COVER TO 388 540 70 14
210
BEARING BRACKET PEDAL BEARING,793543 345.200,220 FROM CHASSIS 11008097
217
SCREW , Replaced By: N304017008034
224
NUT AIR RESERVOIR TO FRAME
999
LEVER (INTERMEDIATE LEVER),A 088634
999
PIN ,A 088634
999
NUT BRACKET TO BATTERY CASE
