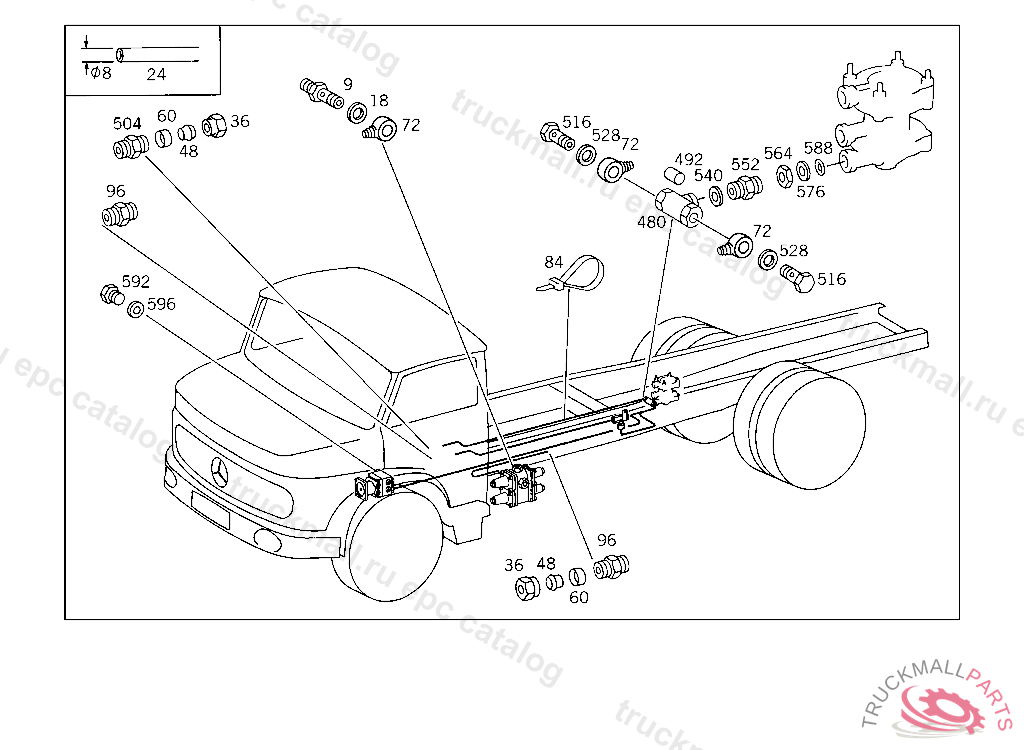

Поз.
Артикул
Описание
9
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
18
SEAL RINGTO 006 997 00 72
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
36
UNION NUT LINE CONNECTION
48
GLAND LINE CONNECTION
60
SLEEVE LINE CONNECTION
72
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
84
LOOM TIE , Replaced By: A0019978390
96
CONNECTION FITTING ,880809
480
VALVE TWO-WAY
492
VALVE BODYTO 002 429 95 44
504
CONNECTION FITTING ,880809
516
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
528
SEAL RINGTO 006 997 00 72
540
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
552
FITTING TWO-WAY VALVE,CONNECTION: "2"
564
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
576
THRUST RING LOCKING VALVE
588
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
592
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
596
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
VALVE , Replaced By: A0004291182
999
PLUG SOCKETTO 341 540 82 10
999
SWITCH EXHAUST BRAKE,K 251255
999
PINTO 345 430 75 81
999
GROMMET3.0 MM
999
HANDLETO 345 430 75 81
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
PIN BUSHING HOUSING UNIPOLAR
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
SWITCH TWO-CIRCUIT BRAKE VALVE
