Поз.
Артикул
Описание

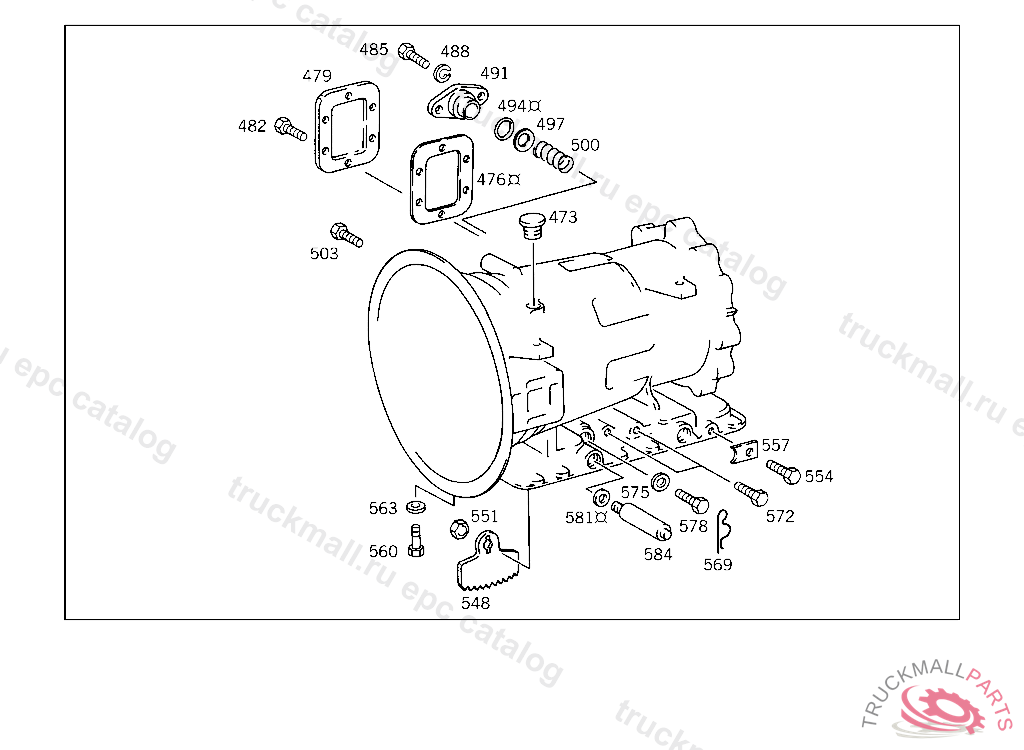

473
BREATHER TOP, TO 000 270 18 01,000 270 20 01
476
GASKET , TO 000 270 18 01,000 270 20 01
476
GASKET , Replaced By: A0002714280
479
COVER TRANSMISSION CASE,SIDE
482
SCREW COVER TO TRANSMISSION CASE, TO 000 270 18 01,000 270 20 01
485
SCREW , TO 000 270 18 01,000 270 20 01
488
LOCK WASHER , TO 000 270 18 01,000 270 20 01
491
VALVE BODY , TO 000 270 18 01,000 270 20 01
494
SEAL RING , TO 000 270 18 01,000 270 20 01
497
VALVE PART , TO 000 270 18 01,000 270 20 01
500
SPRING , TO 000 270 18 01,000 270 20 01
503
SCREW , TO 000 270 18 01,000 270 20 01
503
SCREW , Replaced By: A0002712471
548
LEVER DETENT, TO 000 270 18 01,000 270 20 01
551
NUT LEVER TO TRANSMISSION CASE, TO 000 270 18 01,000 270 20 01
554
SCREW BRACKET TO TRANSMISSION, TO 000 270 18 01,000 270 20 01
554
SCREW , Replaced By: A0002712871
554
SCREW , Replaced By: A0002712571
557
BRACKET MODULATOR TO CASE, TO 000 270 18 01,000 270 20 01
560
SCREWTO 000 270 07 28, TO 000 270 18 01,000 270 20 01
560
SCREWTO 000 270 04 28, 000 270 06 28, TO 000 270 18 01,000 270 20 01
563
WASHERTO 000 270 07 28, TO 000 270 18 01,000 270 20 01
563
WASHERTO 000 270 04 28, 000 270 06 28, TO 000 270 18 01,000 270 20 01
569
DOWEL PIN FUSE, TO 000 270 18 01,000 270 20 01
572
SCREW , TO 000 270 18 01,000 270 20 01
572
SCREW , Replaced By: A0002712471
575
WASHER , TO 000 270 18 01,000 270 20 01
578
SCREW , TO 000 270 18 01,000 270 20 01
581
SEAL RING , TO 000 270 18 01,000 270 20 01
584
SHAFT RANGE SELECTOR, TO 000 270 18 01,000 270 20 01
999
CLAMP ,K 147121, Replaced By: N000000000319
999
UNION NUT LINE CONNECTION
999
UNION NUT
999
NUT , Replaced By: N910113010000
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT STRAP TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW , Replaced By: N000000001146
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING , Replaced By: N007603010110
999
CONNECTION FITTING , Replaced By: A0039979172
999
FITTING SHUT-OFF VALVE,CONNECTION: "40"
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901667
999
NUT BALL PIVOT TO LEVER
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP MOUNTING M 6X16
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
BRACKET AIR COMPRESSOR, 4 375136
999
CLAMP , Replaced By: A3604300143
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: N916016008200
999
TRANSMISSION , FOR NEW PART NUMBER AND BREAKDOWN,SEE UNIT MICROFICHE,MODEL 714.017, Replaced By: A3812602900, +001A3402500215, +001A3522500055, +001A3522512101, +001N000908016000, +001N007603016105
999
TRANSMISSION
999
CENTERING FLANGE , MUST NO LONGER INSTALLED
999
WASHER SHIFTING TUBE
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5078960, Replaced By: A3522680140
999
BUSHING SHIFT CASE
999
BRACKET SHIFT CASE
999
BOOT , Replaced By: A3522680497
999
BOOT SHIFT CASE
999
COVER SHIFT CASE
999
COVER
999
SHIFT LEVER
999
SHIFT LEVER LOWER PART
999
TRANSMISSION , Replaced By: A3832604000, +001A3552510101
999
TRANSMISSION , Replaced By: A3832603900, +001A3552510101
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD , Replaced By: A3452600533
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFT CASE REMOTE GEARSHIFT MECHANISM
999
SHIFT CASE REMOTE GEARSHIFT MECHANISM
999
COVERING , Replaced By: A3522600296
999
BOOT , Replaced By: A3442677096
999
HANDLE (GEARSHIFT LEVER KNOB)
999
SPRING SHIFT CASE,BOTTOM
999
SCREW SHIFTING TUBE TO TRANSMISSION
999
CLAMPING PIECE SHIFTING TUBE TO TRANSMISSION
999
SLIDE SHIFT CASE
999
SCREW , Replaced By: A0002740571
999
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
999
SCREW IMPELLER TO COVER
999
CYLINDR. ROLLER BEARING TORQUE CONVERTER TO 000 257 03 23
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
FITTING , Replaced By: A0029905971
999
CYLINDR. ROLLER BEARING TORQUE CONVERTER TO 000 257 00 23 ,01 23
999
BALL BEARING PLANETARY CARRIER,INSIDE
999
FITTING 3/2-WAY VALVE,CONNECTION: "30"
999
NUT , Replaced By: N913004010008
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A0039978972
999
FITTING , NOT USED
999
SNAP RING AS REQUIRED 0.158-0.160"
999
SNAP RING DISC SUPPORT, AS REQUIRED 0.152-0.154"
999
SNAP RING 2ND AND 3RD SPEED, TO 000 270 18 01,000 270 20 01
999
SEAL CONE
999
BALL HOUSING,BOTTOM, WITH TRANSMISSION VERSION 6881252,6882857,6882899,6884348
999
REPAIR KIT , Replaced By: A0002700398
999
SWITCH P.T.O. TELL-TALE LAMP
999
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
999
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
999
SEAL RING , Replaced By: A0002771255
999
SPRING MAIN PRESSURE REGULATOR
999
SPRING , Replaced By: A0002770945
999
SCREW COVER TO CASE
999
SCREW PUMP GEAR
999
TUBE OIL
999
VALVE CONVERTER
999
VALVE VALVE GUIDE
999
PISTON AS REQUIRED 1.045-1.055"
999
COVER , Replaced By: A0002770119
999
PISTON AS REQUIRED 1.020-1.030"
999
OUTER DISC AS REQUIRED 0.640-0.650"
999
OUTER DISC AS REQUIRED 0.671-0.681"
999
OUTER DISC AS REQUIRED 0.450-0.460"
999
SCREW PARKING BRAKE,LESS SHIELD
999
WASHER PARKING BRAKE,LESS SHIELD
999
FILTER OIL FILTER
999
AUTOMATIC TRANSMISSION , Replaced By: A0002701801, +008A3529900401, +008N000127010203, +008N000934010010
999
FILTER , Replaced By: A0002702798
999
BRAKE BAND PARKING BRAKE,LESS SHIELD
999
SHAFT CENTRAL SUN GEAR
999
HYDRAULIC CLUTCH , Replaced By: A0002700321, +001A0002770945
999
HYDRAULIC CLUTCH , Replaced By: A0002700321, +001A0002770945
999
SHAFT , Replaced By: A0002700226
999
HYDRAULIC CLUTCH , Replaced By: A0002700621
999
SPEEDOMETER DRIVE
