Главная
›
Mercedes
›
ENGINE
›
OM 366 LA
›
377.986
›
01 ENGINE HOUSING
›
060 OIL PAN & OIL LEVEL DISPLAY
Mercedes N000000000670 - ХОМУТ

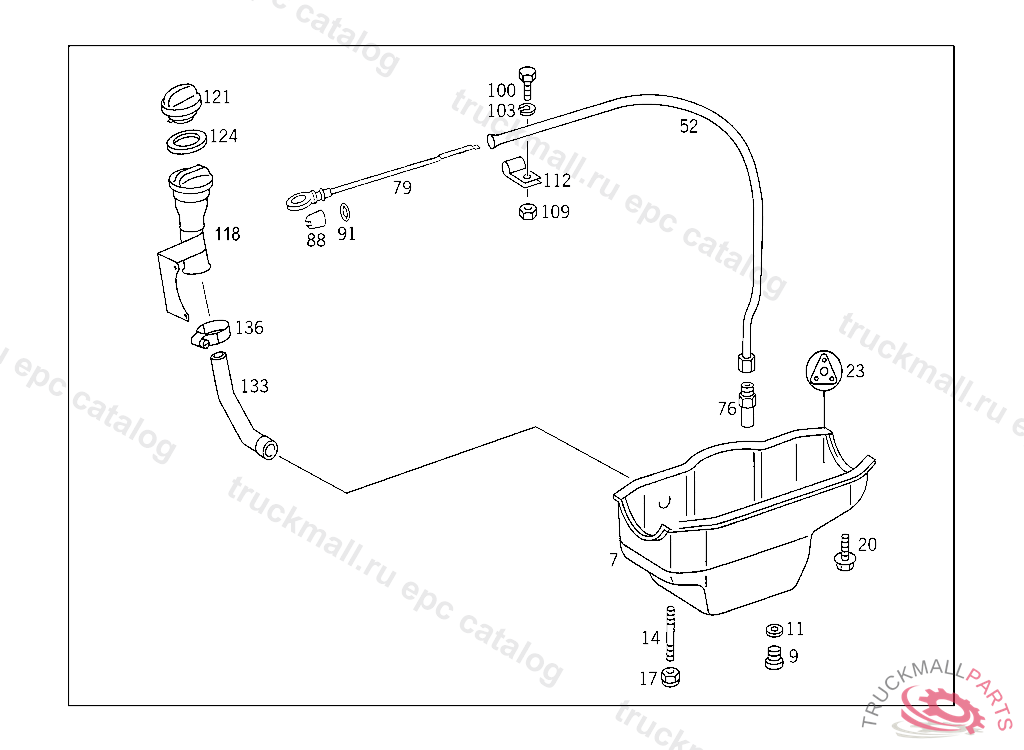

OM 366 LA 377.986
01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY
Поз.
Артикул
Описание
7
A3760108613
OIL PAN
9
A4039970230
SCREW PLUG
11
N007603026109
SEAL RING OIL DRAIN 26X34 MM
14
N000835008180
STUD OIL PAN TO CYLINDER CRANKCASE
17
N914440008000
NUT HEAT PROTECTION PLATE ON EXHAUST PIPE
20
N914008006001
COMBINATION BOLT INSTRUMENT PANEL TO FRONT PANEL PILLAR
23
A3660100580
GASKET KIT OIL PAN
52
A3760103566
GUIDE TUBE OIL DIPSTICK UPPER PART,399587
76
A3520102566
GUIDE TUBE , Replaced By: A3520184216
79
A3760107472
OIL DIPSTICK ,472289
88
A4030180106
CAP
91
A0029974048
SEAL RING
100
N000933008023
SCREW POWER CYLINDER TO BRACKET
103
N912004008104
LOCK WASHER
109
N000934008000
NUT LEVER TO SHIFTING SHAFT
112
N916016011202
CLAMP AT BRACKET
112
A4759957001
CLAMP LINES TO BRACKET
118
A3760108864
OIL FILLER NECK
121
A3440180168
COVER OIL FILLER NECK
124
A0000180180
GASKET , Replaced By: A1020180080
124
A3440187080
GASKET COVER TO FITTING
133
A3760187982
HOSE ,396843
136
N000000000670
CLAMP
