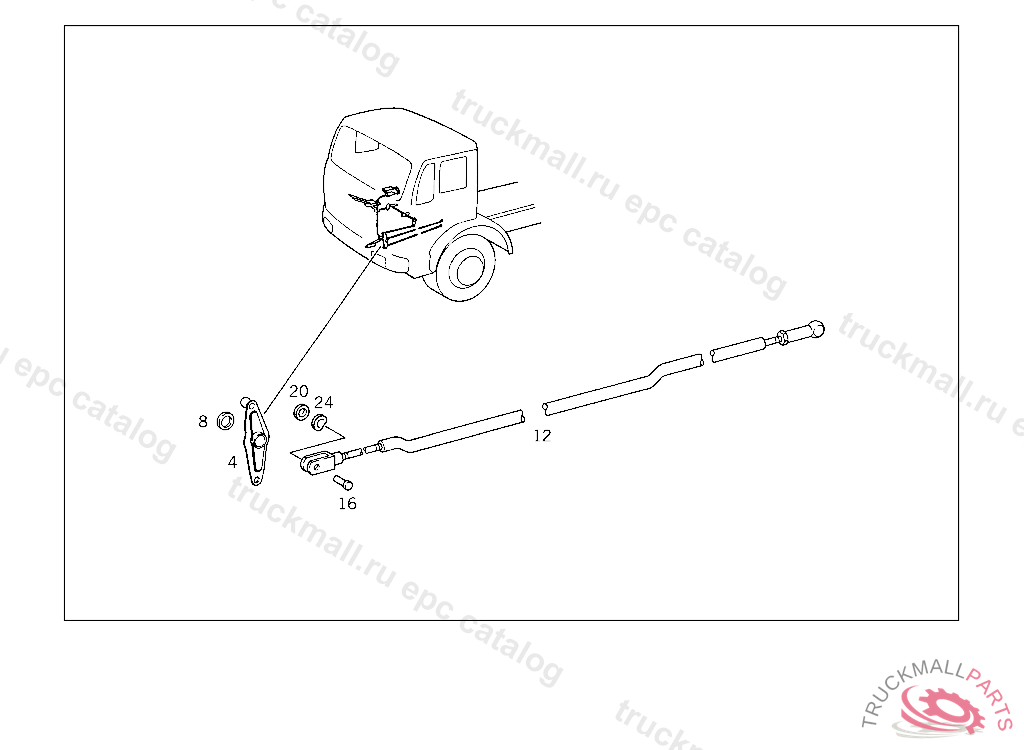

Поз.
Артикул
Описание
4
LEVER CONTROL, TO BE ADAPTED DURING ASSEMBLY
4
LEVER INTERMEDIATE BEARING
4
LEVER , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 931322-5 068730, Replaced By: A6203000628
4
LEVER , Replaced By: A6153001028
8
WASHER , Replaced By: N009021006208
8
WASHER COMPRESSED AIR LINE TO BRACKET
12
ROD CONTROL
12
ROD CONTROL
16
PIN ROD TO INTERMEDIATE LEVER
16
PIN
20
WASHER BRACKET TO CROSS MEMBER
24
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
24
SPRING WASHER , Replaced By: N000137008212
999
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
999
LEVER , Replaced By: A6153000628
999
ROD , Replaced By: A3813001715, +001A4069910022, +001N000934008010, +002N071805013402
