Поз.
Артикул
Описание

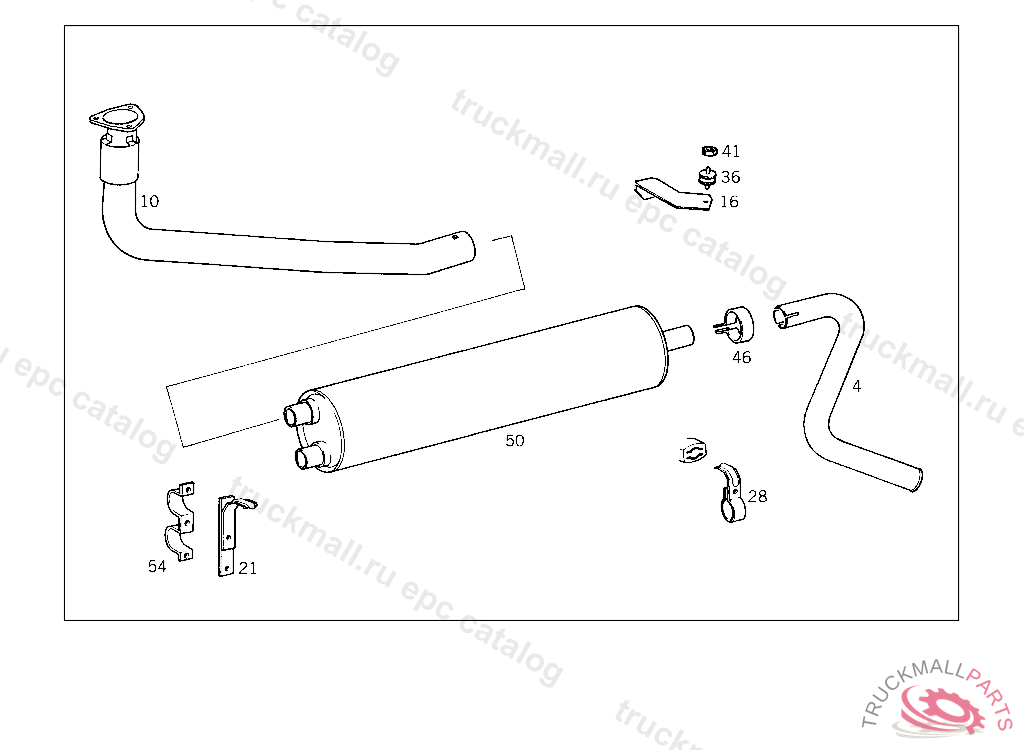

4
REAR EXHAUST PIPE , Replaced By: A3814926304
10
EXHAUST PIPE FRONT
10
EXHAUST PIPE FRONT
16
SUPPORT EXHAUST PIPE TO SIDE MEMBER
21
BRACKET FRONT EXHAUST PIPE
28
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
28
BRACKET , Replaced By: A3814923841, +001N071555075502
36
RUBBER BUFFER BRACKET TO SUPPORT
41
NUT STRAP TO BRACKET
41
NUT , Replaced By: N910113010000
46
CLAMP REAR EXHAUST PIPE TO BRACKET
46
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
50
EXHAUST MUFFLER
54
CLAMP FRONT EXHAUST PIPE TO BRACKET
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
CLAMP , Replaced By: N000000001642
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW , Replaced By: N304017008034
999
CLAMP60.5 MM,4 613839
999
REAR EXHAUST PIPE TAIL PIPE,4 337021
999
SUPPORT EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE REAR,4 613839
999
PAD
999
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET EXHAUST PIPE,4 411512
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE REAR,4 337021
999
BRACKET
999
REAR EXHAUST PIPE TAIL PIPE,4 337021
999
BRACKET , Replaced By: A3834923441
999
FRONT EXHAUST PIPE AT MUFFLER,4 337021
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3834927941
999
FRONT EXHAUST PIPE ,4 337021
999
BRACKET , Replaced By: A3834923441
999
BRACKET EXHAUST PIPE,4 726044
999
BRACKET EXHAUST PIPE,4 337021
999
SUPPORT EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST
999
BRACKET , Replaced By: A3834927941
999
SUPPORT EXHAUST PIPE
999
BRACKET , Replaced By: A3834927941
999
SUPPORT EXHAUST PIPE
999
FRONT EXHAUST PIPE FRONT LEFT
999
EXHAUST MUFFLER WITH PIPE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A3834900201, +001A3814920101
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
REAR EXHAUST PIPE REAR,4 613840
999
REAR EXHAUST PIPE TAIL PIPE,4 613840
999
REAR EXHAUST PIPE CENTRAL PART,4 326310
999
REAR EXHAUST PIPE CENTRAL PART
999
REAR EXHAUST PIPE CENTRAL PART
999
BRACKET EXHAUST
999
BRACKET
999
BRACKET , Replaced By: A3834927941
999
REAR EXHAUST PIPE , Replaced By: A3814922704
999
BRACKET , Replaced By: A3834927941
999
BRACKET , Replaced By: A3814922241
999
FRONT EXHAUST PIPE FRONT RIGHT
999
FRONT EXHAUST PIPE FRONT LEFT
999
REAR EXHAUST PIPE REAR,4 613839
999
SUPPORT EXHAUST PIPE
999
DAMPING PAD PARTICLE FILTER
999
BRACKET EXHAUST PIPE
999
SUPPORT EXHAUST PIPE
999
SUPPORT EXHAUST PIPE
999
SUPPORT EXHAUST
999
SUPPORT , Replaced By: A3604910016
999
EXHAUST PIPE REAR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
PROTECTIVE PLATE AT MUFFLER
999
EXHAUST MUFFLER WITH PIPE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A3834900001, +001A3814920001
999
EXHAUST PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 4 471444, Replaced By: A3814900321
999
CONNECTOR REAR
999
SUPPORT EXHAUST PIPE,4 613839
999
CONNECTOR , Replaced By: A3024920509
999
CONNECTOR , Replaced By: A3224920207
999
CONNECTOR FRONT,505802
999
CONNECTOR INTERMEDIATE PIECE,FRONT
999
RUBBER BUFFER EXHAUST MUFFLER
