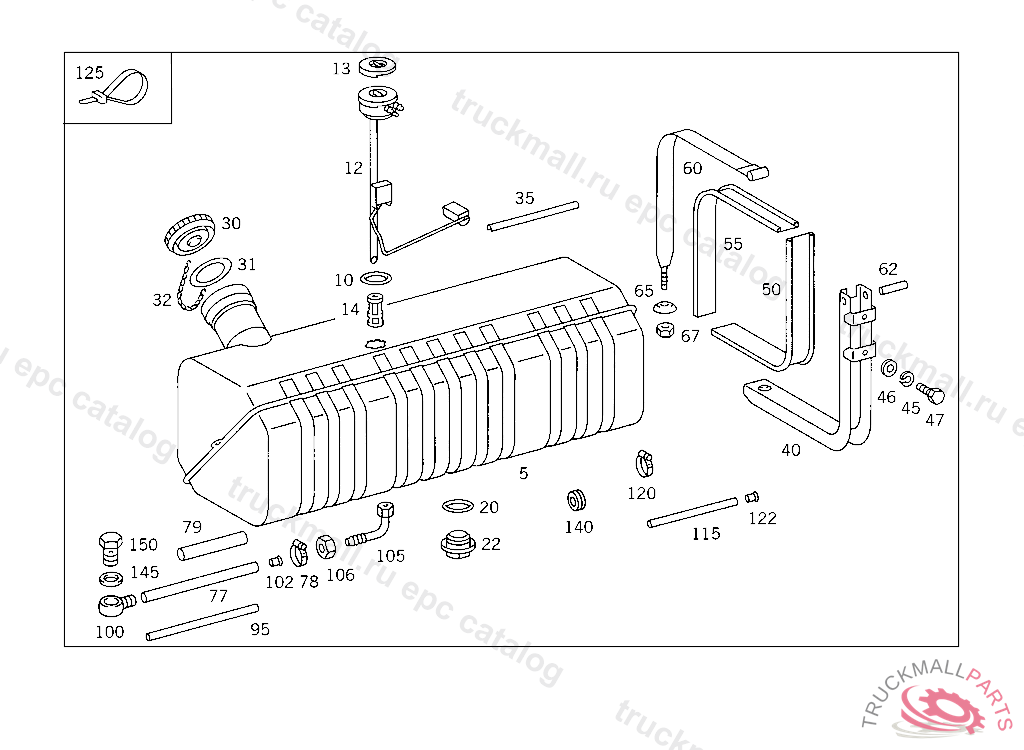

Поз.
Артикул
Описание
5
FUEL TANK FILLER NECK PARTS TO BE ORDERED FROMTHE BODY MANUFACTURER 125L,K 169123
5
FUEL TANK , Replaced By: A3834701101, +001N007603014302, +001N007604014106
5
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6504700501, +001A0005409917, +001A0115426417
10
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
12
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426417, +001A0005409917
12
SENDER UNIT FUEL GAUGE,4 316250-4 372970
12
SENDER UNIT ,4 261141, Replaced By: A0045424617, +001A0004710235, +002A3054760126, +001A3879900078
12
SENDER UNIT ,4 316249, Replaced By: A0045424717, +002A3054760126, +001A3879900078
12
SENDER UNIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 656938, Replaced By: A0055423517
12
SENDER UNIT , Replaced By: A0085427817
14
FUEL STRAINER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 261141, Replaced By: A0004710235
14
FUEL STRAINER FUEL TANK,K 169122
20
SEAL RING FUEL STRAINER SCREEN
20
SEAL RING AT TANK
22
FITTING FUEL LINE TO FUEL TANK,4 493047
22
SCREW PLUG FUEL TANK
22
FITTING
22
SCREW PLUG , Replaced By: N007604014110
30
FILLER CAP , Replaced By: A0004700305
30
FILLER CAP
31
SEAL RING
32
CHAIN FILLER CAP
35
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
40
SUPPORT FRONT TANK
40
SUPPORT REAR TANK
45
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
46
WASHER SPARE WHEEL CARRIER
47
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
55
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
60
STRAP FUEL TANK TO SUPPORT
62
PIN STRAP TO SUPPORT
65
WASHER STRAP TO SUPPORT
67
NUT STRAP TO SUPPORT
77
HOSE LEAK LINE
77
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
78
CLIP LEAK LINE
79
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
95
HOSE LEAK LINE, ORDER BY THE METER
100
BANJO UNION FEED
102
SLEEVE LEAK LINE
105
ELBOW FITTING RETURN
105
FITTING RETURN
106
UNION NUT
115
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
120
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
122
SLEEVE FEED
122
CONNECTOR RIGHT,177-LITER
125
LOOM TIE LINE MOUNTING 280 MM
125
LOOM TIE LINE MOUNTING
140
GROMMET LINE PASSAGE AT SIDE MEMBER
140
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
145
SEAL RING FUEL LINE TO FEED PUMP
150
HOLLOW SCREW FUEL LINE TO FEED PUMP
150
HOLLOW SCREW , Replaced By: N915036010108
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
COTTER PINROCKINGER TYP 260 G140
999
CLAMP , Replaced By: N000000000665
