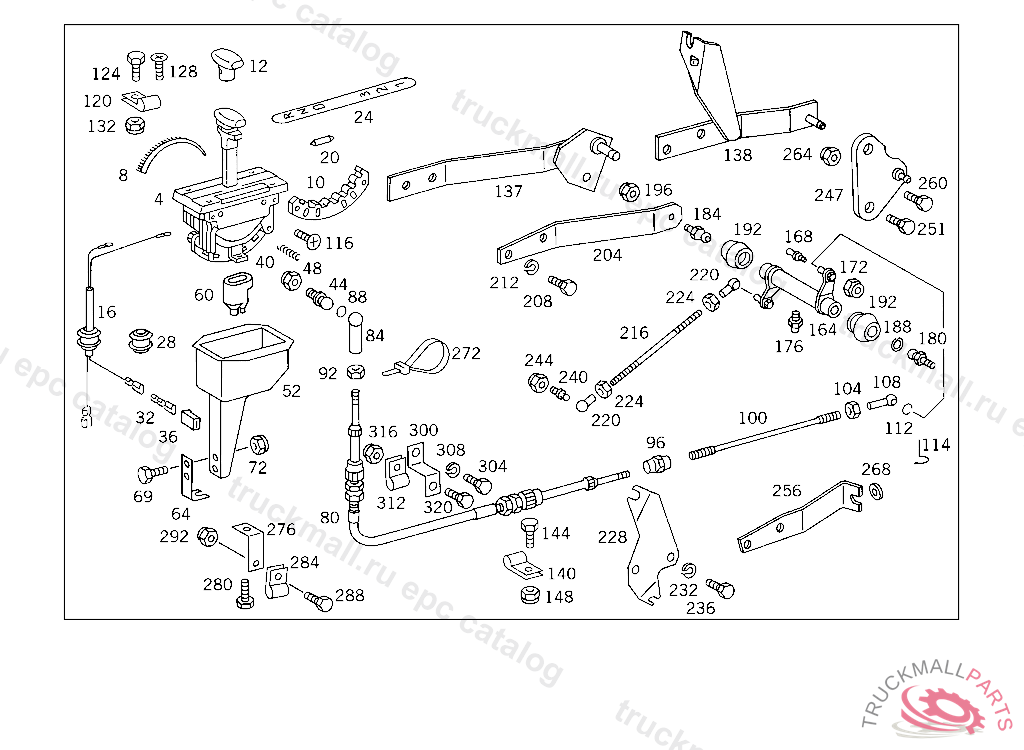

Поз.
Артикул
Описание
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART,5 331507
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART
4
SHIFT CASE
4
SHIFT CASE UPPER PART,5 331507
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART
4
SHIFT CASE , Replaced By: A0002602972
4
SHIFT CASE UPPER PART,5 331506
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART
4
SHIFT CASE UPPER PART,5 331507
8
SEAL
10
SLOTTED GATE
10
SLOTTED GATE
12
KNOB
12
HANDLE
12
KNOB , Replaced By: A0009973377
12
KNOB
12
KNOB
16
CABLE HARNESS
20
BULB24V/5W
20
BULB12V/5W
24
GUMMED LABELTO 000 260 28 72
24
DIAL
24
GUMMED LABEL
24
GUMMED LABEL
24
GUMMED LABELTO 000 260 29 72
28
GROMMET
32
PIN BUSHING , Replaced By: A0075458226
32
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
32
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
36
PIN BUSHING HOUSING UNIPOLAR
40
SPRING
40
SPRING
44
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
44
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
48
NUT PUMP TO BRACKET
48
NUT , Replaced By: N913004006001
48
NUT , Replaced By: N910113006001
48
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
52
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 449171, Replaced By: A3812682740
52
BRACKET , Replaced By: A3812682040
52
BRACKET (FITTING MOLD),SHIFTING UNIT
60
GROMMET SHIFT CASE
60
GROMMET SHIFT CASE
64
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 449171, Replaced By: A3812682640
64
BRACKET (FITTING MOLD),SHIFT CASE
69
SCREW COVER PLATE TO BRACKET
72
NUT , Replaced By: N910113006001
72
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
80
WIRE CABLE SHIFT CASE
80
WIRE CABLE SHIFT CASE,5 331507
80
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 449171, Replaced By: A3812600051
80
WIRE CABLE SHIFT CASE
80
WIRE CABLE SHIFT CASE
80
WIRE CABLE SHIFT CASE
80
WIRE CABLE SHIFT CASE
80
WIRE CABLE SHIFT CASE,5 331506
80
WIRE CABLE SHIFT CASE
84
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
88
SNAP RING SPRING-LOADED PUSH ROD
92
NUT BALL PIVOT TO LEVER
96
TURNBUCKLE
100
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
104
NUT BALL PIVOT TO LEVER
104
NUT BRACKET TO SUPPORT AND TO END PIECE
108
BALL SOCKET PULL ROD TO LEVER
108
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
112
SNAP RING SPRING-LOADED PUSH ROD
114
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
116
SCREW ACCELERATOR PEDAL TO CAB M 6X20
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
124
SCREW COVER PLATE TO BRACKET
124
SCREW PUMP TO BRACKET
124
SCREW , Replaced By: N304017006016
128
SCREW PEDAL TO CAB FLOOR
132
NUT , Replaced By: N913004006001
132
NUT , Replaced By: N910113006001
132
NUT PUMP TO BRACKET
132
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
137
BRACKET SHIFT CASE,BOTTOM
137
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 331506, Replaced By: A6152700141
137
BRACKET SHIFT CASE,BOTTOM
138
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 331506, Replaced By: A6172700741
138
BRACKET SHIFT CASE,BOTTOM
140
CLAMP WIRE CABLE TO BRACKET
140
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
144
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
148
NUT , Replaced By: N910113010000
148
NUT STRAP TO BRACKET
164
LEVER (DOUBLE LEVER), 10/50 FROM IDENT NO. 4 475106, 20/60 FROM IDENT NO. 4 486182
164
LEVER , 10/50 UP TO IDENT NO. 4 475105, 20/60 UP TO IDENT NO. 4 486181, Replaced By: A3852600937, +001A3852685640
168
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
168
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
172
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
172
NUT , Replaced By: N910113006001
176
GREASE NIPPLE PROTECTIVE TUBE
180
BALL PIVOT DOUBLE LEVER TO BRACKET 58 MM
184
BALL PIVOT RELEASE YOKE
184
BALL PIVOT RELEASE YOKE
188
SNAP RING DOUBLE LEVER TO BRACKET
192
SEAL RING DOUBLE LEVER TO BRACKET
196
NUT END PIECE TO EXHAUST PIPE
204
BRACKET DOUBLE LEVER,4 765316
204
BRACKET DOUBLE LEVER, 10/50 FROM IDENT NO. 4 475106, 20/60 FROM IDENT NO. 4 4861824 765315
208
SCREW BRACKET TO TRANSMISSION
212
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
216
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
220
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
224
NUT BALL PIVOT TO LEVER
228
BRACKET WIRE CABLE
228
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 383562, Replaced By: A3853000740
228
BRACKET , Replaced By: A3853000740
232
LOCK WASHER BRACKET TO TRANSMISSION
232
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
236
SCREW BRACKET TO TRANSMISSION
240
BALL PIVOT
240
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
240
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
244
NUT , Replaced By: N913004006001
244
NUT PUMP TO BRACKET
247
BRACKET WIRE CABLE TO FRAME
251
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
256
BRACKET WIRE CABLE TO FRAME
260
SCREW , Replaced By: N308676014020
260
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
264
NUT BRACKET TO SIDE MEMBER
264
NUT , Replaced By: N910113014001
268
WASHER , Replaced By: N000125017016
268
WASHER BRACKET TO FRAME
272
LOOM TIE LINE MOUNTING 280 MM
272
LOOM TIE LINE MOUNTING
276
BRACKET CABLE HARNESS MOUNTING
276
BRACKET WIRE CABLE TO FRAME
280
SCREW , Replaced By: N308676012026
280
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
284
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
288
SCREW COVER PLATE TO BRACKET
292
NUT PUMP TO BRACKET
292
NUT , Replaced By: N913004006001
300
BRACKET WIRE CABLE TO SHIFT CASE
304
SCREW COVER PLATE TO BRACKET
304
SCREWM 16X25
304
SCREW , Replaced By: N304017016011
308
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
308
LOCK WASHERROCKINGER TYP 59 G140,59 G150
312
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
316
SCREW PUMP TO BRACKET
316
SCREW , Replaced By: N304017006016
320
NUT , Replaced By: N913004006001
320
NUT PUMP TO BRACKET
999
REPAIR KIT WIRE CABLE
999
STRAP
999
SHIFT LEVER
999
BRACKET WIRE CABLE
999
BRACKET DOUBLE LEVER, 10/50 UP TO IDENT NO. 4 475105, 20/60 UP TO IDENT NO. 4 486181
999
BRACKET WIRE CABLE TO TRANSMISSION
