Поз.
Артикул
Описание

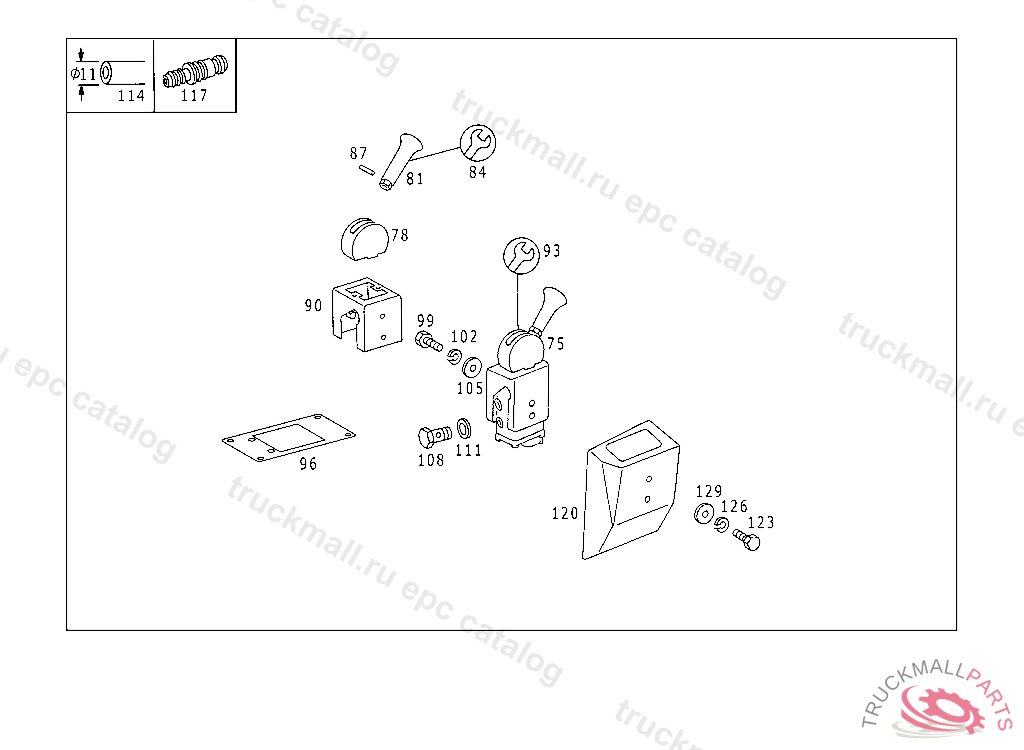

75
VALVE (PARKING BRAKE VALVE)
78
PROTECTIVE CAPTO WABCO
81
HANDLETO 002 430 29 81,WABCO
84
VALVE. REPAIR KIT HAND BRAKE LEVER TO 001 430 65 81
87
PINTO 002 430 90 81
90
SUPPORT
93
REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
99
SCREW , Replaced By: N304017006020
99
SCREW LICENSE PLATE TO BRACKET
102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
105
WASHER , Replaced By: N009021006208
105
WASHER COMPRESSED AIR LINE TO BRACKET
108
HOLLOW SCREW FUEL LINE TO FEED PUMP
108
HOLLOW SCREW , Replaced By: N915036010108
111
SEAL RINGTO 000 553 03 05,000 553 18 05,
114
HOSE BATTERY VENTING 11 X 2 MM, ORDER BY THE METER
117
CONNECTOR HOSE WIDTH, 6 MM, TO M22
120
COVERING PARKING BRAKE VALVE
123
SCREW
126
LOCK WASHER T-FITTING TO BRACKET
129
WASHER COVERING TO CYCLONE AIR TRAP
129
WASHER , Replaced By: N009021004207
