Поз.
Артикул
Описание

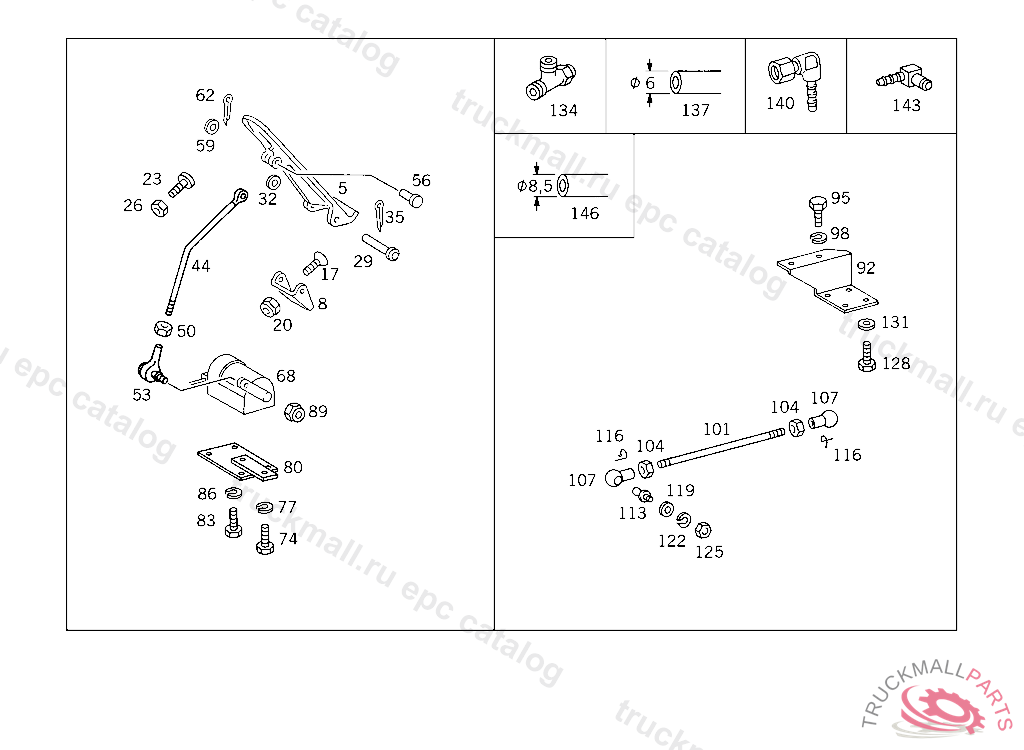

5
PEDAL PLATE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL
8
ARTICULATION PIECE ACCELERATOR PEDAL
17
SCREW ARTICULATION ELEMENT TO FLOOR
20
NUT , Replaced By: N913004008001
23
SCREW PEDAL STOP
26
NUT
26
NUT , Replaced By: N304035008001
29
PIN ACCELERATOR PEDAL TO JOINT
32
WASHER RADIATOR TO RUBBER MOUNTING
32
WASHER , Replaced By: N000125010532
35
COTTER PIN CYLINDER TO BRACKET
44
ROD FROM ACCELERATOR PEDAL TO SENDER UNIT
50
NUT
53
JOINT
56
PIN LEVER WITH SPRING TO STAY
59
WASHER COMPRESSED AIR LINE TO BRACKET
59
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
62
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
68
SENDER UNIT (SET POINT SENDER UNIT)
74
SCREW COVER PLATE TO COVER PLATE M 6 X 12
74
SCREW , Replaced By: N304017006018
77
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
80
BRACKET SENDER UNIT
83
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
83
SCREW , Replaced By: N304017008039
86
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
BRACKET (LOAD RANGE SENSOR)
95
SCREW PUMP TO BRACKET
95
SCREW , Replaced By: N304017006016
98
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
101
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
104
NUT SPRING-LOADED PUSH ROD
107
BALL SOCKET ACCELERATOR CONTROL
107
BALL SOCKET TO BE EXCHANGED FOR 000 991 24 22
107
BALL SOCKET , Replaced By: A0009915222
113
BALL PIVOT ACCELERATOR PEDAL,4 859026
113
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
113
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
116
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
119
WASHER COMPRESSED AIR LINE TO BRACKET
119
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
122
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
125
NUT SPRING-LOADED PUSH ROD
