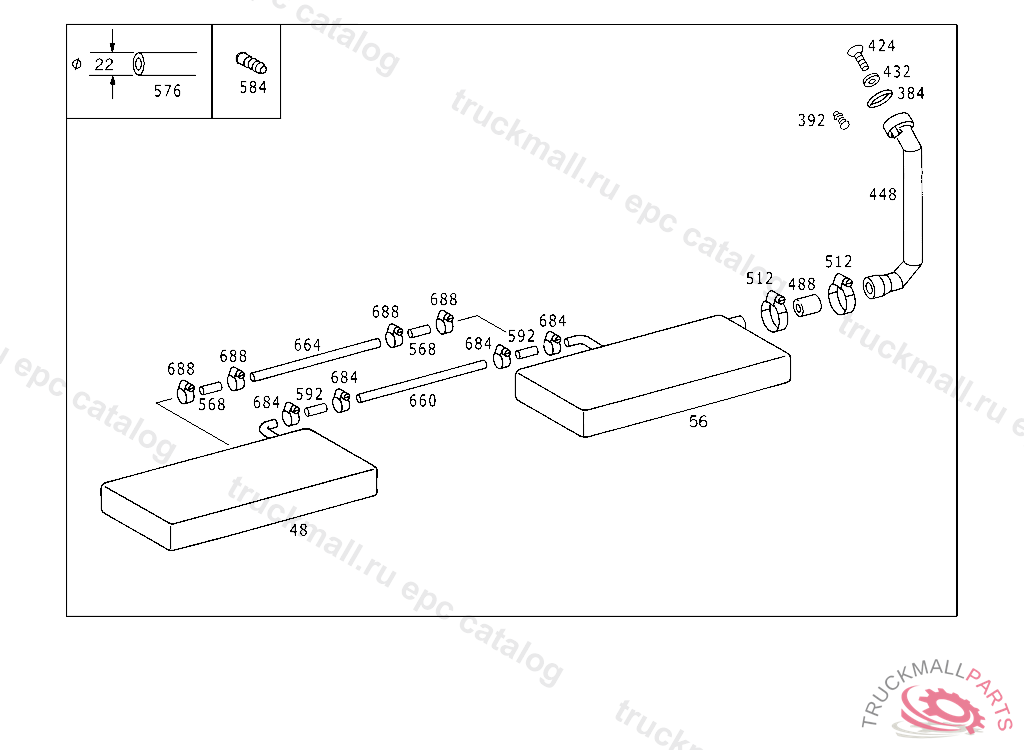

Поз.
Артикул
Описание
48
FUEL TANK , Replaced By: A6124701301
48
FUEL TANK LESS SENDER UNIT 175 L
56
FUEL TANK , Replaced By: A6124701201
56
FUEL TANK LESS SENDER UNIT 155 L
384
GASKET
384
GASKET
392
VALVE FUEL TANK
424
SCREW SWITCH TO WINDOW LEVEL GIRDER
432
WASHER FILLER NECK TO BRACKET
448
RISING PIPE (FILLER PIPE)
488
HOSE FILLER PIPE TO FUEL TANK, UP TO CHASSIS 005563,EXCEPT FOR 005452,005460,005468,005469,005476,005483,005484,005491,005492,005498,005499,005506,005513,005514, 005519,005520,005526-005528,005532-005536,005538-005543,005549-005551,005558,005559.
512
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
512
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
512
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
568
HOSE , Replaced By: A3574760926
568
HOSE , Replaced By: A3574760926
568
HOSE FROM FUEL TANK TO FUEL TANK
568
HOSE CONNECTION OF FUEL TANKS
576
HOSE , ORDER BY THE METER
584
CONNECTOR BLEEDING
592
HOSE FROM FUEL TANK TO ADDITIONAL TANK
592
HOSE PLASTIC PIPE
660
HOSE OVERFLOW D90 MM
664
LINE DE-AERATION D38 MM
664
BREATHER PIPE DE-AERATION D22/18 MM
684
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
684
CLAMP
688
CLAMP HOSE FASTENING 50-70X13 MM
999
SENDER UNITTO 612 470 32 01
999
LINE FROM FUEL TANK TO FUEL TANK
999
FUEL TANK
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 190 L,093523
999
HOSE
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET CABLE HARNESS THRU RIGHT SIDE MEMBER, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
FUEL TANK220 L,050329
999
FUEL TANK
999
FUEL TANK LESS SENDER UNIT 114 L
999
FUEL TANK
999
FUEL TANK (FUEL-OIL TANK),075828
999
FUEL TANK LESS SENDER UNIT 270 L,075828
999
FUEL TANK (FUEL-OIL TANK)
999
FUEL TANK265 L
999
FUEL TANK
999
FUEL TANK (FUEL-OIL TANK)
999
FILLER NECK
999
FUEL TANK
999
STRAP
999
FUEL TANK LESS SENDER UNIT 76 L
999
STRAP
999
INSULATION AERATION/DEAERATION
999
GASKETTO 612 470 22 01
999
GASKET EXTRACTION OPENING FOR FUEL OIL,075828
