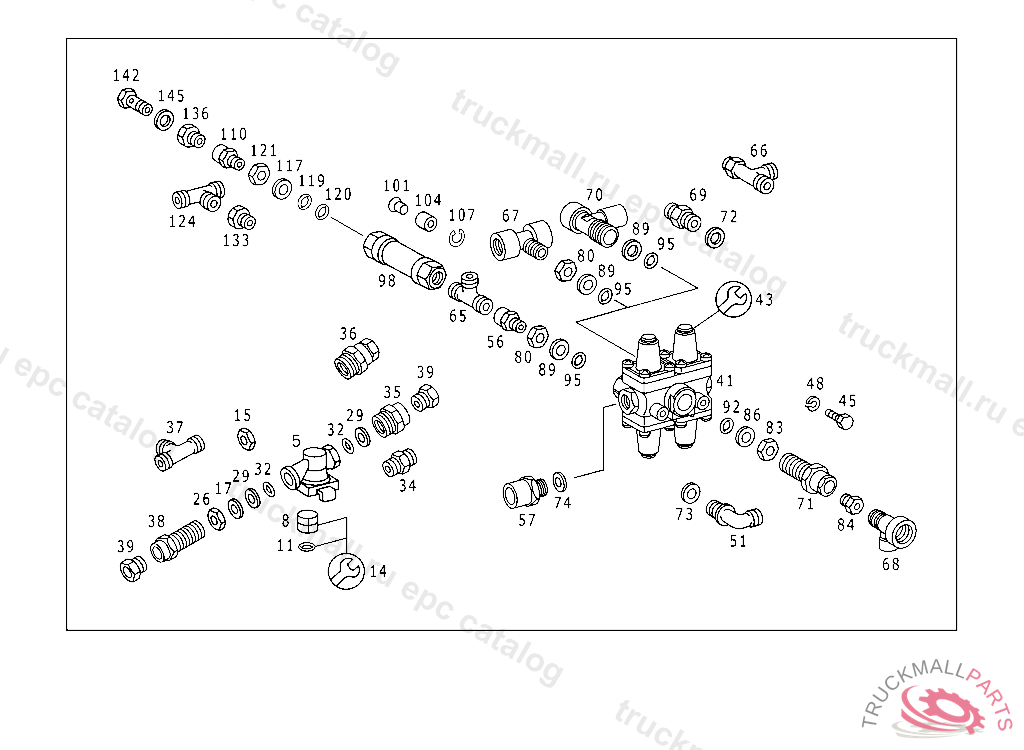

Поз.
Артикул
Описание
5
AIR CLEANER COMPRESSED AIR LINE
11
SEAL RINGWABCO 000 0,36.2X3.0 MM
11
SEAL RING39.2X3.0 MM
14
REPAIR KITWABCO 000 0
17
WASHER
35
FITTING LINE CONNECTION
39
SCREW. UNION SCREW LINE CONNECTION
41
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) "WABCO"
43
REPAIR KIT
45
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
SCREW , Replaced By: N304017008016
48
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
57
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
65
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
67
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
68
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
70
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
71
FITTING CHECK VALVE
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
83
NUT CHECK VALVE TO AIR RESERVOIR
84
SCREW. UNION SCREW LINE CONNECTION
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
89
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
O-RING CHECK VALVE TO AIR RESERVOIR
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
101
VALVE SEAT RINGWABCO,5 433388
104
BUSHINGWABCO,5 433388
107
LOCK RINGWABCO,5 433388
