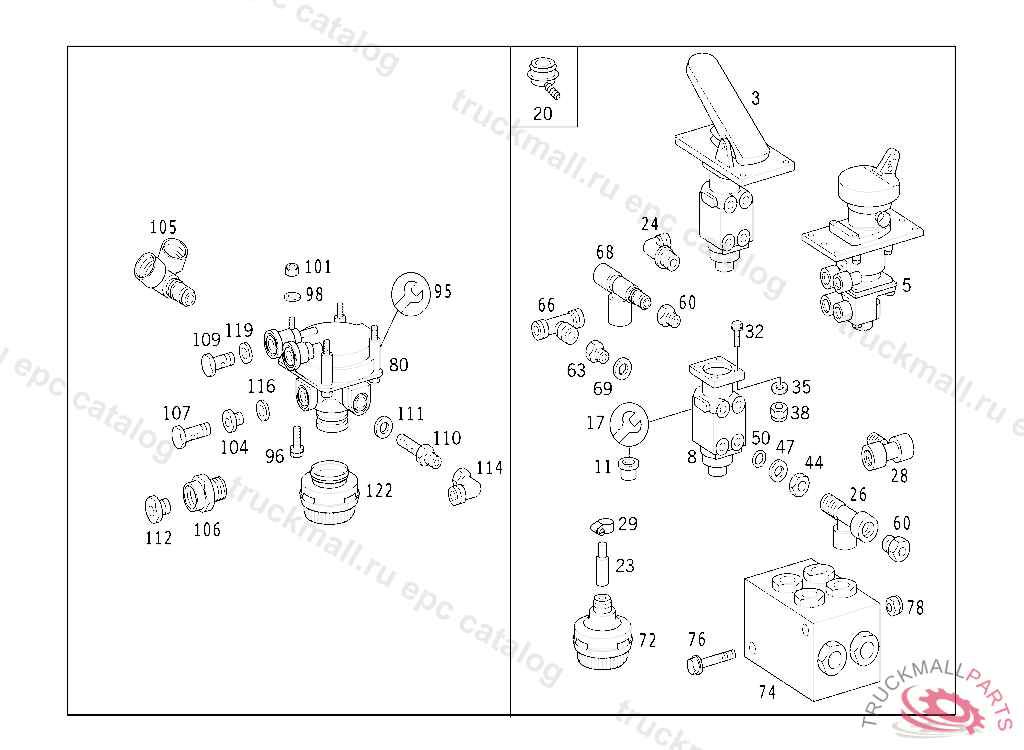

Поз.
Артикул
Описание
3
BRAKE VALVE
8
BRAKE VALVE
11
VALVEWABCO
17
REPAIR KIT SERVICE BRAKE VALVE WABCO
17
REPAIR KIT , Replaced By: A0004308106
20
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
23
HOSE CONNECTION OF COOLING WATER LINES
26
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
28
T-FITTING LINE CONNECTION
29
CLAMP25-40X13 MM
29
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
29
CLAMP
32
SCREW , Replaced By: N304017008040
32
SCREW BRACKET TO SIDE MEMBER
32
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
32
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
35
WASHER EXHAUST MUFFLER TO STRAP
35
WASHER , Replaced By: N000125008443
38
NUT BRACKET TO SIDE MEMBER
44
NUT CHECK VALVE TO AIR RESERVOIR
47
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
50
O-RING CHECK VALVE TO AIR RESERVOIR
60
SCREW. UNION SCREW LINE CONNECTION
68
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
72
MUFFLER TRAILER CONTROL VALVE
72
MUFFLER , Replaced By: A0004302370
74
DISTRIBUTOR FRONT AXLE BRAKE CIRCUIT
76
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
78
NUT , Replaced By: N913004008001
80
VALVE (RELAY VALVE),PARKING BRAKE WABCO,074622 ALSO INSTALLED ON 074550077358
80
VALVE (RELAY VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
80
VALVE FRONT AXLE II RELAY VALVE "WABCO"
95
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
95
REPAIR KIT RELAY VALVE 004 429 12 44,074622 ALSO INSTALLED ON 074550077358
96
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
96
SCREW , Replaced By: N304017008040
96
SCREW BRACKET TO SIDE MEMBER
96
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
98
WASHER , Replaced By: N009021008213
98
WASHER BRACKET TO LEFT SIDE MEMBER
98
WASHER BRACKET TO CAB REAR PANEL
101
NUT , Replaced By: N913004008001
104
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
105
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
106
FITTING LINE CONNECTION
107
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
109
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
110
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
111
SEAL RINGTO 006 997 00 72
112
SCREW. UNION SCREW LINE CONNECTION
112
SCREW. UNION SCREW LINE CONNECTION
112
SCREW. UNION SCREW , Replaced By: A0009973734
114
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
114
FITTING FROM PUMP TO CYLINDER
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
119
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
MUFFLER VALVE BLEEDING
122
MUFFLER DEHYDRATOR
122
MUFFLER , Replaced By: A0004302070
