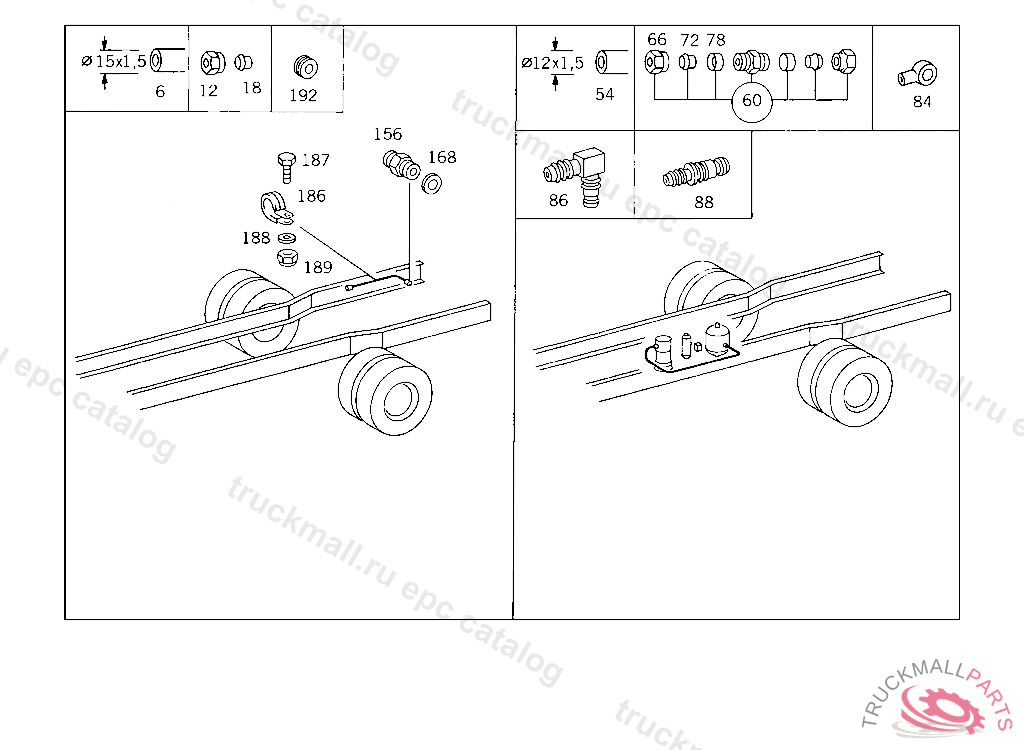

Поз.
Артикул
Описание
6
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
12
UNION NUT LINE CONNECTION
12
UNION NUT BUTT SCREW CONNECTION
18
GLAND LINE CONNECTION
54
HOSE , Replaced By: A0009872827
54
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
60
FITTING , Replaced By: A0029906171
60
FITTING (PARTS KIT),LINE RUPTURE
66
UNION NUT LINE CONNECTION, Replaced By: N000000006239
66
UNION NUT LINE CONNECTION
72
GLAND , Replaced By: A0019901967
72
SEAL CONE LINE CONNECTION
78
SLEEVE LINE CONNECTION
84
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
86
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
88
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
156
FITTING AIR RESERVOIR,CONNECTION: "13"
168
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
168
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
186
CLAMP LINE MOUNTING
187
SCREW CAB FLOOR COVERING M 6X25
188
WASHER , Replaced By: N009021006208
188
WASHER COMPRESSED AIR LINE TO BRACKET
189
NUT , Replaced By: N913004006001
189
NUT PUMP TO BRACKET
192
GROMMET REGULATOR FEED CABLE TO VENTILATION DUCT, 017121521009
999
AIR CLEANERBENDIX,TO 001 431 24 15
999
MUFFLER DEHYDRATOR
999
ANTI-FREEZE DEVICE
999
AIR DEHYDRATOR , Replaced By: A0014312115, +001A0004292139
999
AIR DEHYDRATOR
999
HEATERTO 000 431 99 15
999
VALVE (OVERFLOW VALVE) 1.5BAR
999
SEAL RING AT REAR AXLE,D 248571
999
PRESSURE REGULATOR (PRESSURE CONTROL VALVE) WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (PRESSURE LIMIT VALVE) WABCO
999
VALVE , Replaced By: A0004322807, +004A6742410050, +001A3805402281, +004N000931008244
999
SEAL RING , Replaced By: A0179978148
999
SEAL RINGKNORR
999
RESERVOIR , Replaced By: A0034320201
999
COVERING
999
COVERING AIR DEHYDRATOR
999
BRACKET SOLENOID VALVE, NOT USED
999
SUPPORT APPARATUS
999
MUFFLER PRESSURE REGULATOR,950273
999
RESERVOIR ANTI-FREEZE
999
SUPPORT APPARATUS SUPPORT,REAR
999
BRACKET PRESSURE REGULATOR,073744 MIT MB-AUFBAU073791 OHNE MB-AUFBAU
999
BRACKET AIR RESERVOIR 8 L, FROM IDENT NO. 080959 WITH MERCEDES-BENZ BODY FROM IDENT NO. 080935 LESS MERCEDES-BENZ BODY ALSO INSTALLED ON 079273,079335,080078,080091,080798,080804,080805,080836,080838,080849.
