Поз.
Артикул
Описание
5

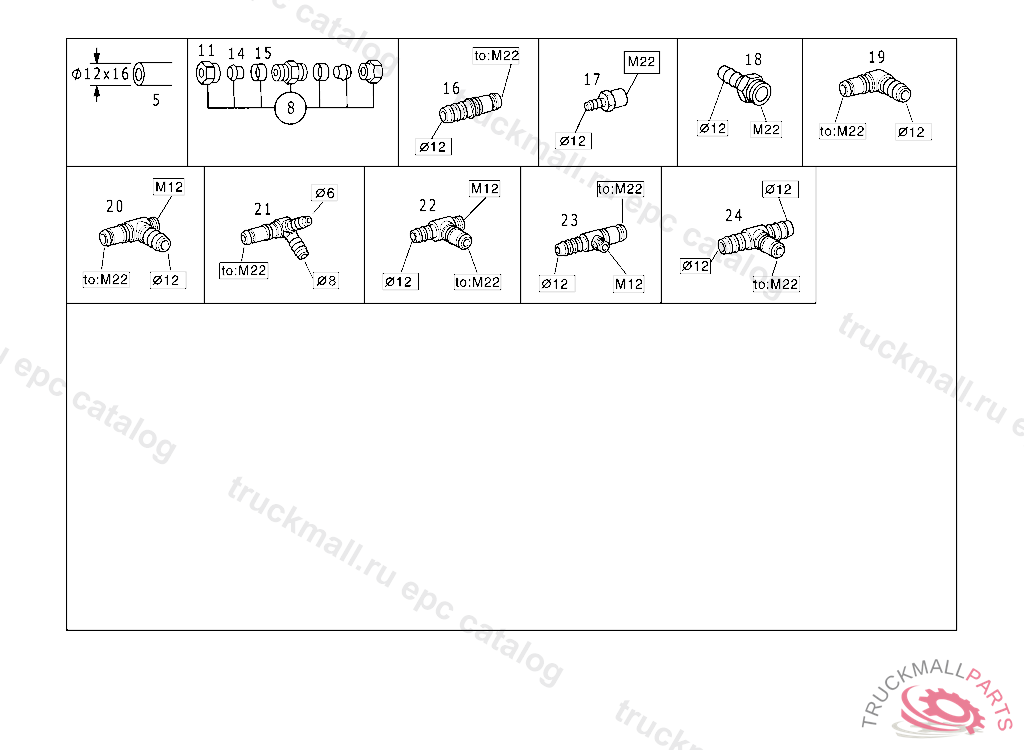

PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872927
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT
14
GLAND
15
SLEEVE
16
CONNECTOR PRESSURE REGULATOR BREATHING
17
CONNECTOR HOSE WIDTH, / I.D., 6 MM
18
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
19
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM, VOSS 230
20
ELBOW FITTING. T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 12 MM, VOSS 230
21
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
22
ELBOW FITTING HOSE WIDTH, 10 MM,TO M 22
23
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 12 MM
24
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM / 12 MM
