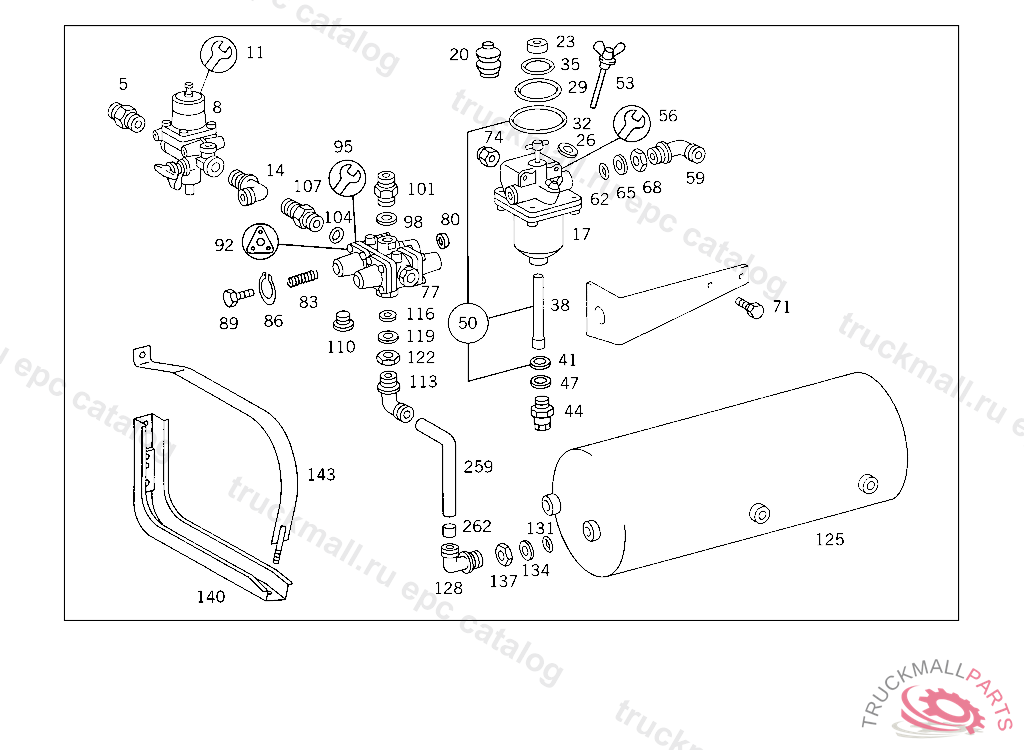

Поз.
Артикул
Описание
5
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
5
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
8
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
8
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
8
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
8
PRESSURE REGULATOR , Replaced By: A0024315906
8
PRESSURE REGULATOR , Replaced By: A0024316006
8
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
8
PRESSURE REGULATOR , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 4 208908-5 148812, Replaced By: A0024315906
8
PRESSURE REGULATOR"WABCO",486597
8
PRESSURE REGULATORBOSCH
8
PRESSURE REGULATORWABCO
11
REPAIR KIT , Replaced By: A0004301407
11
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
11
REPAIR KITGRAU,5 148812
11
REPAIR KIT VALVE KIT WABCO,5 148812
11
REPAIR KIT , Replaced By: A0004301107
11
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
11
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
11
REPAIR KIT PRESSURE REGULATOR WABCO
11
REPAIR KIT VALVE KIT WABCO,5 148812
11
REPAIR KIT DIAPHRAGM PART BOSCH,209
11
REPAIR KIT PRESSURE REGULATOR WABCO
11
REPAIR KIT SEAL RING BOSCH,209
11
REPAIR KIT SEAL RING BOSCH,209
14
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
17
ANTI-FREEZE DEVICE , Replaced By: A0004312615
17
ANTI-FREEZE DEVICE , Replaced By: A0004312615
17
ANTI-FREEZE DEVICE
20
PROTECTIVE CAPWEST 432 199 015 0,030 0
20
PROTECTIVE CAPWEST 432 199 015 0,030 0
23
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
26
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
29
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
32
SEALING CORD
35
SEAL RINGTO 001 431 37 05,4 375193
38
WICK , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
41
SEAL RING FUEL LINE TO FEED PUMP
44
VALVE DRAIN, Replaced By: A0004322407
44
VALVE DRAIN, Replaced By: A0004322107
44
VALVE. DRAIN VALVE DRAIN
47
WASHER ANTI-FREEZE DEVICE DRAIN
50
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
50
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
53
SCREW PLUG WITH DIPSTICK
56
REPAIR KITTO 000 431 21 15,WEST 432 199 010 0
56
REPAIR KITWEST 432 199 015 0,432 199 030 0
56
REPAIR KITWEST 432 199 015 0,432 199 030 0
56
REPAIR KITWEST 432 199 015 0,432 199 030 0
59
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
62
O-RING CHECK VALVE TO AIR RESERVOIR
65
THRUST RING CHECK VALVE TO AIR RESERVOIR
65
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
68
NUT CHECK VALVE TO AIR RESERVOIR
71
SCREW REAR AXLE REGULATING SOLENOID VALVE
74
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
74
NUT , Replaced By: N913004008001
77
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
77
VALVE , Replaced By: A0024310706
77
VALVE , Replaced By: A0024310706
80
CUPTO 002 431 04 06,BOSCH
83
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
83
SPRING , Replaced By: A0009935205
86
LOCK RING52X2 MM
86
LOCK RING52X2 MM
89
SCREW CAB FLOOR COVERING M 6X25
92
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
92
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
92
GASKET KIT SEAL RING TO 001 431 58 06,BOSCH
95
REPAIR KIT BOOT TO 001 431 38 06,BOSCH, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
95
REPAIR KIT SEAL RING TO 001 431 38 06,BOSCH, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
95
REPAIR KIT BOOT TO 001 431 15 06,BOSCH
98
SEAL RING LINE CONNECTION
101
DOUBLE FITTING AT BRAKE LINE COUPLING
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
107
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
110
SCREW PLUG
113
FITTING ,4 667210
113
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
113
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
116
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
SEAL RING
119
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
122
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
125
RESERVOIR FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE
128
FITTING , Replaced By: A0009907771
128
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
131
O-RING CHECK VALVE TO AIR RESERVOIR
131
O-RING CHECK VALVE TO AIR RESERVOIR
134
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
134
THRUST RING CHECK VALVE TO AIR RESERVOIR
134
THRUST RING CHECK VALVE TO AIR RESERVOIR
137
NUT CHECK VALVE TO AIR RESERVOIR
137
NUT CHECK VALVE TO AIR RESERVOIR
137
NUT CHECK VALVE TO AIR RESERVOIR
140
CONSOLE AIR RESERVOIR TO SUPPORT
143
STRAP AIR RESERVOIR TO CONSOLE
259
HOSE , Replaced By: A0009872827
259
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
259
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
262
BUSHING , Replaced By: N915062009000
262
SLEEVE LINE CONNECTION
999
VALVE , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SCREW PLUG
999
BRACKET
999
BRACKET ,4 282707
999
BRACKET
999
PROTECTIVE PLATE
999
BRACKET
999
COVERING
999
BRACKET
999
BRACKET ,9867928 000001
999
CLAMP , NOT USED
999
RESERVOIR , Replaced By: A3454308205
999
PLATE CONSOLE TO SIDE MEMBER
999
BASE AIR RESERVOIR TO CONSOLE
