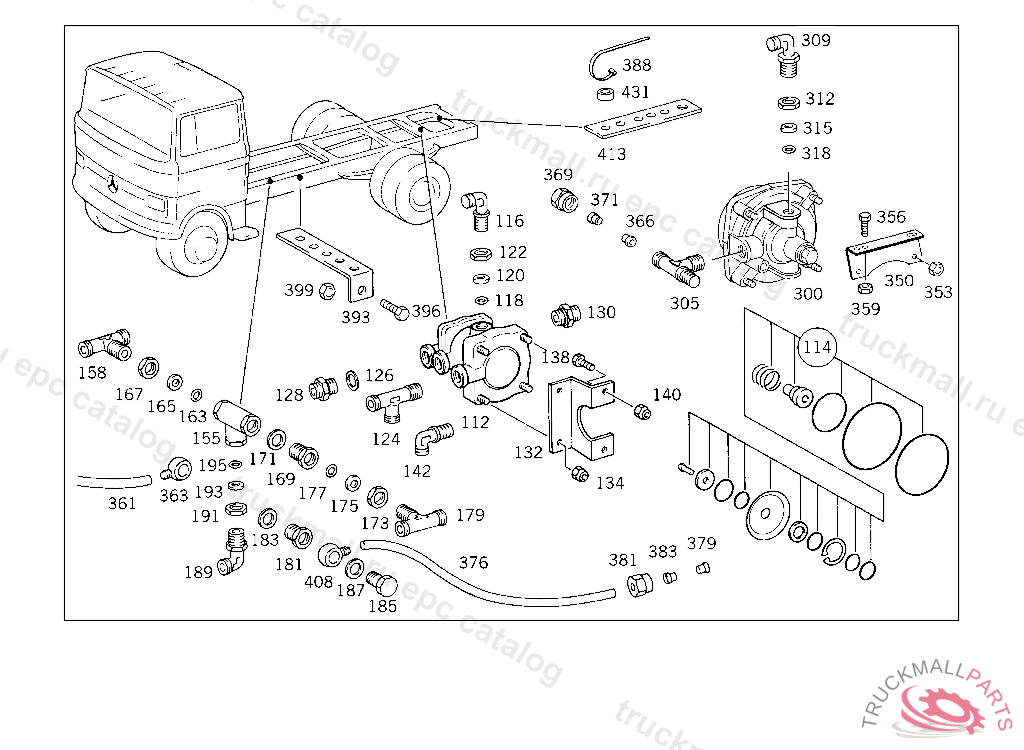

Поз.
Артикул
Описание
112
BRAKE VALVE , Replaced By: A0014313705
112
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313505
112
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
112
BRAKE VALVE TRAILER CONTROL VALVE BOSCH,4 375193 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
114
REPAIR KITTO 001 431 37 05,4 375193
114
REPAIR KIT , Replaced By: A0024306581
116
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
116
FITTING ,4 667210
118
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
120
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
124
T-FITTING SHIFT VALVE,CONNECTION: "11", 415 5 014668 416 5 000515 417 4 972023
126
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
FITTING DELIVERY LINE TO PUMP
130
FITTING RELAY VALVE,CONNECTION: "40",5 359430
130
FITTING , Replaced By: A0029979572
132
BRACKET TRAILER BRAKE VALVE TO FRAME, UP TO CHASSIS 4 282707,AND FROM CHASSIS 8 000001
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
NUT , Replaced By: N913004008001
138
SCREW BRACKET TO SIDE MEMBER
138
SCREW , Replaced By: N304017010002
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
142
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
155
VALVE TWO-WAY VOSS
155
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
158
T-FITTING (SAFETY VALVE)
163
O-RING CHECK VALVE TO AIR RESERVOIR
165
THRUST RING CHECK VALVE TO AIR RESERVOIR
165
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
167
NUT CHECK VALVE TO AIR RESERVOIR
169
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
171
SEAL RING LINE CONNECTION
173
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
175
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
175
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
177
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
179
T-FITTING TWO-WAY VALVE,CONNECTION: "12",4 282708 314.0.2.ALL,316.0.2.ALL,318.051-054 UP TO CHASSIS 4 383113,318.056-599 UP TO CHASSIS 4 373946 EXCEPT FOR FOOTN.9
181
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
181
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
183
THRUST RING CHECK VALVE TO AIR RESERVOIR
183
THRUST RING CHECK VALVE TO AIR RESERVOIR
183
THRUST RING CHECK VALVE TO AIR RESERVOIR
183
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
185
HOLLOW SCREW LINE TO OIL RADIATOR
187
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
187
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
187
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
189
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
189
ELBOW FITTING , Replaced By: A0004294638
191
NUT CHECK VALVE TO AIR RESERVOIR
193
THRUST RING CHECK VALVE TO AIR RESERVOIR
193
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
195
O-RING CHECK VALVE TO AIR RESERVOIR
300
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
305
FITTING LINE CONNECTION TO AIR RESERVOIR,4 314180
309
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
309
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
312
NUT CHECK VALVE TO AIR RESERVOIR
315
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
315
THRUST RING CHECK VALVE TO AIR RESERVOIR
318
O-RING CHECK VALVE TO AIR RESERVOIR
350
BRACKET TRAILER CONTROL VALVE, 314.0.2.ALL,316.0.2.ALL,318.051-054 FROM CHASSIS 4 383114,318.056-599 FROM CHASSIS 4 373947 ALSO INSTALLED ON FOOTN.9
353
NUT , Replaced By: N910113010000
353
NUT STRAP TO BRACKET
356
SCREW , Replaced By: N308676012012
356
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
359
NUT , Replaced By: N910113010000
359
NUT STRAP TO BRACKET
361
HOSE , Replaced By: A0009872827
361
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
363
BANJO UNION , Replaced By: N915052009009
363
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
366
BUSHING , Replaced By: N915062009000
366
SLEEVE LINE CONNECTION
369
UNION NUT LINE CONNECTION, Replaced By: N000000006239
369
UNION NUT LINE CONNECTION
371
GLAND , Replaced By: A0019901967
371
SEAL CONE LINE CONNECTION
376
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
379
SLEEVE , Replaced By: N915062006000
379
SLEEVE LINE CONNECTION
381
UNION NUT LINE CONNECTION
383
GLAND LINE CONNECTION
388
LOOM TIE LINE MOUNTING
393
BRACKET , Replaced By: A3604292940
393
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
396
SCREW , Replaced By: N304017008021
396
SCREW PIPE CLAMP
399
NUT , Replaced By: N913004008001
399
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
408
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
413
BRACKET , Replaced By: A3853530440
413
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
431
WASHER , Replaced By: A3609902340
431
WASHER BRACKET TO LEFT SIDE MEMBER
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
NUT PLATFORM MOUNTING
999
NUT BRACKET TO SIDE MEMBER
999
FITTING BRAKE LINE COUPLING TO BRACKET
999
FITTING , Replaced By: A0019902771
999
GROOVED PINTO 000 429 51 30,4 434235
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3604292940
999
GROMMET LINE THRU LEFT SIDE MEMBER
999
BRACKET ,4 282708 314.0.2 ALL,316.0.2 ALL,318.051-054 UP TO CHASSIS 4 383113,318.056-599 UP TO CHASSIS 4 373946 EXCEPT FOR FOOTN.16
999
BRACKET TRAILER CONTROL VALVE,4 282707
999
BRACKET TRAILER CONTROL VALVE TO SIDE MEMBER,4 282707
999
SUPPORT RIGHT AIR RESERVOIR
999
BRACKET
999
BRACKET
999
SEAL RINGTO 000 429 16 30
999
SEAL RING"GRAU"
999
BALLTO 003 429 22 44
999
REPAIR KITTO 001 431 48 05,4 375193
999
REPAIR KITWABCO
999
REPAIR KITTO 000 429 63 30
999
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
999
VALVE (OVERFLOW VALVE) GRAU,5 116581
999
VALVE (OVERFLOW VALVE) BOSCH,5 116581
999
SEAL RINGTO 000 429 16 30
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
T-FITTING INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
999
REPAIR KIT , Replaced By: A0004304606
999
REPAIR KITTO 001 431 34 05,4 375193
999
REPAIR KIT , TO 000 429 49 304 434235
999
REPAIR KITTO 000 429 37 30
999
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
999
PLUG
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
999
T-FITTING , Replaced By: A0019901070
999
PISTONVOSS
999
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
DIAPHRAGM , Replaced By: A0004313186
999
BRAKE VALVE SEAL RING TO 001 431 18 05,4 412020
999
REPAIR KIT"KNORR"
999
SEAL RING , Replaced By: A0004292184
999
SEAL RING"WABCO"
999
COVERWABCO
999
COVER"WABCO", NOT USED
999
VALVE BODYTO 002 429 95 44
999
COVERTO 000 429 48 30
999
COVERTO 000 429 51 30,4 434235
999
COVERTO 000 429 49 30
999
DIAPHRAGM
999
GASKETTO 003 429 22 44
999
PIN
