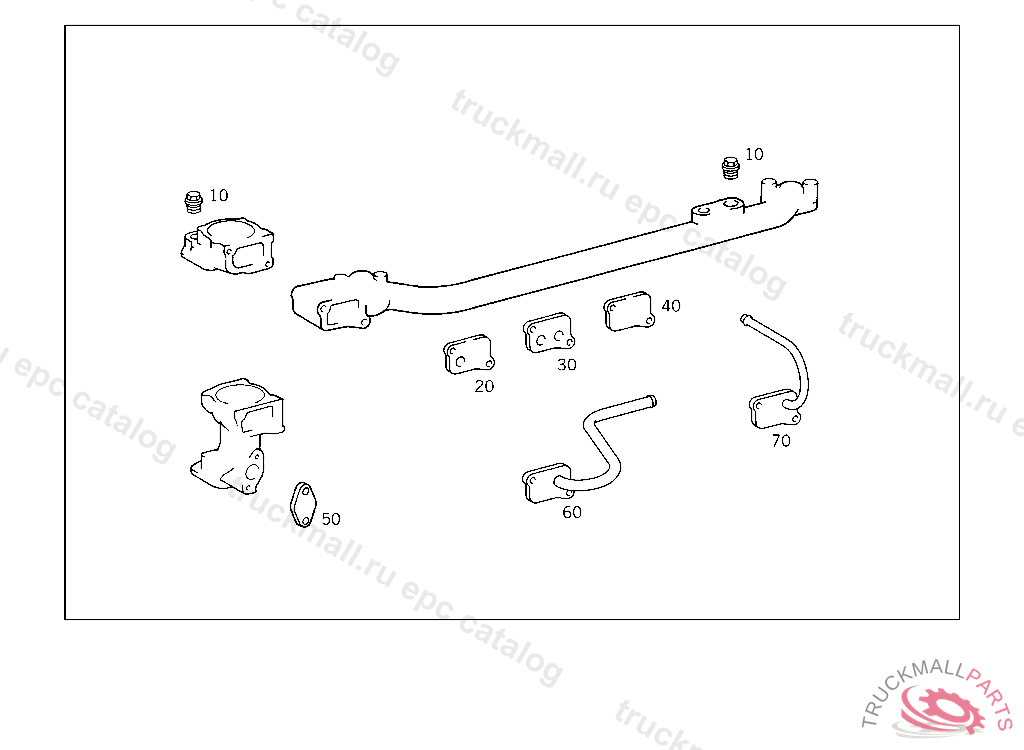

Поз.
Артикул
Описание
10
SCREW PLUG
20
FLANGE HEATING FEED
30
FLANGE , 352 849318 353 849318 360 109917, Replaced By: A3522035439, +002N000125008418, +002N000931008322
30
FLANGE
40
FLANGE , 352 849318 353 849318 360 109917, Replaced By: A3522034239, +002N000125008418, +002N000931008322
40
FLANGE HEATING FEED, 352 849319 353 849319 360 109918
50
FLANGE HEATING CONNECTION LOCK,5 301949
50
FLANGE (BLIND FLANGE)
60
PIPE ELBOW ,509540 352 849318 353 849318 360 109917, Replaced By: A3522003318, +002N000125008418, +002N000931008322
60
PIPE ELBOW BREATHING, 352 849319 353 849319 360 109918
60
PIPE ELBOW ,509539
70
BREATHER LINE , 352 849319 353 849319 360 109918
70
BREATHER LINE , 352 849318 353 849318 360 109917, Replaced By: A3522000558, +002N000125008418, +002N000931008322
70
BREATHER LINE ,672375 352 849318 353 849318 360 109917, Replaced By: A3522000658, +002N000125008418, +002N000931008322
70
BREATHER LINE , 352 849319 353 849319 360 109918
70
BREATHER LINE ,405606672374
999
CLAMP , Replaced By: A1109950401
999
LINE HEATING RETURN
999
PIPE ELBOW
999
PIPE ELBOW
999
PIPE ELBOW ,405605
999
PIPE ELBOW
999
PIPE ELBOW
999
BRACKET HEATING WATER RETURN FLOW
999
CONNECTOR AT ENGINE,591819
999
CONNECTOR
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW STRAP TO BRACKET
