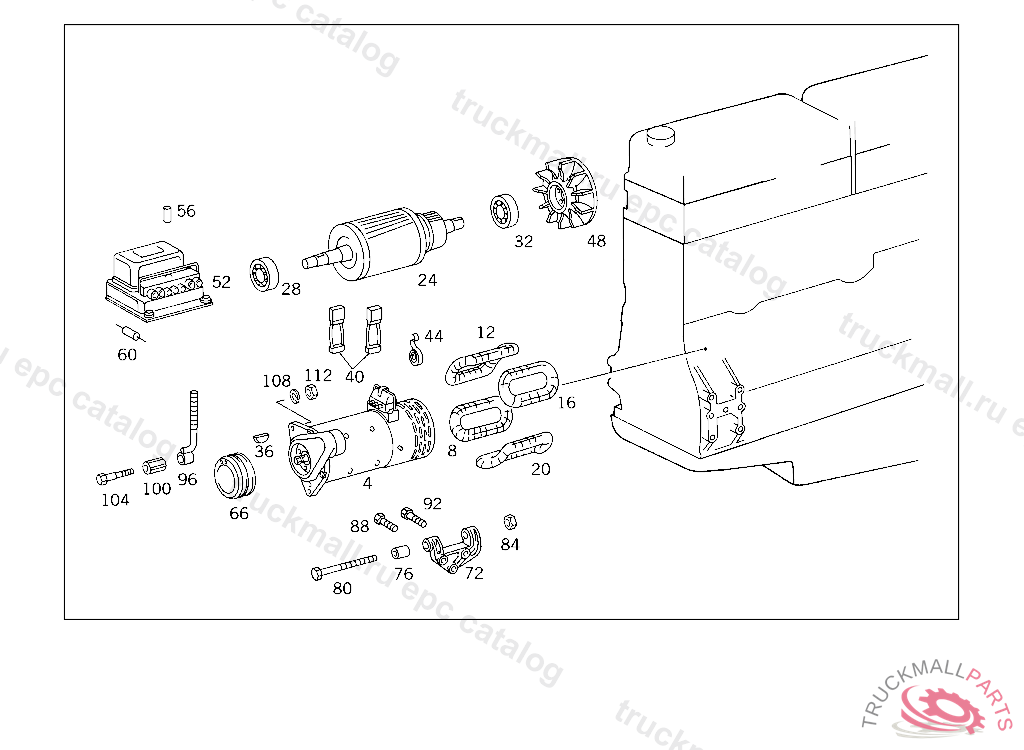

Поз.
Артикул
Описание
4
ALTERNATOR *** 24 V/38 A
8
COIL
12
COIL
16
COIL
20
COIL
24
ARMATURE
28
GROOVED BALL BEARING
32
GROOVED BALL BEARING
36
WOODRUFF KEY POWER STEERING PUMP
40
CARBON BRUSH SET ,9500212
44
SPRING
44
SPRINGTO 004 154 75 02
44
SPRING , Replaced By: A0001541193
48
FAN
52
REGULATOR AND CUT-OUT
56
FUSE50 A
60
RESISTOR
66
PULLEY
72
BRACKET ALTERNATOR
76
BUSHING
80
SCREW STRAP TO BRACKET
84
NUT AIR CLEANER ELEMENT
88
SCREW RELEASE LEVER TO SHAFT
88
SCREW , Replaced By: N000933012102
88
SCREW , Replaced By: N304017012018
92
SCREW MOUNTING PLATE TO SUBSTRUCTURE M 12X40, FIXTURE A/C COMPRESSOR MAKE KONVEKTA
92
SCREW
96
CLAMPING BOLT
100
BUSHING
100
BUSHING
104
SCREW
108
WASHER RADIATOR TO RUBBER MOUNTING
112
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SPRING , Replaced By: A0001541493
